Mechanical

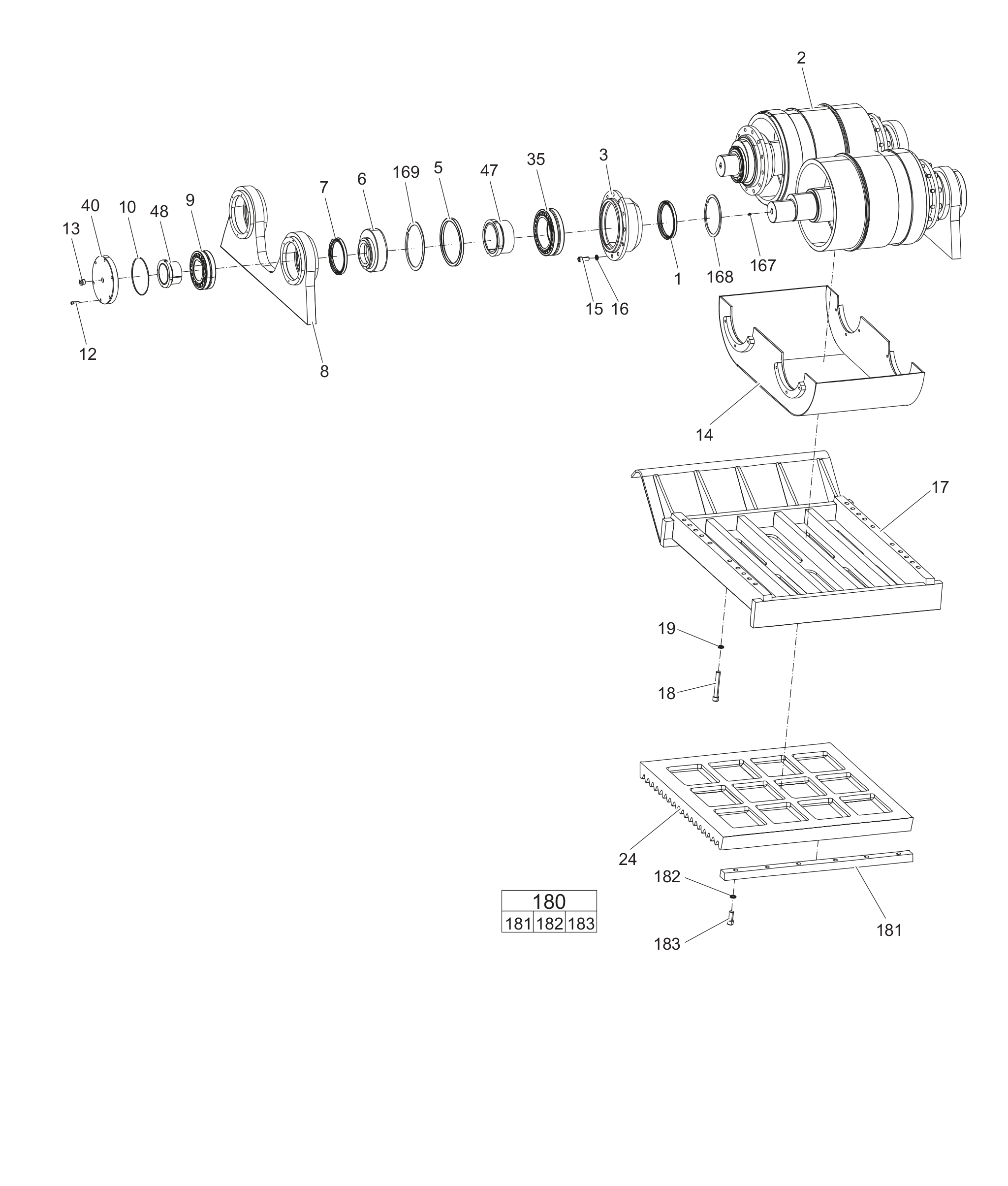

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118441 | Seal | 4 | ||||
| 3363119886 | Drive shaft | 2 | ||||
| 3363126264 | Flange | 4 | ||||
| 3363118442 | Seal | 4 | ||||
| 3363118446 | Seal support | 4 | ||||
| 3363118443 | Seal | 4 | ||||
| 3363119893 | Bridge part | 2 | ||||
| 3363119896 | Bearing | 4 | ||||
| 3363118449 | Seal | 4 | ||||
| 0211132700 | CAP SCREW | 24 | ||||
| 3363118394 | Allen plug | 4 | ||||
| 3363119898 | Transmission housing | 1 | ||||
| 3363118444 | Allen screw | 40 | ||||
| 3361333703 | PAIR OF LOCK WASHERS | 40 | ||||
| 3363119925 | Mobile support | 1 | ||||
| 3363118440 | Allen screw | 20 | ||||
| 3361850748 | PAIR OF LOCK WASHERS | 20 | ||||
| 3363119937 | Jaw | 1 | cross | |||
| 3363118460 | Bearing | 4 | ||||
| 3363119938 | Cover | 4 | ||||
| 3363119939 | Sleeve | 4 | ||||
| 3363119940 | Sleeve | 4 | ||||
| 3363126834 | Grease nipple | 4 | ||||
| 3363126258 | Circlip | 4 | ||||
| 3363126263 | Circlip | 4 | ||||
| 3363119930 | Wedge complete | 1 | ||||
| 3363119933 | Wedge | 1 | ||||
| 3361850748 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363094902 | ALLEN SCREW | 6 |
