Mechanical

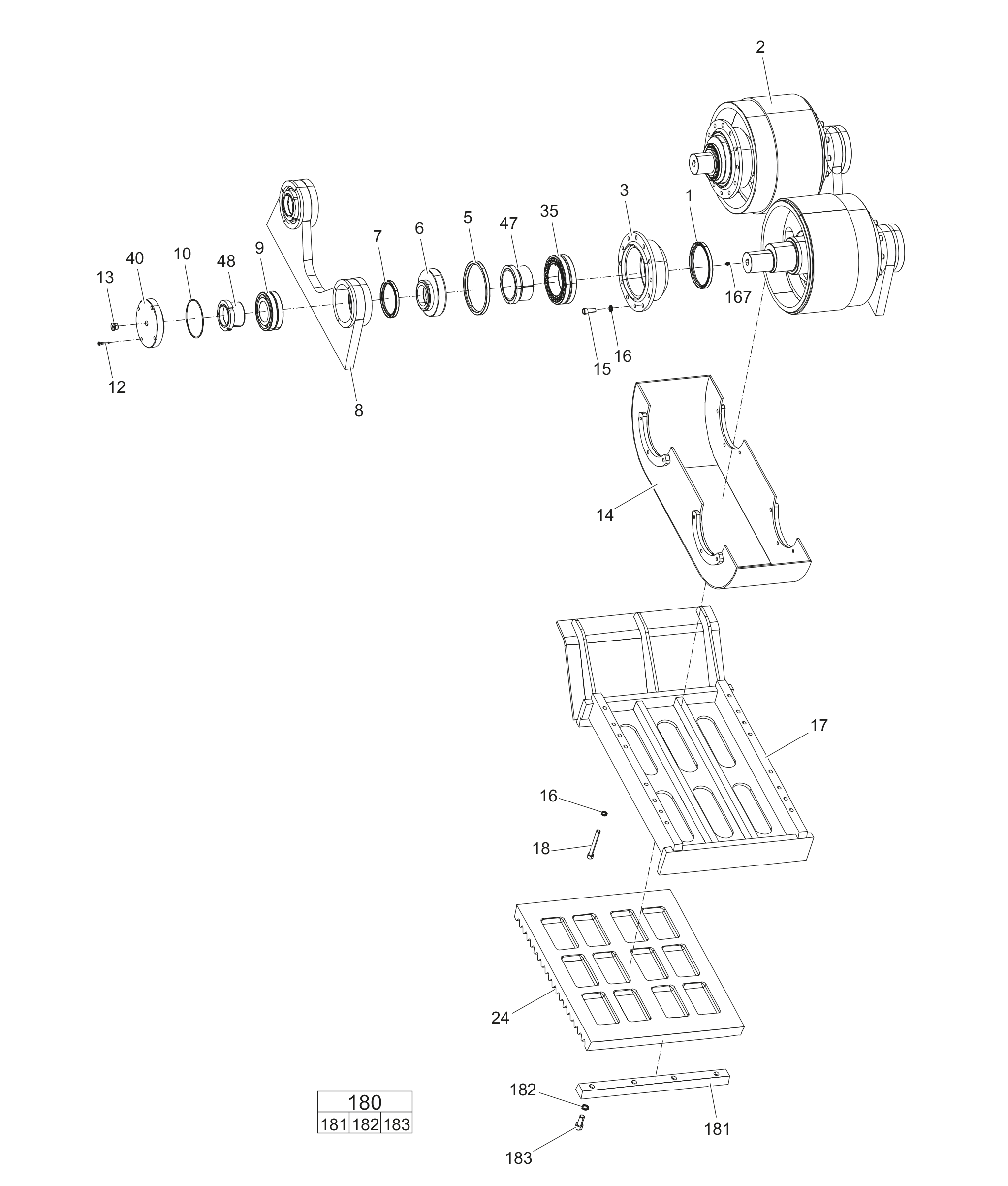

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118383 | Seal | 4 | ||||
| 3363118387 | Drive shaft | 2 | ||||
| 3363118388 | Flange | 4 | ||||
| 3363118384 | Seal | 4 | ||||
| 3363118390 | Seal support | 4 | ||||
| 3363118385 | Seal | 4 | ||||
| 3363118391 | Bridge part | 2 | ||||
| 3363118392 | Bearing | 4 | ||||
| 3363118393 | Seal | 4 | ||||
| 0211132700 | CAP SCREW | 16 | ||||
| 3363118394 | Allen plug | 4 | ||||
| 3363118395 | Transmission housing | 1 | ||||
| 3363118382 | Allen screw | 40 | ||||
| 3361333703 | PAIR OF LOCK WASHERS | 56 | ||||
| 3363118396 | Mobile support | 1 | ||||
| 3363118419 | Allen screw | 16 | ||||
| 3363118436 | Jaw | 1 | cross | |||
| 3363118406 | Bearing | 4 | ||||
| 3363118410 | Cover | 4 | ||||
| 3363118413 | Sleeve | 4 | ||||
| 3363118414 | Sleeve | 4 | ||||
| 3363126834 | Grease nipple | 4 | ||||
| 3363118374 | Wedge complete | 1 | ||||
| 3363118398 | Wedge | 1 | ||||
| 3361850748 | PAIR OF LOCK WASHERS | 4 | ||||
| 3363094902 | ALLEN SCREW | 4 |
