Mechanical
Spare Parts

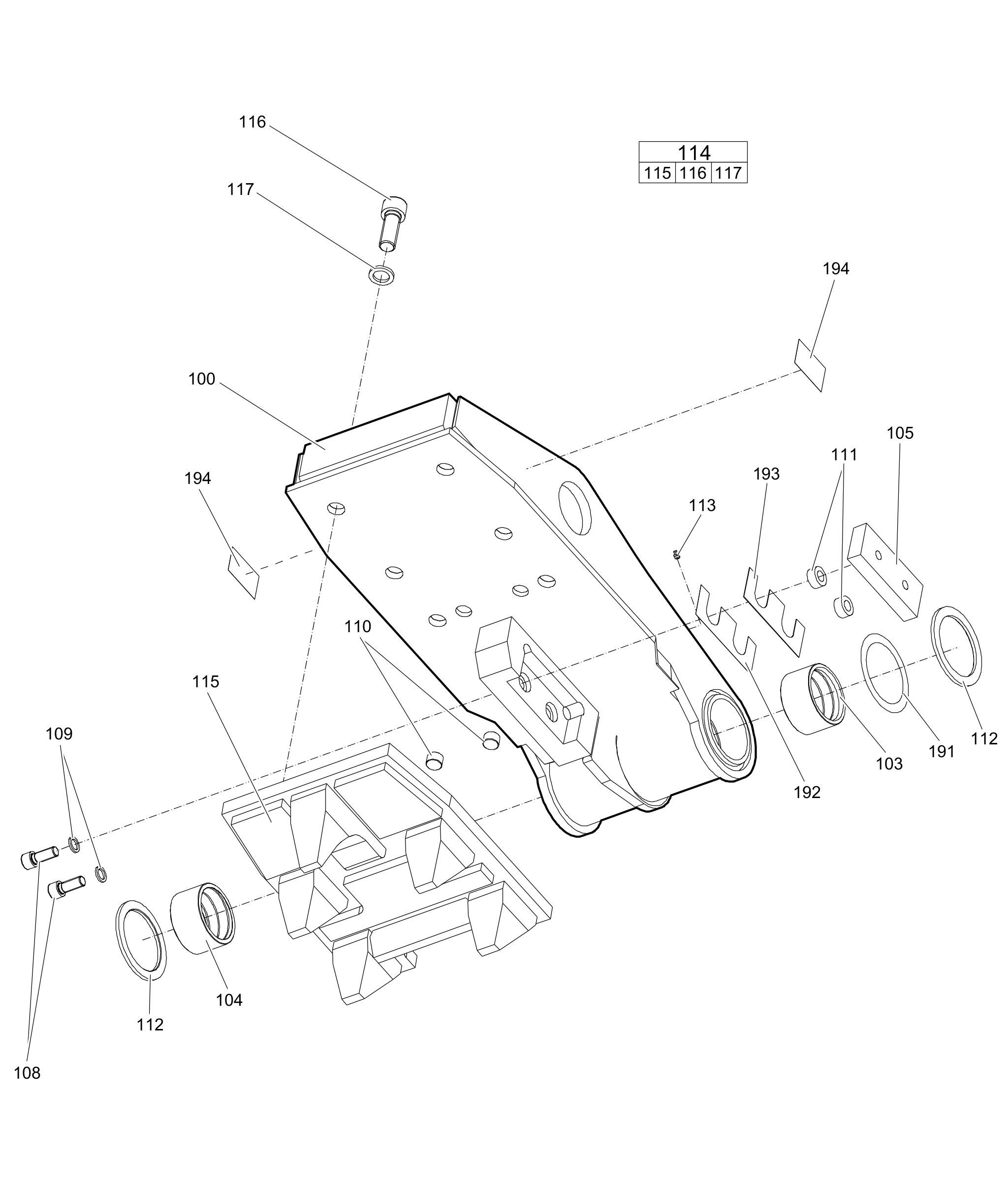

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363112357 | Pulverizer jaw complete | 1 | with parts item 102 - 113B | 1.0 mm (0.04 in.) thick, as requiredC | German/English | |||
| 3363088319 | BEARING BUSH | 1 | ||||
| 3363088321 | BEARING BUSH | 1 | ||||
| 3363086455 | CUTTER BLADE | 1 | ||||
| 3360106092 | ALLEN SCREW | 2 | ||||
| 3361850748 | LOCK WASHER | 2 | ||||
| 3363086441 | LOCK PIN | 2 | ||||
| 3363035107 | LOCK RING | 2 | ||||
| 3363085851 | DISK | 2 | ||||
| 3360209834 | GREASE NIPPLE | 1 | ||||
| 3363119587 | Tooth plate complete | 1 | ||||
| - | Tooth plate | 1 | ||||
| 3360026882 | Allen screw | 6 | ||||
| 3361850747 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363085881 | Spacer ring | 2 | ||||
| 3363092403 | SHIM | 1 | ||||
| 3363091026 | SHIM | 1 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 |
