Mechanical
Spare Parts

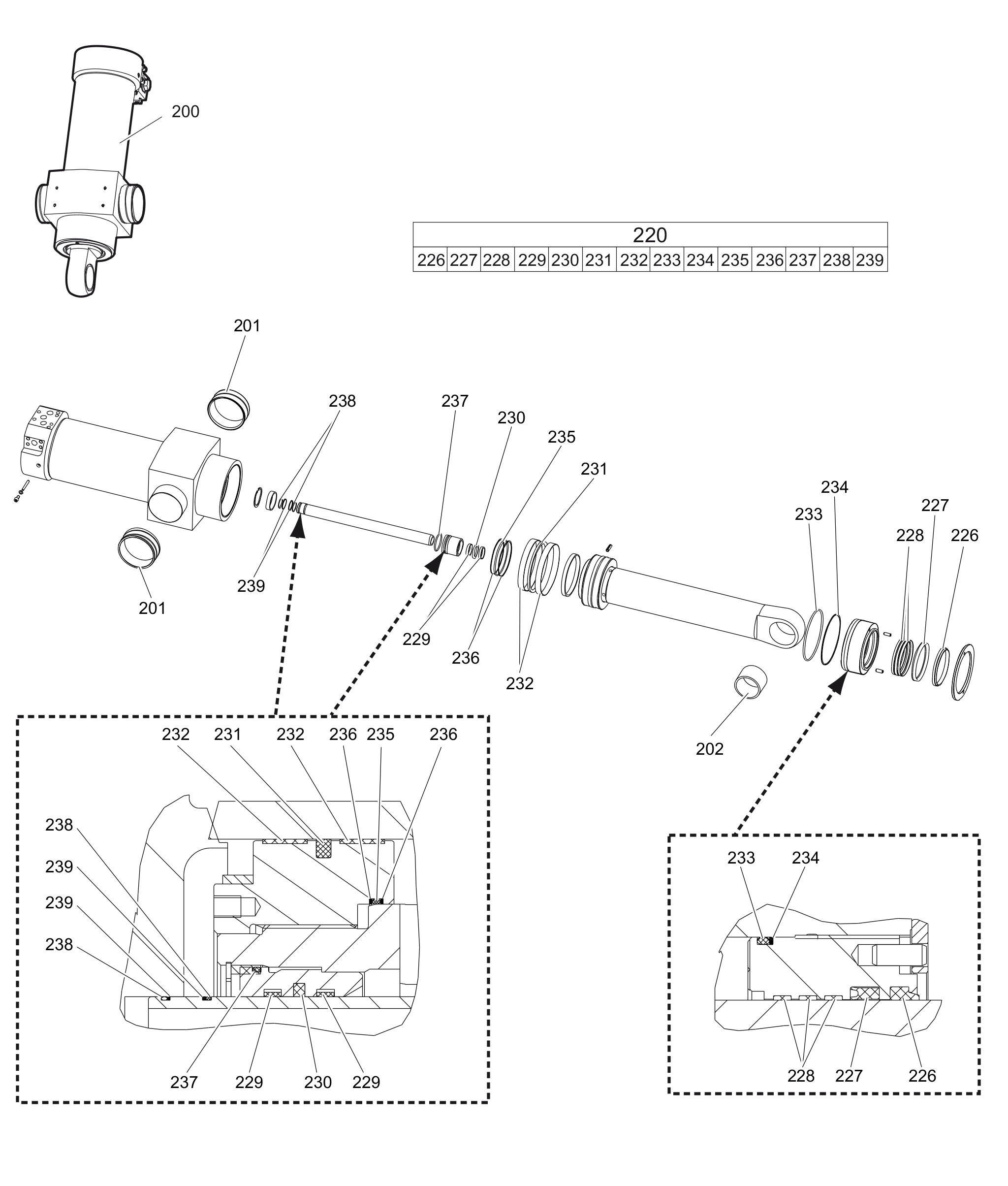

Hydraulic cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363112359 | HYDRAULIC CYLINDER | 1 | with parts item 202 - 239 | |||
| 3363086477 | CLAMPING BUSH | 2 | ||||
| 3363112446 | CLAMPING BUSH | 1 | ||||
| 3363126018 | SEAL KIT (Hydraulic cylinder) | 1 | ||||
| 3363091944 | WIPER | 1 | ||||
| 3363091944 | WIPER | 1 | ||||
| 3363091945 | SEAL | 1 | ||||
| 3363091945 | SEAL | 1 | ||||
| 3363091946 | GUIDE RING | 3 | ||||
| 3363091946 | GUIDE RING | 3 | ||||
| 3363112309 | GUIDE RING | 2 | ||||
| 3363112309 | GUIDE RING | 2 | ||||
| 3363126016 | SEAL | 1 | ||||
| 3363126016 | SEAL | 1 | ||||
| 3363126017 | SEAL | 1 | ||||
| 3363126017 | SEAL | 1 | ||||
| 3363112310 | GUIDE RING | 2 | ||||
| 3363112310 | GUIDE RING | 2 | ||||
| 3363091947 | O-RING | 1 | ||||
| 3363091947 | O-RING | 1 | ||||
| 3363091948 | BACK-UP RING | 1 | ||||
| 3363091948 | BACK-UP RING | 1 | ||||
| 3363112311 | O-RING | 1 | ||||
| 3363112311 | O-RING | 1 | ||||
| 3363091949 | BACK-UP RING | 2 | ||||
| 3363091949 | BACK-UP RING | 2 | ||||
| 3363098702 | O-RING | 1 | ||||
| 3363098702 | O-RING | 1 | ||||
| 3363112312 | O-RING | 2 | ||||
| 3363112312 | O-RING | 2 | ||||
| 3363112313 | BACK-UP RING | 2 | ||||
| 3363112313 | BACK-UP RING | 2 |
