Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|

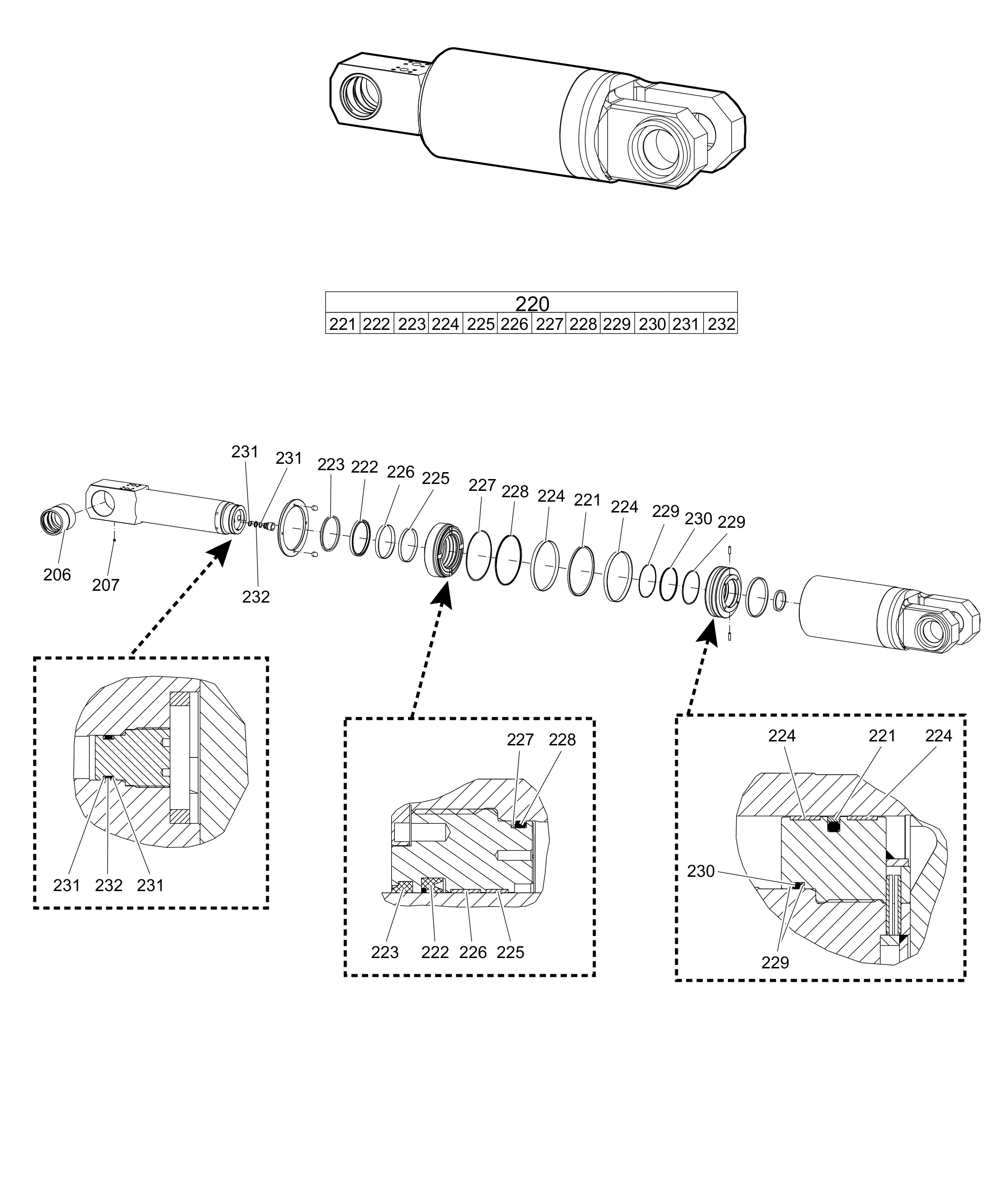

| 3363121894 | HYDRAULIC CYLINDER | 1 | with item 206 - 232 | |||
| 3363121532 | BEARING BUSH | 1 | ||||
| 3360209834 | GREASE NIPPLE | 1 | ||||
| 3363124861 | SEAL KIT (Hydraulic cylinder) | 1 | ||||
| 3363119298 | SEAL | 1 | ||||
| 3363119289 | SEAL | 1 | ||||
| 3363119291 | WIPER | 1 | ||||
| 3363119290 | GUIDE RING | 2 | ||||
| 3363119292 | GUIDE RING | 1 | ||||
| 3363119293 | GUIDE RING | 1 | ||||
| 3363119294 | BACK-UP RING | 1 | ||||
| 3363119295 | O-RING | 1 | ||||
| 3363119296 | BACK-UP RING | 2 | ||||
| 3363119297 | O-RING | 1 | ||||
| 3363124858 | BACK-UP RING | 2 | ||||
| 3363124859 | O-RING | 1 |
