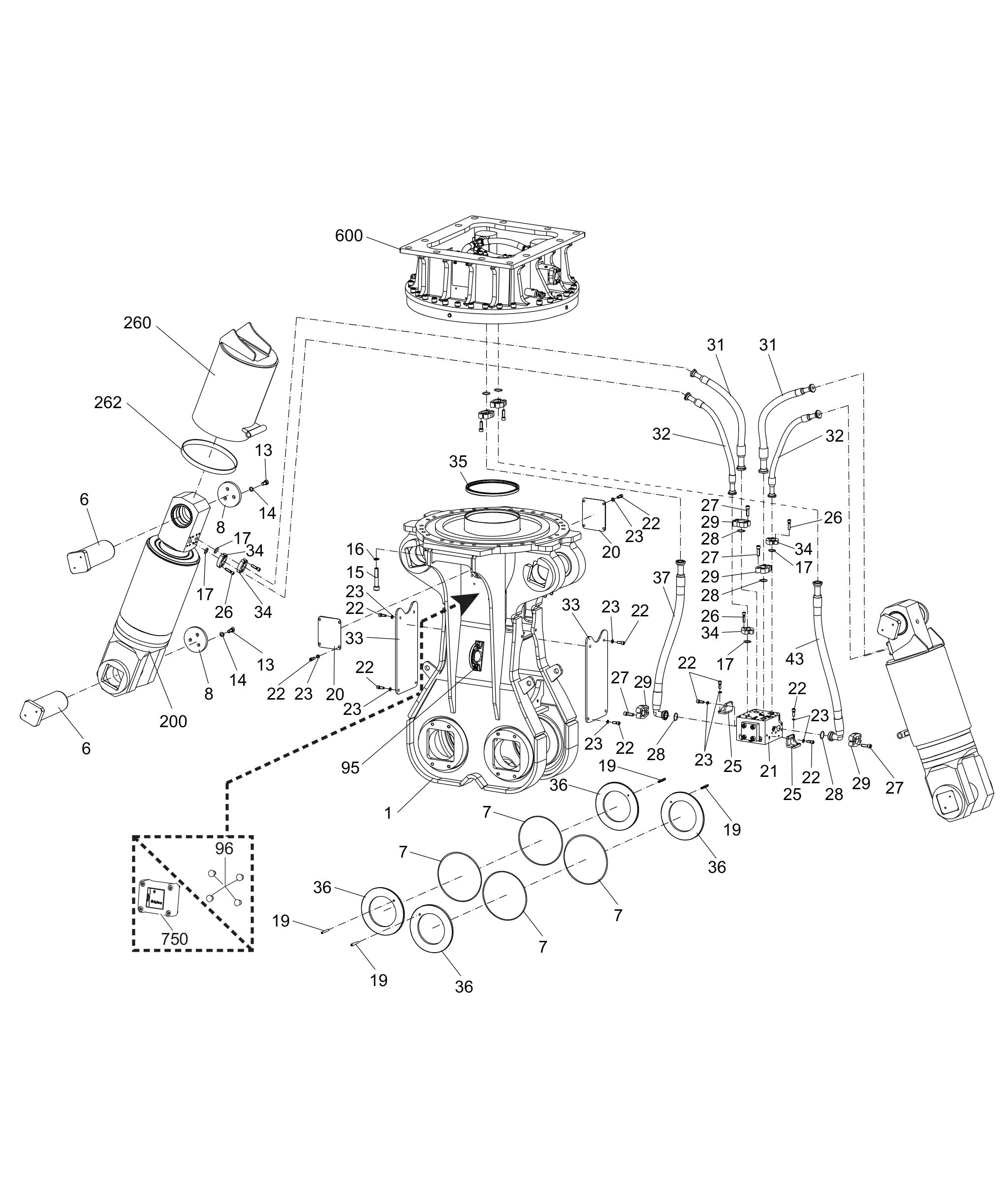

Hydraulic concrete buster
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363121695 | HOUSING | 1 | with item 95 | |||
| 3363121720 | BOLT | 4 | ||||
| 3363103803 | O-RING | 4 | ||||
| 3363114744 | CAP | 4 | ||||
| 3362328113 | ALLEN SCREW | 12 | ||||
| 3361333703 | LOCK WASHER | 12 | ||||
| 3360106101 | ALLEN SCREW | 28 | ||||
| 3361850748 | LOCK WASHER | 28 | ||||
| 3360314370 | O-RING | 6 | ||||
| 3363121827 | SPRING DOWEL SLEEVE | 4 | ||||
| 3362262371 | CAP | 2 | ||||
| 3363099407 | RAPID MOVEMENT VALVE | 1 | ||||
| 3360103751 | ALLEN SCREW | 24 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 24 | ||||
| 3363105487 | HOLDER | 2 | ||||
| 3360026513 | ALLEN SCREW | 24 | ||||
| 3363034274 | ALLEN SCREW | 16 | ||||
| 3360314372 | O-RING | 4 | ||||
| 3360992488 | FLANGE HALF | 8 | ||||
| 3363124609 | HYDRAULIC HOSE | 2 | ||||
| 3363124610 | HYDRAULIC HOSE | 2 | ||||
| 3363121843 | PLATE | 2 | ||||
| 3361853208 | FLANGE HALF | 12 | ||||
| 3363070083 | SEAL | 1 | ||||
| 3363121719 | RING | 4 | ||||
| 3363124611 | HYDRAULIC HOSE | 1 | ||||
| 3363124612 | HYDRAULIC HOSE | 1 | ||||
| 3363111995 | LIFTING EYE | 2 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic concrete busters without HATCON | |||
| 3363121894 | HYDRAULIC CYLINDER | 2 | see separate chapter | |||
| 3363121844 | PROTECTIVE PISTON ROD SHEATH, complete | 2 | with item 262 | |||
| 3363088873 | GUIDE STRIP | 2 | ||||
| 3363115332 | UPPER PART, complete | 1 | see separate chapter | |||
| 3315439180 | HATCON | 1 | only for hydraulic concrete busters with HATCON / see separate chapter |
