Mechanical
Spare Parts

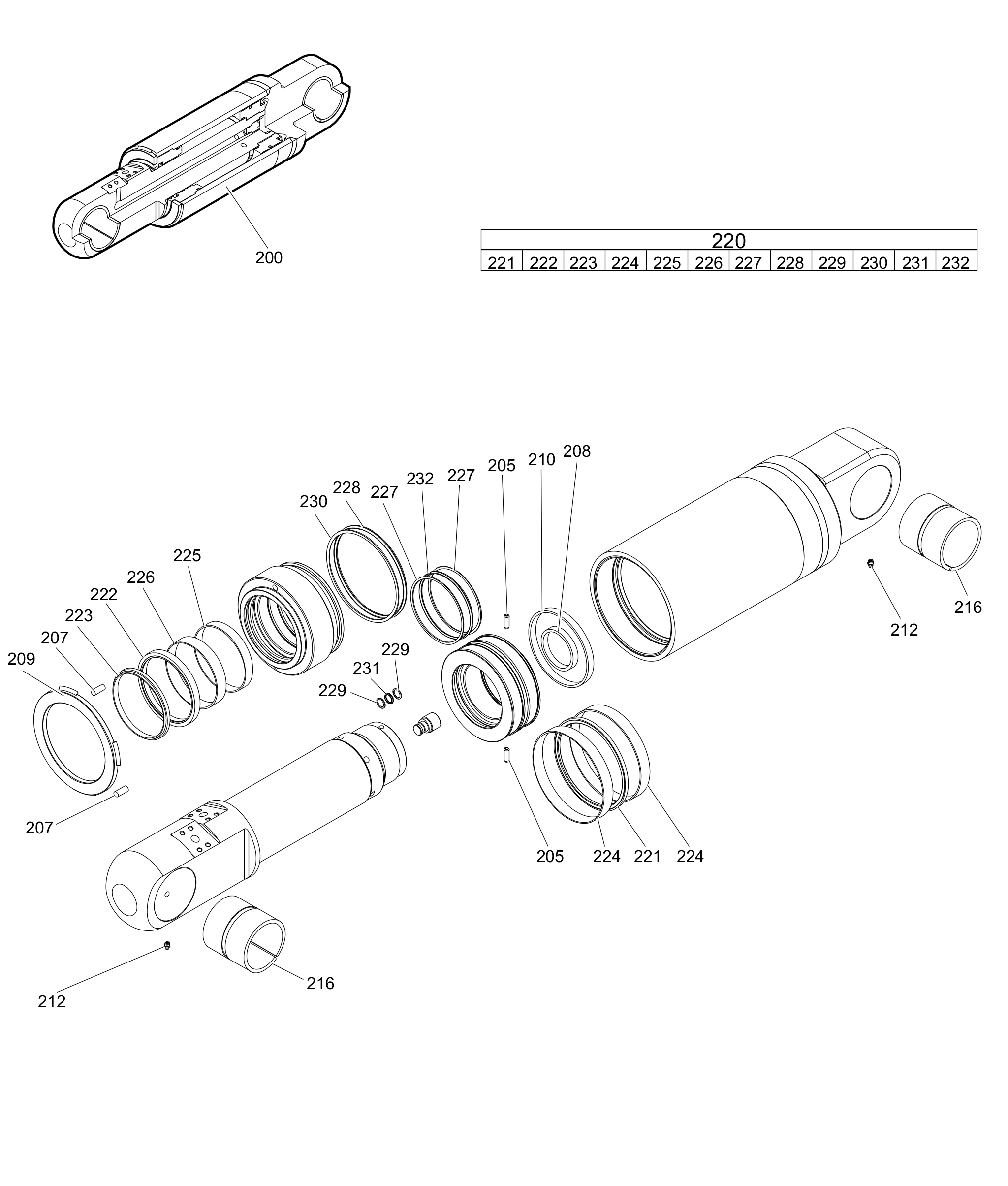

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363121070 | Hydraulic cylinder complete | 1 | with item 205 - 232 | |||
| 3360478961 | SPRING PIN | 2 | ||||
| 3363122272 | Spring pin | 2 | ||||
| 3363122260 | Ring | 1 | ||||
| 3363122255 | Ring | 1 | ||||
| 3363122289 | Ring | 1 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3363122261 | Bearing bush | 2 | ||||
| 3363122274 | Seal kit (Hydraulic cylinder) | 1 | ||||
| 3363122292 | Seal | 1 | ||||
| 3363122291 | Seal | 1 | ||||
| 3363122290 | Wiper | 1 | ||||
| 3363122287 | Guide ring | 2 | ||||
| 3363122280 | GUIDE RING | 1 | ||||
| 3363122282 | GUIDE RING | 1 | ||||
| 3363122286 | BACK-UP RING | 2 | ||||
| 3363122288 | O-RING | 1 | ||||
| 3363122281 | Back-up ring | 2 | ||||
| 3363122279 | BACK-UP RING | 1 | ||||
| 3363122285 | O-RING | 1 | ||||
| 3363115496 | O-RING | 1 |
