Mechanical
Spare Parts

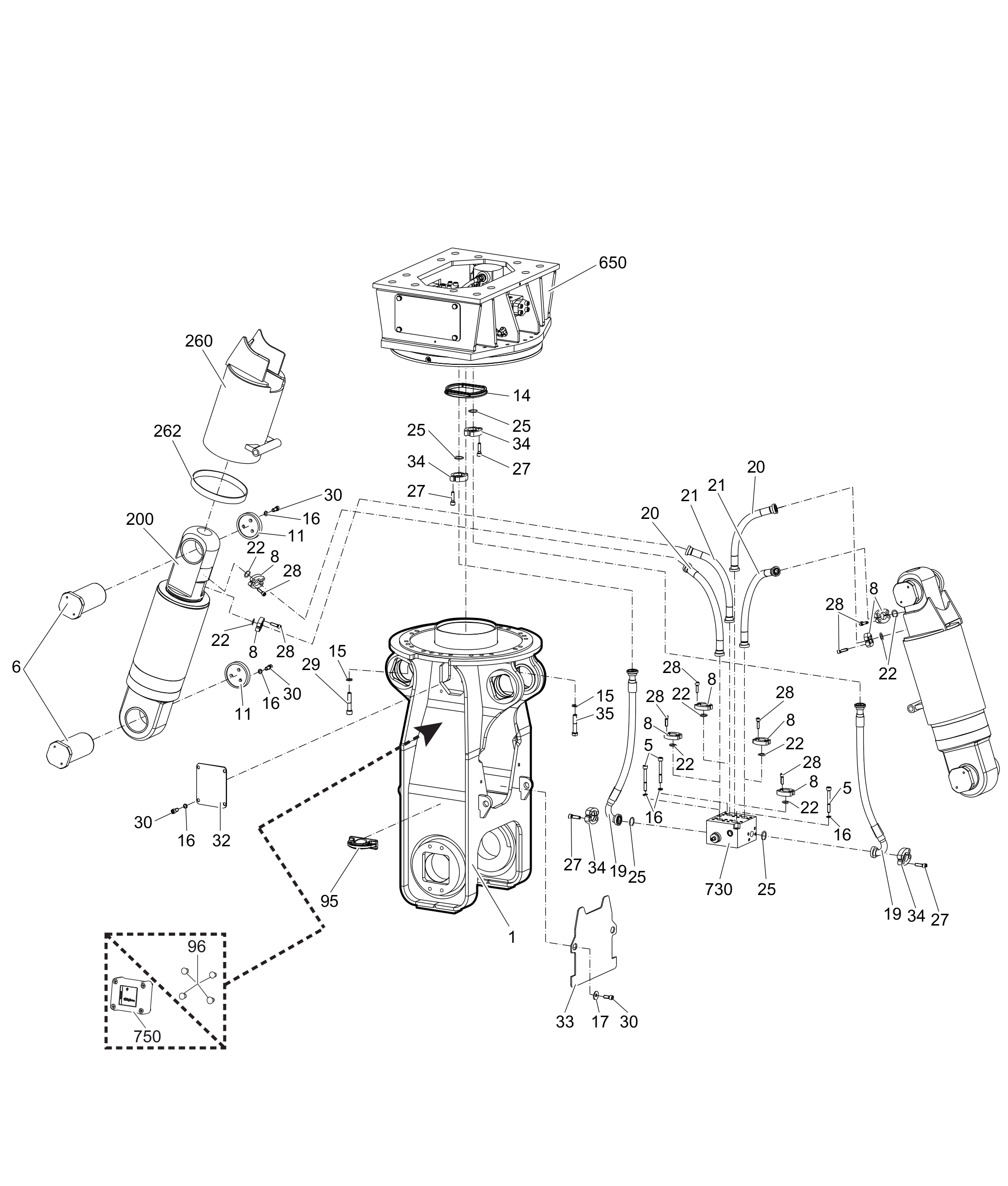

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120992 | Housing | 1 | with item 95 | |||
| 3360118445 | ALLEN SCREW | 3 | ||||
| 3363120666 | Bolt | 4 | ||||
| 3360995664 | FLANGE HALF | 16 | ||||
| 3363120452 | Cap | 4 | ||||
| 3363117540 | ROTARY SHAFT SEAL | 1 | ||||
| 3361333703 | LOCK WASHER | 24 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 23 | ||||
| 3362328082 | WASHER | 4 | ||||
| 3363122610 | Hydraulic hose | 2 | ||||
| 3363122794 | Hydraulic hose | 2 | ||||
| 3363122609 | Hydraulic hose | 2 | ||||
| 3360314549 | O-RING | 8 | ||||
| 3360314370 | O-RING | 4 | ||||
| 3360026513 | ALLEN SCREW | 16 | ||||
| 3360026393 | ALLEN SCREW | 32 | ||||
| 3363070490 | ALLEN SCREW | 20 | ||||
| 3360103751 | ALLEN SCREW | 24 | ||||
| 3362262371 | CAP | 2 | ||||
| 3363120673 | Plate | 2 | ||||
| 3361853208 | FLANGE HALF | 8 | ||||
| 3363121730 | HEXAGON HEAD BOLT | 4 | ||||
| 3363111994 | LIFTING EYE | 2 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 1 | only for hydraulic demolition cutters without HATCON | |||
| 3363121070 | Hydraulic cylinder complete | 2 | see separate chapter | |||
| 3363120766 | Protective piston rod sheath complete | 2 | with item 262 | |||
| 3363088873 | GUIDE STRIP | 2 | ||||
| 3363117521 | UPPER PART complete | 1 | see separate chapter | |||
| 3363103689 | RAPID MOVEMENT VALVE | 1 | ||||
| 3315439180 | HATCON | 1 | only for hydraulic demolition cutters with HATCON / see separate chapter |
