Mechanical
Spare Parts

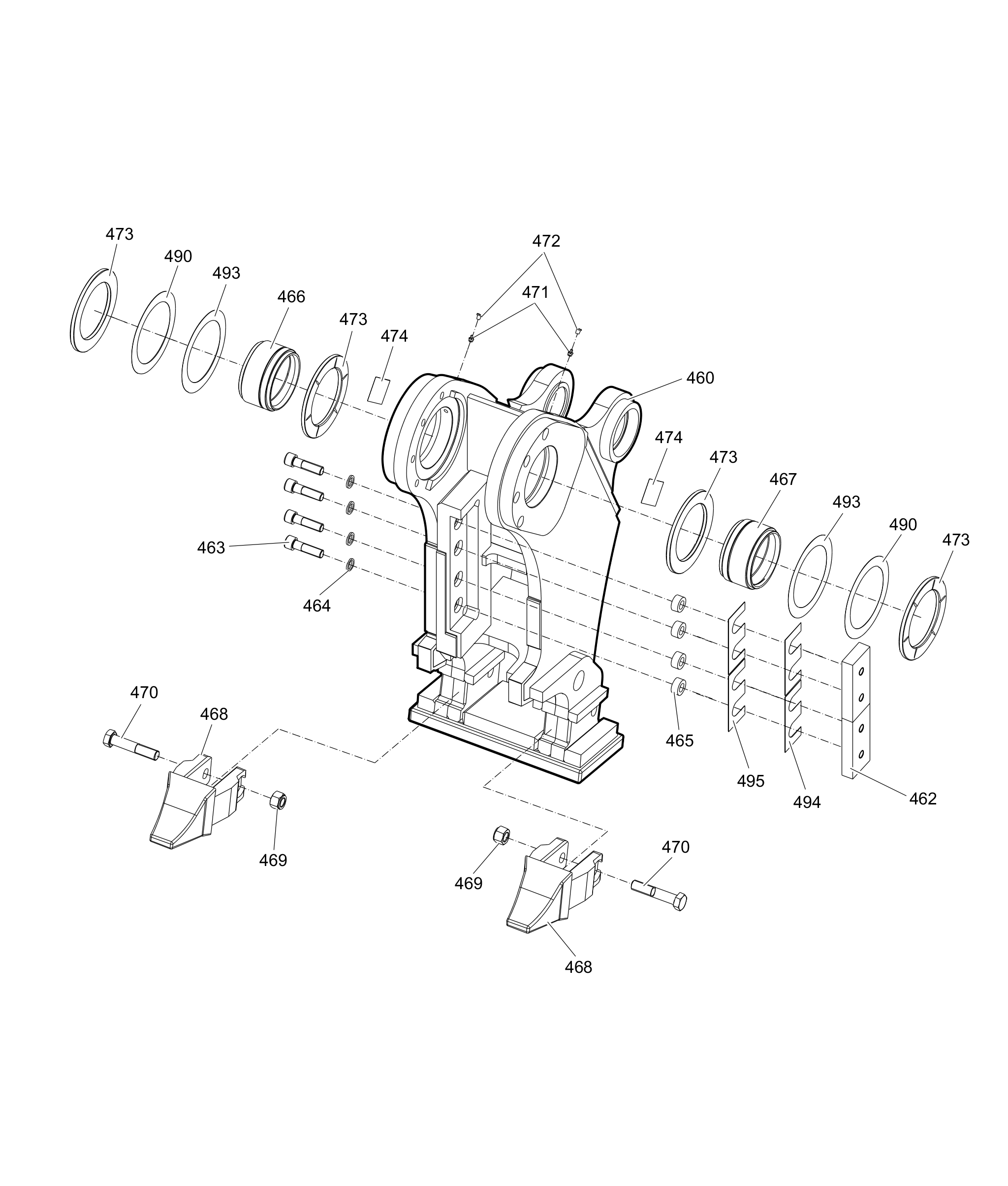

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363120629 | Cutter jaw (double) U | 1 | with item 462 - 474B | with item 469 and 470C | German/EnglishD | 0.2 mm (0.01 in.) thick, as requiredE | 1.0 mm (0.04 in.) thick, as required | |||
| 3363086479 | CUTTER BLADE | 2 | ||||
| 3363070085 | ALLEN SCREW | 4 | ||||
| 3361850748 | LOCK WASHER | 4 | ||||
| 3363035107 | LOCK RING | 4 | ||||
| 3363120659 | Bearing bush | 1 | ||||
| 3363120661 | Bearing bush | 1 | ||||
| 3363098968 | TIP OF TOOTH | 2 | ||||
| 3363098934 | HEXAGON NUT | 2 | ||||
| 3363123492 | HEXAGON HEAD BOLT | 2 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3363087600 | CAP | 2 | ||||
| 3363120660 | Wear ring | 4 | ||||
| 3362268751 | LABEL TIGHTENING TORQUE | 2 | ||||
| 3363121160 | Spacer ring | 2 | ||||
| 3363121159 | Spacer ring | 2 | ||||
| 3363088149 | SHIM | 2 | ||||
| 3363087607 | SHIM | 2 |
