Spare Parts

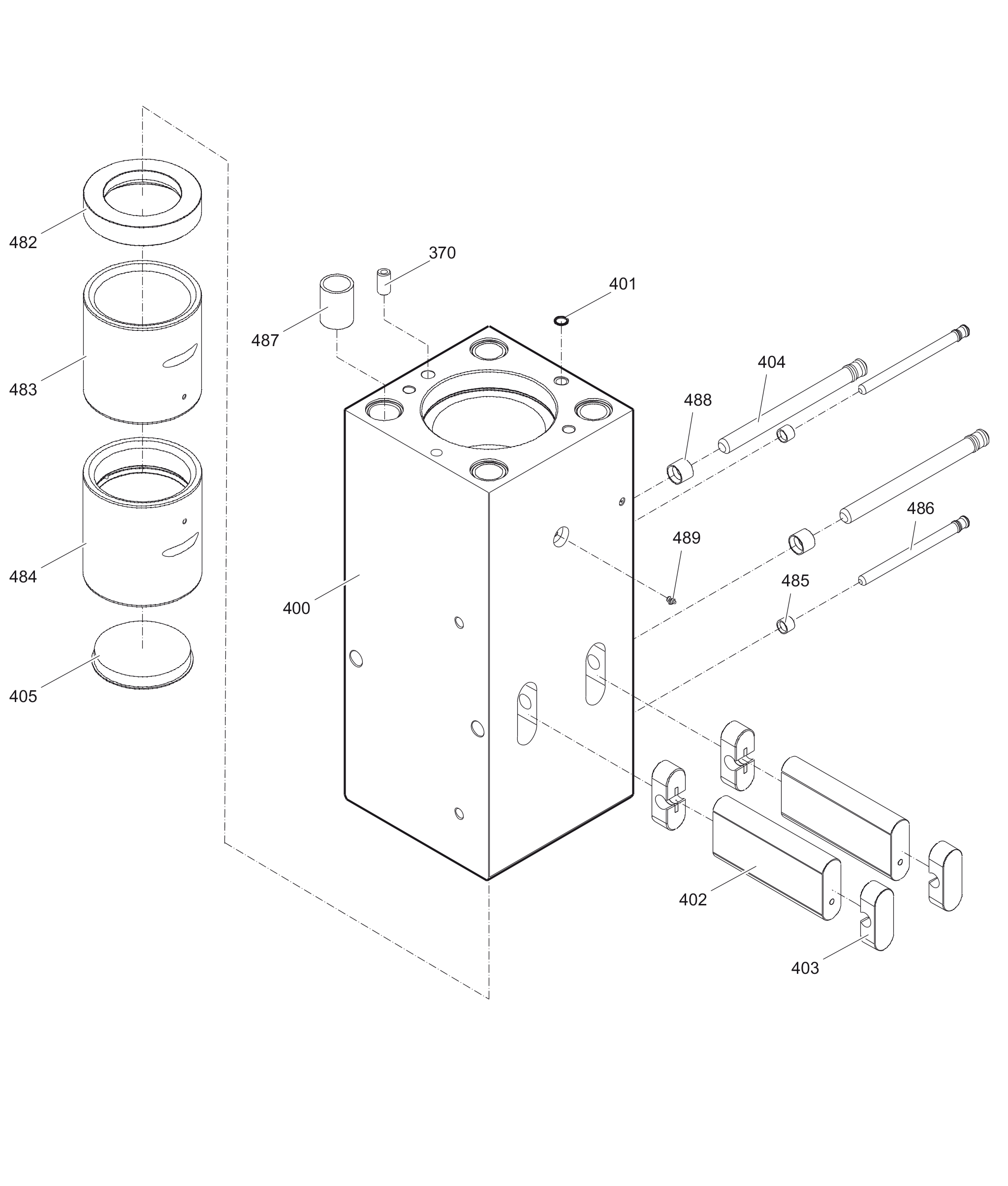

Percussion unit part 3: lower breaker part
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3360921413 | Lock pin | 1 | ||||
| 3363106631 | Lower breaker part | 1 | with item 482 - 489 | |||
| 3362267586 | SEAL | 1 | ||||
| 3361331529 | Retainer bar | 2 | ||||
| 3362262921 | Plug | 4 | ||||
| 3362261540 | Bolt | 2 | ||||
| 3361329794 | Protective cap | 1 | ||||
| 3363069083 | Impact ring | 1 | ||||
| 3363105551 | Wear bush | 1 | ||||
| 3363105549 | Wear bush | 1 | ||||
| 3361854363 | LOCKING BUSH | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3363085321 | Threaded insert | 4 | ||||
| 3362260433 | LOCKING BUSH | 2 | ||||
| 3360433774 | GREASE NIPPLE | 1 |
