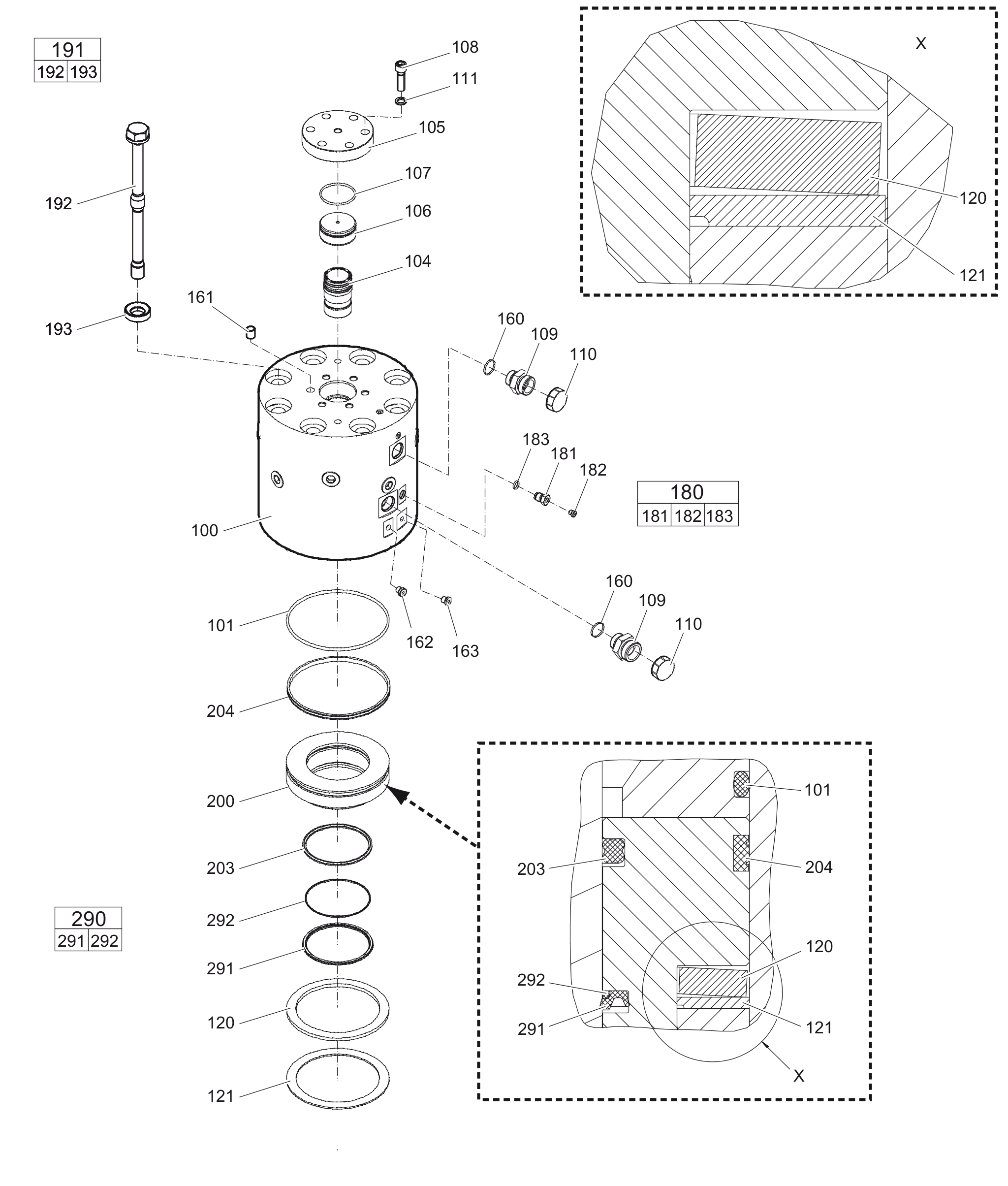

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363110017 | Cover | 1 | with item 161 - 163B | with item 160C | observe mounting direction | |||
| 3361031951 | O-RING | 1 | ||||
| 3363109459 | Main control valve | 1 | ||||
| 3363109465 | Cover | 1 | ||||
| 3363102115 | Cover | 1 | ||||
| 3363098702 | O-ring | 1 | ||||
| 3363083725 | Allen screw | 6 | ||||
| 3360995665 | Fitting | 2 | ||||
| 3361353488 | Protective cap | 2 | ||||
| 3361333703 | PAIR OF LOCK WASHERS | 6 | ||||
| 3363110016 | Plate spring | 1 | ||||
| 3363109471 | Disk | 1 | ||||
| 3360314551 | O-ring | 2 | ||||
| 3361031915 | Threaded insert | 6 | ||||
| 3363066963 | PLUG | 1 | ||||
| 3360478439 | THREADED PLUG | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363110084 | Bolt complete | 8 | ||||
| 3363109443 | Bolt | 1 | ||||
| 3363109463 | Washer | 1 | ||||
| 3363109461 | Seal bush | 1 | ||||
| 3363098700 | Seal | 1 | ||||
| 3363110027 | Seal | 1 | ||||
| 3363103152 | Seal kit | 1 | ||||
| - | Seal | 1 | ||||
| - | Back-up ring | 1 |
