Spare Parts

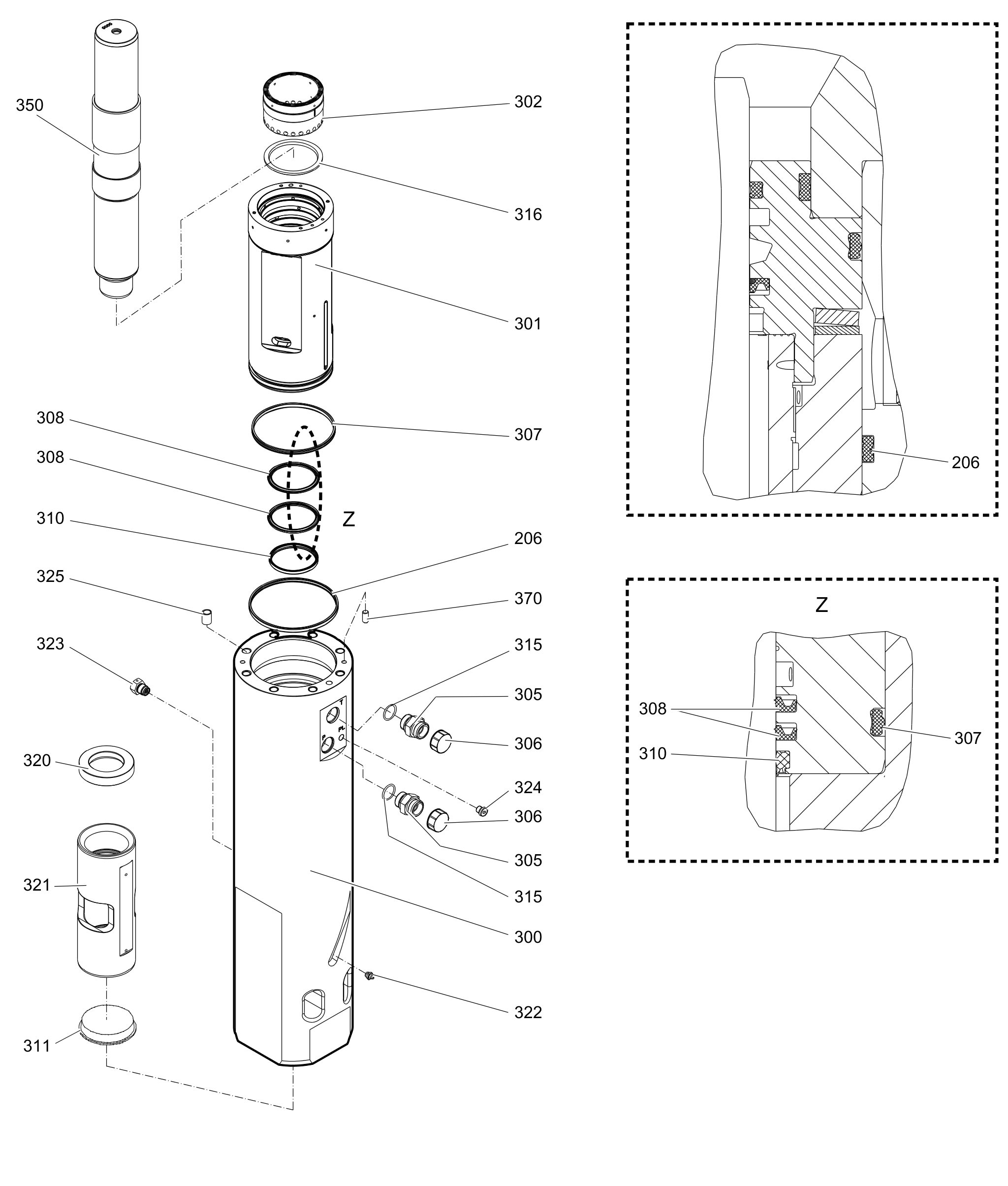

Percussion unit part 2: main body complete
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363118510 | Seal | 1 | ||||
| 3363117070 | Main body | 1 | with item 320 - 325 | |||
| 3363118530 | Cylinder bush | 1 | with item 316 | |||
| 3363118752 | Main control valve | 1 | ||||
| 3360478190 | Fitting | 2 | ||||
| 3361353487 | Cap | 2 | ||||
| 3363118529 | Seal | 1 | ||||
| 3363119325 | Seal | 2 | ||||
| 3362266792 | Wiper | 1 | ||||
| 3362266790 | Protective cap | 1 | ||||
| 3360314551 | O-ring | 2 | ||||
| 3363118511 | Ring | 1 | ||||
| 3363117056 | Impact ring | 1 | ||||
| 3363118770 | Wear bush | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3363109435 | NON RETURN VALVE | 1 | ||||
| 3363066963 | PLUG | 1 | ||||
| 3360186601 | Threaded insert | 8 | ||||
| 3363117299 | Percussion piston | 1 | ||||
| 3360106758 | Lock pin | 1 |
