Spare Parts

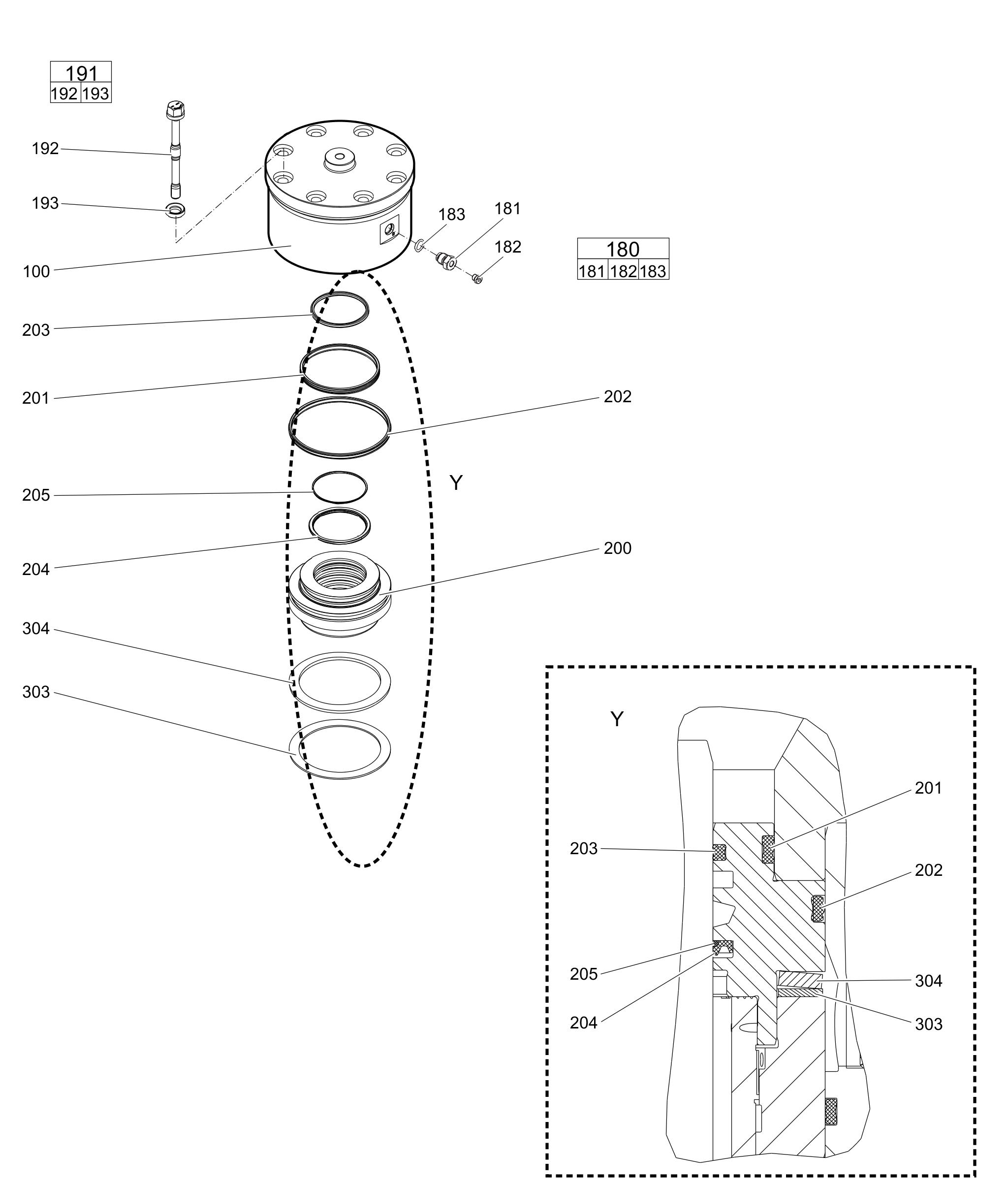

Percussion unit part 1: Cover
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363115638 | Cover | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363117301 | Bolt complete | 8 | ||||
| 3363118769 | Bolt | 1 | ||||
| 3363115694 | Washer | 1 | ||||
| 3363115659 | Seal bush | 1 | ||||
| 3363118509 | Seal | 1 | ||||
| 3363118528 | Seal | 1 | ||||
| 3362266789 | Seal | 1 | ||||
| 3363117079 | Seal | 1 | ||||
| 3363117081 | Back-up ring | 1 | ||||
| 3363117062 | Disk | 1 | ||||
| 3363117083 | Plate spring | 1 |
