Spare Parts

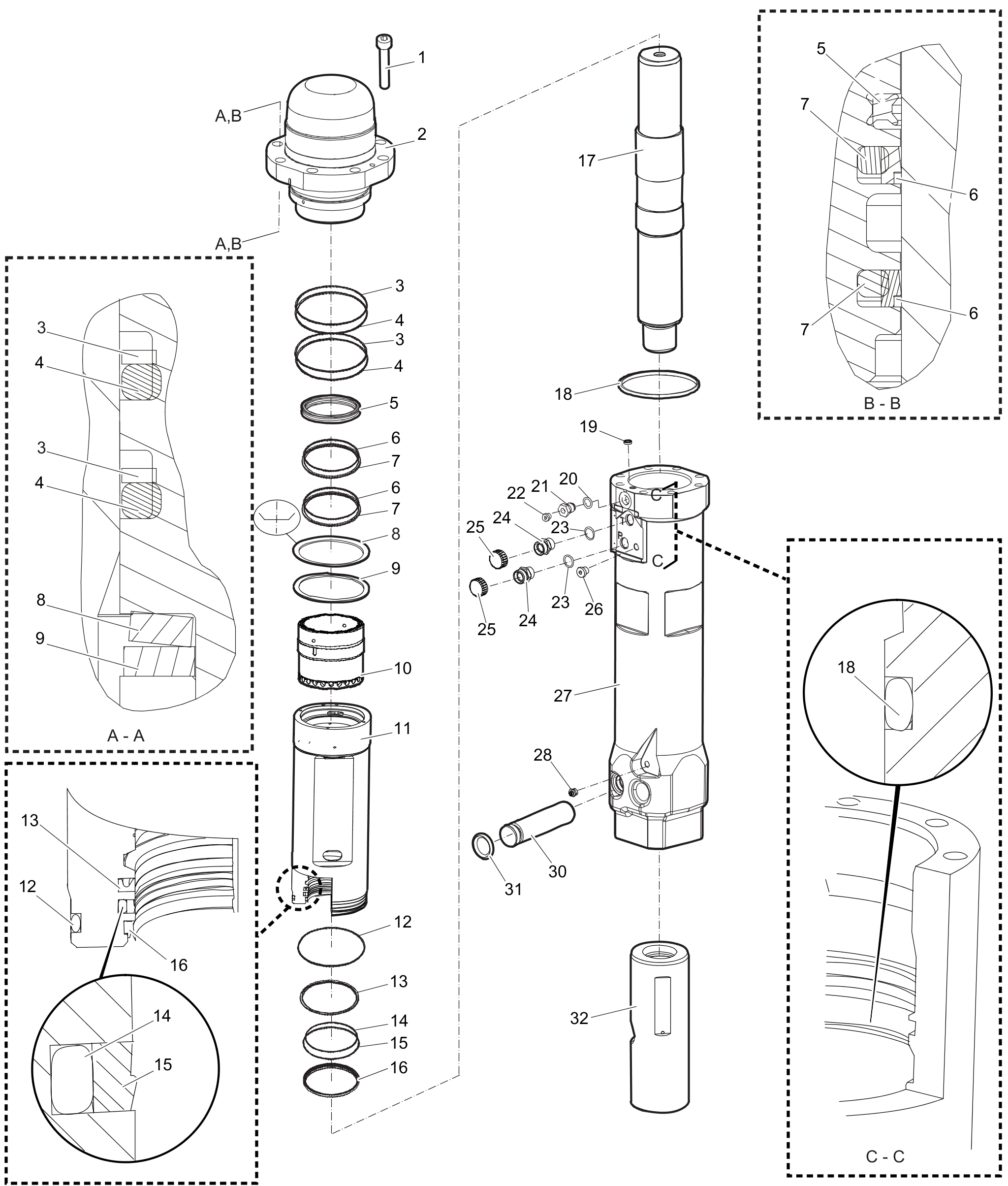

Percussion unit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 0211148303 | SCREW | 8 | ||||
| 3315413300 | BACK HEAD | 1 | ||||
| 3361192023 | BACK-UP RING | 2 | ||||
| 3361192022 | O-RING | 2 | ||||
| 3361192017 | QUAD-RING | 1 | ||||
| 3361192018 | SEAL | 2 | ||||
| 3361192019 | O-RING | 2 | ||||
| 3361140004 | SPRING WASHER | 1 | ||||
| 3361140005 | SPACER | 1 | ||||
| 3361140106 | CONTROL VALVE | 1 | ||||
| 3361140002 | CYLINDER BUSH | 1 | ||||
| 3361192025 | O-RING | 1 | ||||
| 3361192027 | SEAL | 1 | ||||
| 3361192029 | O-RING | 1 | ||||
| 3361192028 | SEAL | 1 | ||||
| 3361192030 | WIPER | 1 | ||||
| 3315305130 | PISTON | 1 | ||||
| 3315296620 | SEAL | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663925100 | O-RING | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3361192067 | O-RING | 2 | ||||
| 3361031476 | FITTING | 2 | ||||
| 3361353486 | COVER | 2 | ||||
| 3363066963 | PLUG | 1 | ||||
| 3315407005 | CYLINDER HOUSING | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3315410215 | TOOL RETAINER | 1 | ||||
| 0663212006 | O-RING | 1 | ||||
| 3361140009 | BUSHING | 1 |
