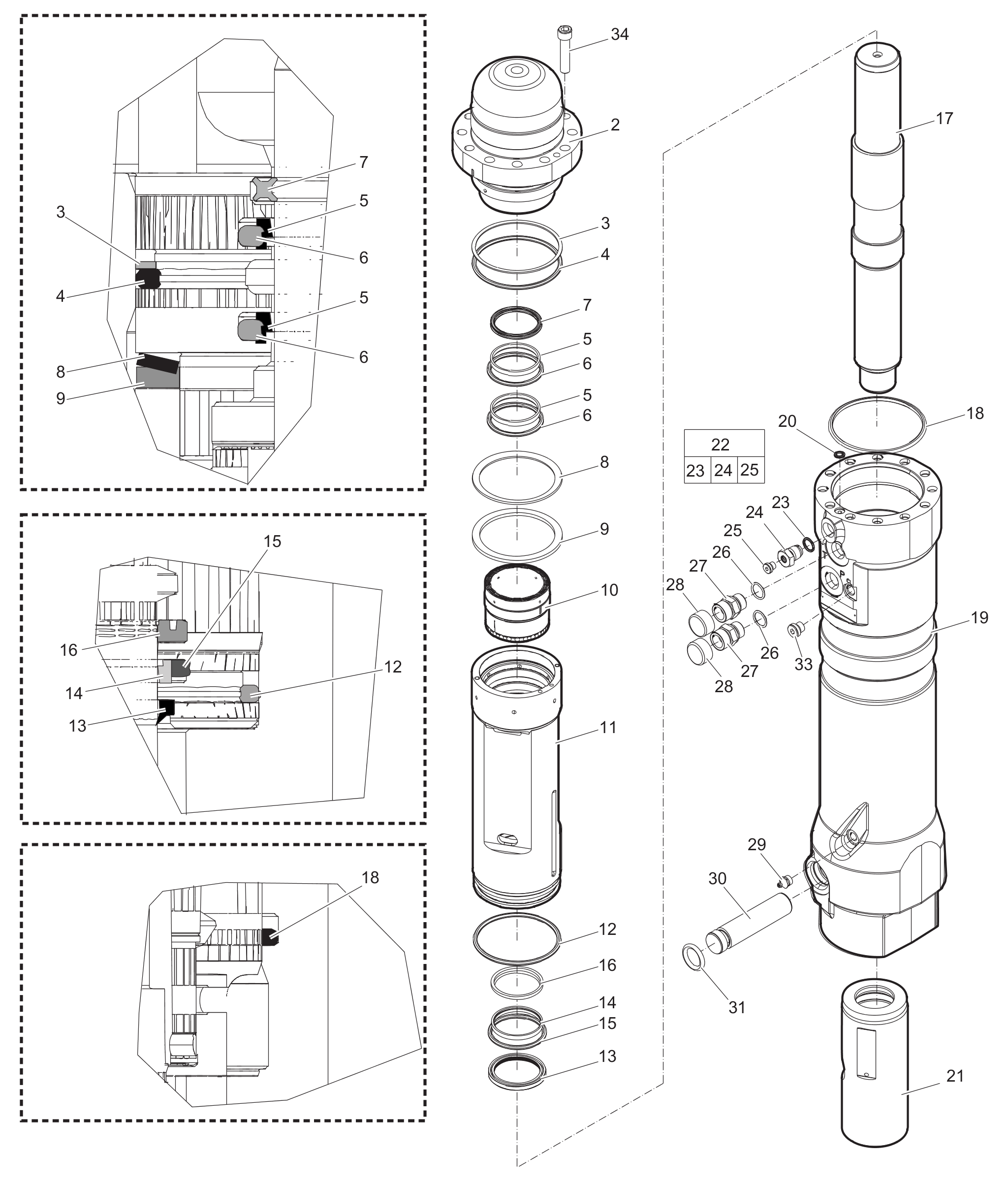

Percussion unit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315416500 | BACK HEAD | 1 | ||||
| 3361192036 | BACK-UP RING | 1 | ||||
| 3363091712 | O-RING | 1 | ||||
| 3361192032 | SEAL | 2 | ||||
| 3361192033 | O-RING | 2 | ||||
| 3361192031 | QUAD-RING | 1 | ||||
| 3361130004 | PLATE | 1 | ||||
| 3361130005 | SPACER | 1 | ||||
| 3361130106 | CONTROL VALVE | 1 | ||||
| 3361130002 | CYLINDER BUSH | 1 | ||||
| 3363091709 | O-RING | 1 | ||||
| 3361192041 | WIPER | 1 | ||||
| 3361192039 | SEAL | 1 | ||||
| 3361192040 | O-RING | 1 | ||||
| 3361192038 | SEAL | 1 | ||||
| 3315332730 | PISTON | 1 | ||||
| 3315296615 | SEAL | 1 | ||||
| 3315429505 | CYLINDER HOUSING | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 3361130009 | BUSHING | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 0663925100 | O-RING | 1 | ||||
| - | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3361192067 | O-RING | 2 | ||||
| 3361031476 | FITTING | 2 | ||||
| 3361353486 | COVER | 2 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3315429515 | TOOL RETAINER | 1 | ||||
| 0663212006 | O-RING | 1 | ||||
| 3363066963 | PLUG | 1 | ||||
| 3315431100 | SCREW | 12 |
