Mechanical
Spare Parts

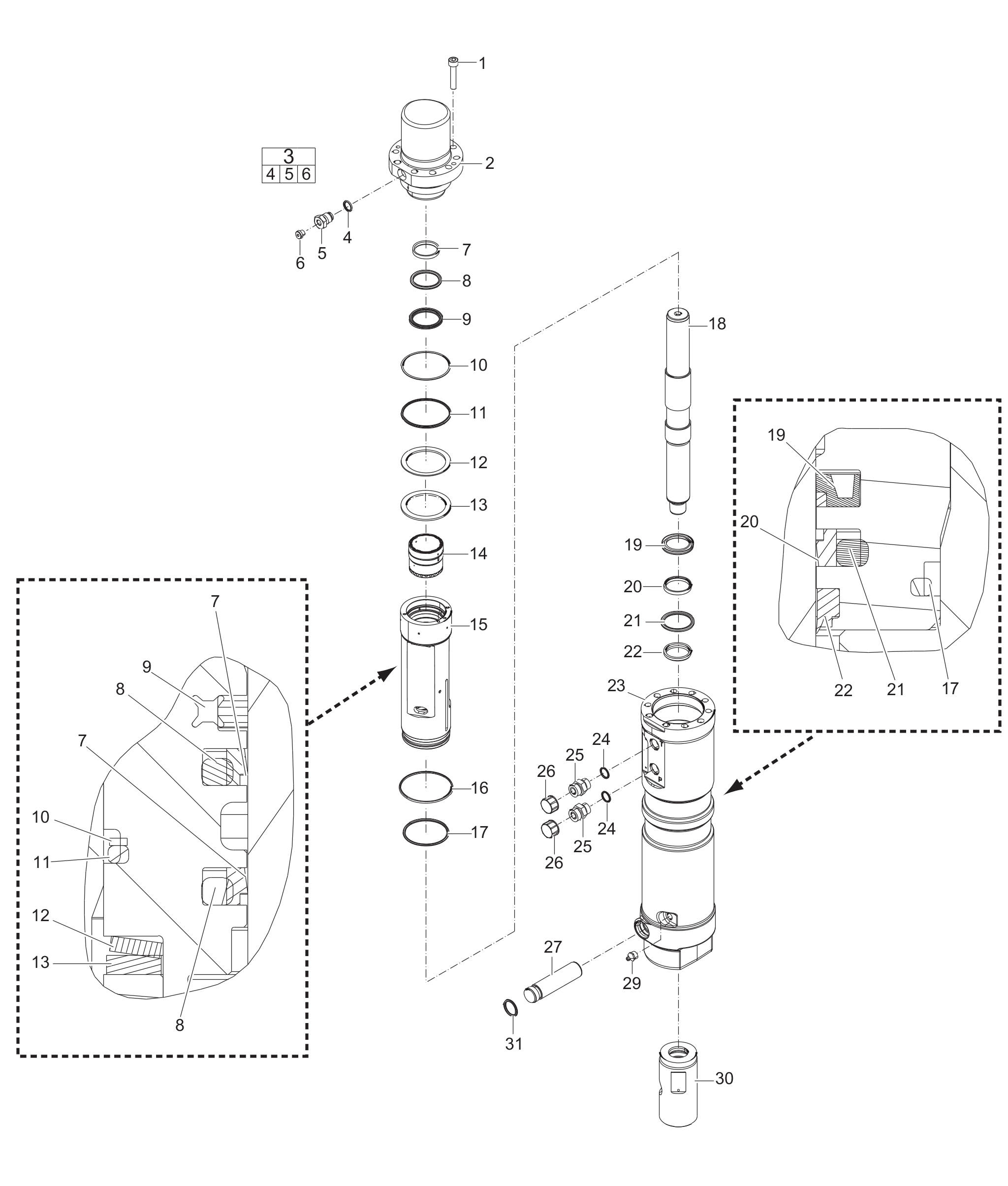

Percussion unit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315431103 | ALLEN SCREW | 10 | ||||
| 3315430200 | BACK HEAD | 1 | ||||
| 3363087286 | FILLING VALVE, complete | 1 | ||||
| 0663925100 | O-RING | 1 | ||||
| 3362264253 | FILLING VALVE | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3361192053 | STEPSEAL | 2 | ||||
| 3361192072 | O-RING | 2 | ||||
| 3361192052 | QUAD-RING | 1 | ||||
| 3361192058 | BACK-UP RING | 1 | ||||
| - | O-RING | 1 | ||||
| 3361110004 | PLATE SPRING | 1 | ||||
| 3361110005 | SPACER | 1 | ||||
| 3361110106 | CONTROL VALVE | 1 | ||||
| 3361110002 | CYLINDER BUSH | 1 | ||||
| 3315296605 | SEAL | 1 | ||||
| 3361192061 | O-RING | 1 | ||||
| 3315332530 | PISTON | 1 | ||||
| 3361192063 | SEAL | 1 | ||||
| 3361192064 | STEPSEAL | 1 | ||||
| 3360314389 | O-RING | 1 | ||||
| 3361192065 | WIPER | 1 | ||||
| 3315430105 | CYLINDER HOUSING | 1 | ||||
| 3361192066 | O-RING | 2 | ||||
| 3361031612 | FITTING | 2 | ||||
| 3361353485 | CAP | 2 | ||||
| 3315429812 | TOOL RETAINER | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3361110019 | BUSHING | 1 | ||||
| 0663212111 | O-RING | 1 | 22 x 3.5 mm (0.87 x 0.14 in.) |
