Service, repair and wear part kits
Spare Parts

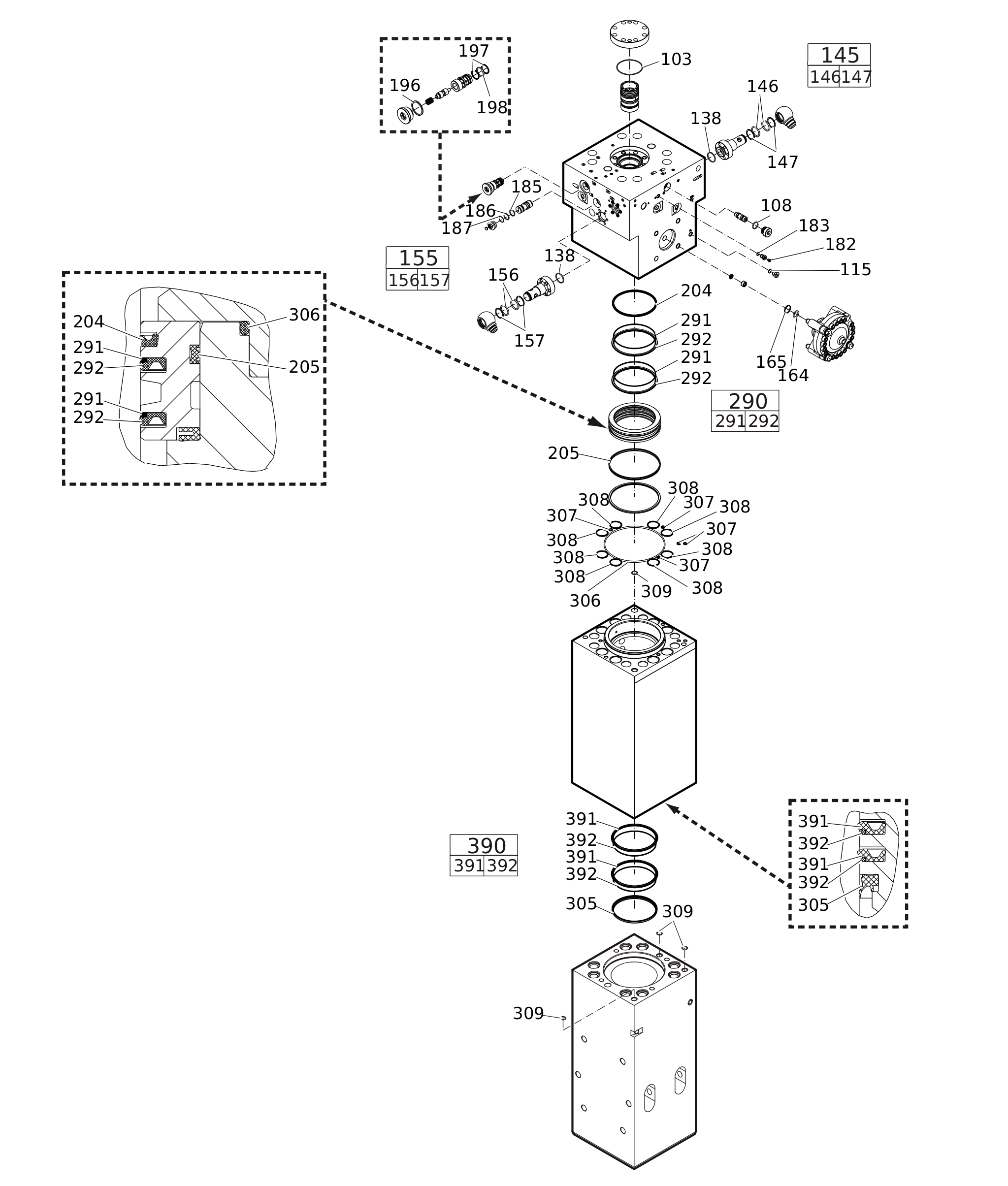

Seal kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363121224 | SEAL KIT | 1 | ||||
| 3360314376 | O-RING | 1 | ||||
| 3360314370 | O-RING | 1 | ||||
| 3360478171 | O-RING | 1 | ||||
| 3360314373 | O-RING | 2 | ||||
| 3361850422 | SEAL KIT | 1 | ||||
| 3361850422 | SEAL KIT | 1 | ||||
| - | O-RING | 2 | ||||
| - | O-RING | 2 | ||||
| - | BACK-UP RING | 2 | ||||
| - | BACK-UP RING | 2 | ||||
| 3360314364 | O-RING | 1 | ||||
| 3360328046 | BACK-UP RING | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363123253 | SEAL | 1 | ||||
| 3360314790 | O-RING | 1 | ||||
| 3363126739 | BACK-UP RING | 1 | ||||
| 3363121175 | SEAL | 1 | ||||
| 3363121176 | BACK-UP RING | 2 | ||||
| 3360314453 | O-RING | 4 | ||||
| 3360314453 | O-RING | 1 | ||||
| 3363103418 | SEAL | 1 | ||||
| 3363098137 | SEAL | 1 | ||||
| 3363087592 | SEAL KIT | 2 | ||||
| - | BACK-UP RING | 1 | ||||
| - | SEAL | 1 | ||||
| 3363087711 | WIPER | 1 | ||||
| 3361031988 | O-RING | 1 | ||||
| 3362267583 | SEAL | 7 | ||||
| 3362267590 | SEAL | 8 | ||||
| 3363087593 | SEAL KIT | 2 | ||||
| - | SEAL | 1 | ||||
| - | BACK-UP RING | 1 |
