Options / accessories
Spare Parts
Optional equipment

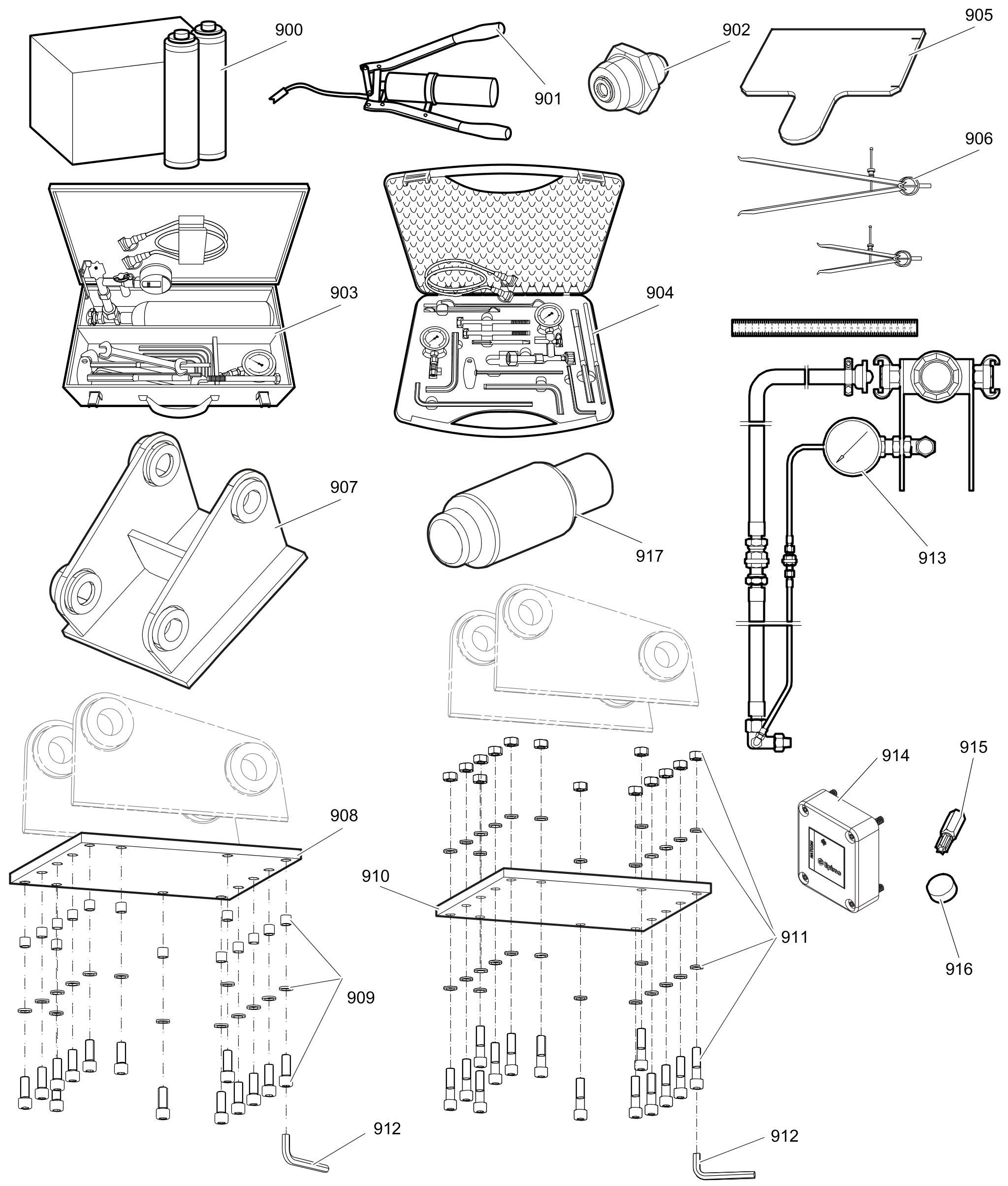

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363122356 | BIO CHISEL PASTE CARTRIDGE, 12 x 550 g (1.2 lbs) | 1 | ||||
| 3363091200 | CHISEL PASTE CARTRIDGE, 12 x 500 g (1.1 lbs) | 1 | ||||
| 3363034567 | GREASE PUMP | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3363089845 | MAINTENANCE AND CHARGING BOX with nitrogen cylinder, 5 l, 1.1 gal (1.32 US gal) | 1 | ||||
| 3363094940 | MAINTENANCE AND CHARGING BOX without nitrogen cylinder | 1 | ||||
| 3363088997 | TEST GAUGE | 1 | ||||
| 3363094952 | INSIDE CALLIPERS UPPER WEAR BUSH | 1 | ||||
| - | ADAPTER PLATE matching the carrier. Consult the authorized Customer Center/Dealer in your area. | 1 | ||||
| 3363099791 | BASE PLATE with threaded inserts | 1 | ||||
| 3363087305 | BOLT KIT | 1 | ||||
| 3363102873 | BASE PLATE with through borings | 1 | ||||
| 3363094577 | BOLT KIT | 1 | ||||
| 3360478949 | ALLEN KEY (27 mm) | 1 | ||||
| 3363103077 | ADAPTER KIT for underwater applications | 1 | ||||
| 3315442500 | HATCON KIT 1 (3G) | 1 | with item 915 and 916Hydraulic breakers are factory equipped with threads for attaching Retrofit kit HATCONfrom s/n DEQ200055 - (HB 5800 with lower wear bush steel)from s/n DEQ200281 - (HB 5800 with lower wear bush bronze)from s/n DEQ200122 - (HB 5800 DP with lower wear bush steel)from s/n DEQ200281 - (HB 5800 DP with lower wear bush bronze) | |||
| 3315442520 | HATCON KIT 1 (LTE) | 1 | with item 915 and 916Hydraulic breakers are factory equipped with threads for attaching Retrofit kit HATCONfrom s/n DEQ200055 - (HB 5800 with lower wear bush steel)from s/n DEQ200281 - (HB 5800 with lower wear bush bronze)from s/n DEQ200122 - (HB 5800 DP with lower wear bush steel)from s/n DEQ200281 - (HB 5800 DP with lower wear bush bronze) | |||
| 3315439105 | SECURITY BIT HATCON | 1 | ||||
| 3315439106 | MAGNET HATCON | 1 |
