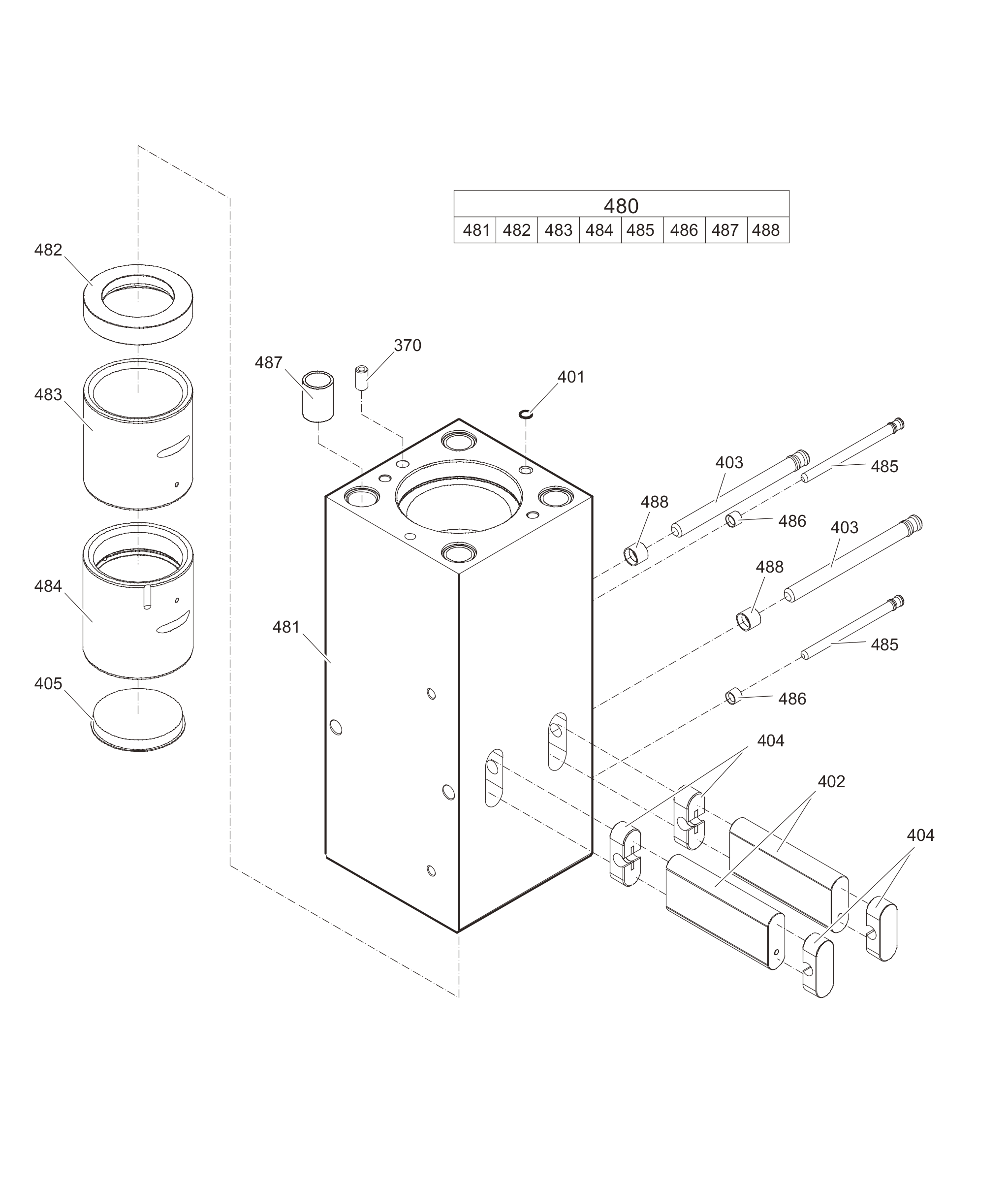

Percussion unit part 3: lower breaker part (steel)
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3360921413 | Lock pin | 1 | ||||
| 3362267586 | SEAL | 1 | ||||
| 3361331529 | Retainer bar | 2 | ||||
| 3362261540 | Bolt | 2 | ||||
| 3362262921 | Plug | 4 | ||||
| 3361329794 | Protective cap | 1 | ||||
| 3363089480 | Lower breaker part complete with lower wear bush steel | 1 | Note: When ordering a lower breaker part for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19). | |||
| - | Lower breaker part | 1 | ||||
| - | Lower breaker part | 1 | ||||
| 3363069083 | Impact ring | 1 | ||||
| 3363069083 | Impact ring | 1 | ||||
| 3363069137 | Wear bush | 1 | ||||
| 3363069137 | Wear bush | 1 | ||||
| 3363088653 | Wear bush (steel) | 1 | ||||
| 3363088653 | Wear bush (steel) | 1 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 2 | ||||
| 3361854363 | LOCKING BUSH | 2 | ||||
| 3363085321 | Threaded insert | 4 | ||||
| 3363085321 | Threaded insert | 4 | ||||
| 3362260433 | LOCKING BUSH | 2 | ||||
| 3362260433 | LOCKING BUSH | 2 |
