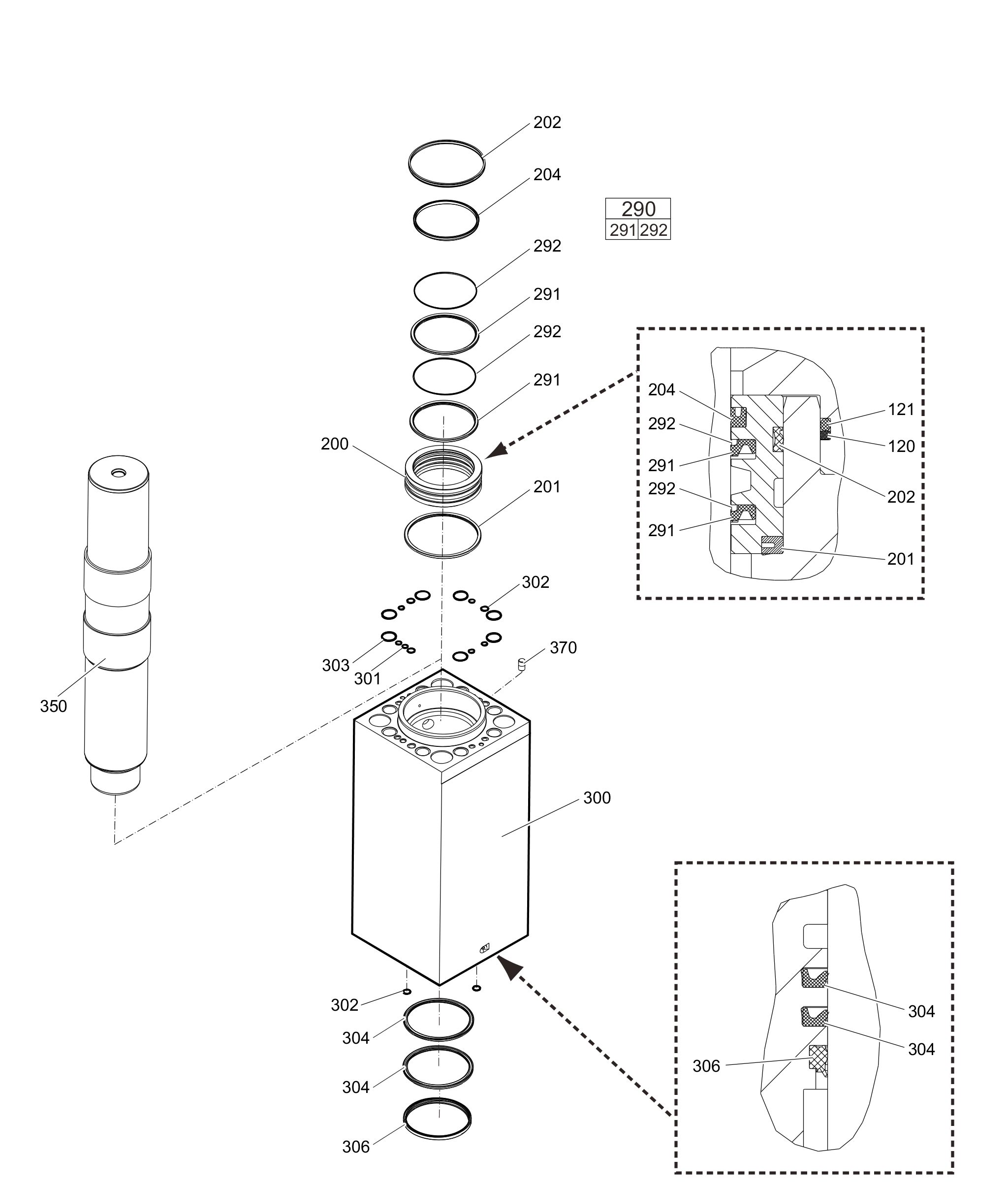

Percussion unit part 2: cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363104523 | Seal bush | 1 | ||||
| 3363104525 | Ring | 1 | ||||
| 3363103372 | Seal | 1 | ||||
| 3363103304 | Seal | 1 | ||||
| 3363103448 | Seal kit | 2 | ||||
| - | Seal | 1 | ||||
| - | Back-up ring | 1 | ||||
| 3363119874 | Cylinder | 1 | ||||
| 3362267583 | SEAL | 6 | ||||
| 3362267585 | SEAL | 5 | ||||
| 3363104557 | Seal | 8 | ||||
| 3363122809 | Seal | 2 | ||||
| 3363103303 | Wiper | 1 | ||||
| 3363106736 | Percussion piston | 1 | ||||
| 3362268185 | Lock pin | 1 |
