Service, repair and wear part kits
Spare Parts

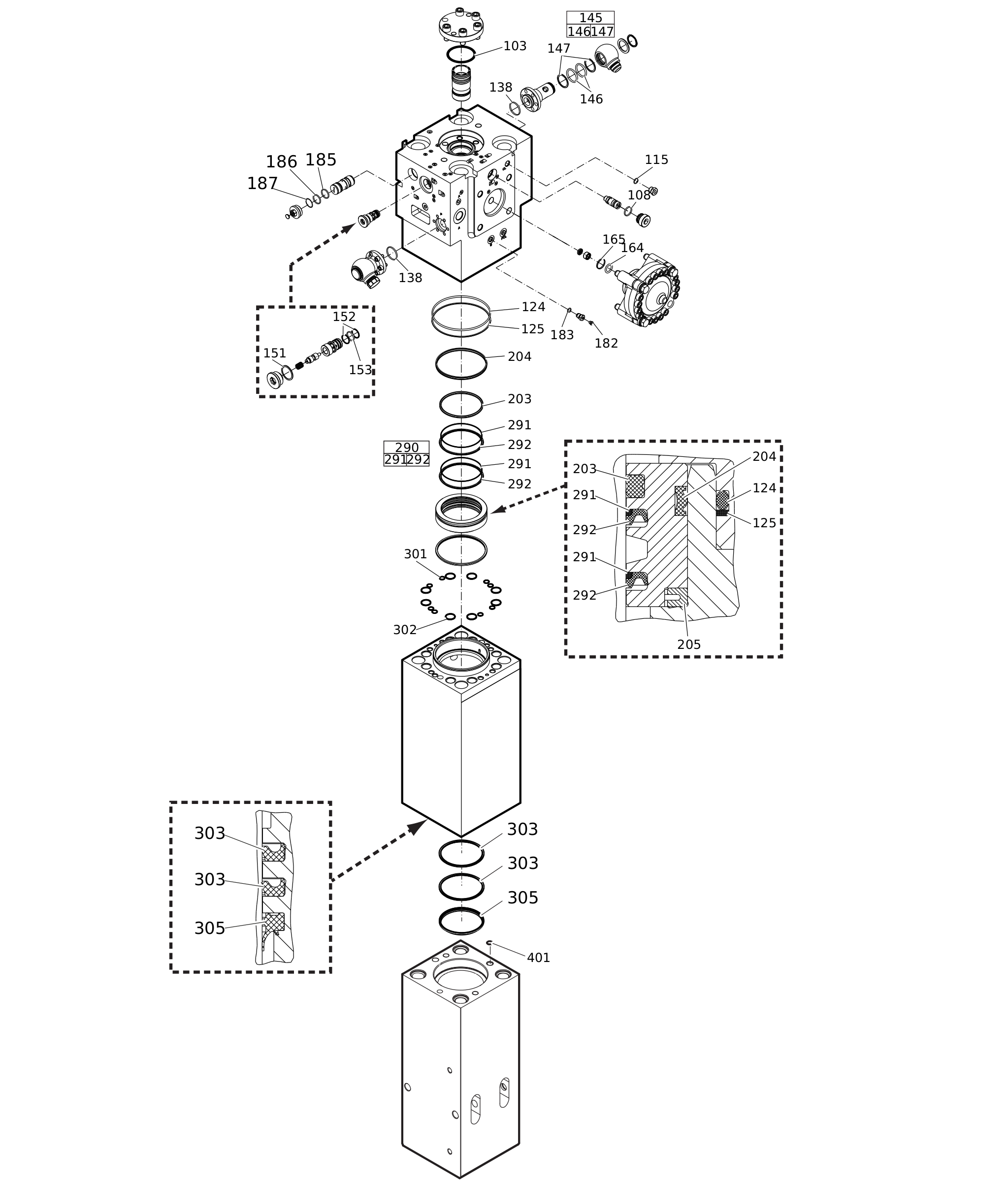

Seal kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363122810 | Seal kit | 1 | ||||
| 3360314375 | O-RING | 1 | ||||
| 3360314370 | O-RING | 1 | ||||
| 3360478171 | O-RING | 1 | ||||
| 3361031845 | O-RING | 1 | ||||
| 3363087482 | BACK-UP RING | 1 | ||||
| 3360314373 | O-RING | 2 | ||||
| 3361850422 | SEAL KIT | 2 | ||||
| - | O-RING | 2 | ||||
| - | BACK-UP RING | 2 | ||||
| 3363121175 | SEAL | 1 | ||||
| 3363121176 | BACK-UP RING | 2 | ||||
| 3360314453 | O-RING | 1 | ||||
| 3360314364 | O-RING | 1 | ||||
| 3360328046 | BACK-UP RING | 1 | ||||
| 3360478426 | THREADED PLUG | 1 | ||||
| 3360175125 | O-RING | 1 | ||||
| 3363123253 | SEAL | 1 | ||||
| 3360314790 | O-RING | 1 | ||||
| 3363126739 | BACK-UP RING | 1 | ||||
| 3361333017 | SEAL | 1 | ||||
| 3363098136 | SEAL | 1 | ||||
| 3363083591 | SEAL KIT | 2 | ||||
| - | BACK-UP RING | 1 | ||||
| - | SEAL | 1 | ||||
| 3362267585 | SEAL | 8 | ||||
| 3362267281 | SEAL | 8 | ||||
| 3363122808 | SEAL | 2 | ||||
| 3363083670 | WIPER | 1 | ||||
| 3362267586 | SEAL | 1 |
