Mechanical

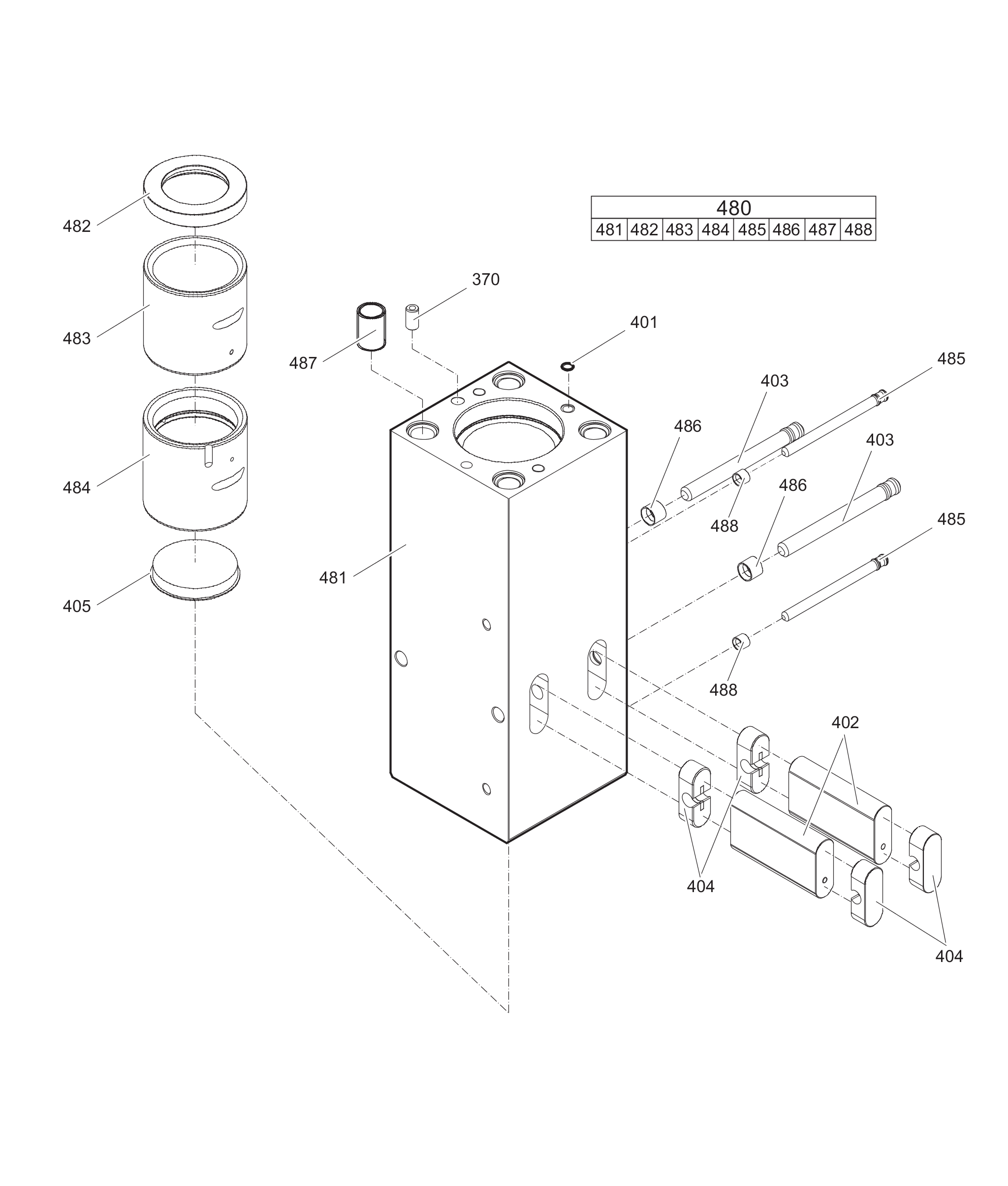

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3360921413 | Lock pin | 1 | ||||
| 3362267586 | SEAL | 1 | ||||
| 3361332227 | Retainer bar | 2 | ||||
| 3362261541 | Bolt | 2 | ||||
| 3362262921 | Plug | 4 | ||||
| 3363091862 | Protective cap | 1 | ||||
| 3363116904 | Lower breaker part complete with lower wear bush bronze | 1 | ||||
| - | Lower breaker part | 1 | ||||
| 3363069081 | Impact ring | 1 | ||||
| 3363069663 | Wear bush | 1 | ||||
| 3363088509 | Wear bush (bronze) | 1 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3362260433 | LOCKING BUSH | 2 | ||||
| 3363085499 | THREADED INSERT | 4 | ||||
| 3361854363 | LOCKING BUSH | 2 |
