Options / accessories
Spare Parts
Optional equipment

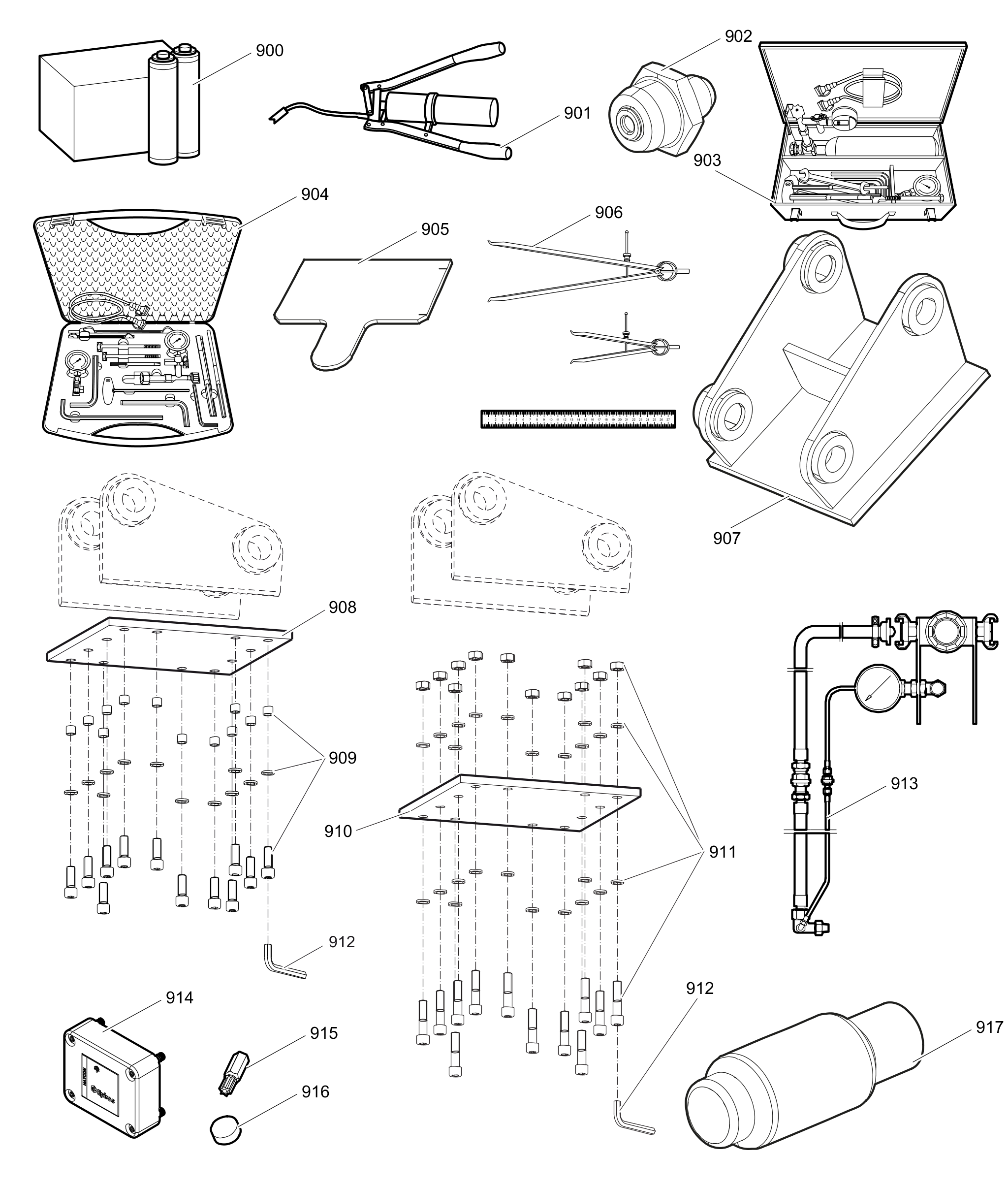

# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363122356 | CHISEL PASTE | 1 | ||||
| 3363091200 | CHISEL PASTE | 1 | ||||
| 3363034567 | GREASE PUMP | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3363089844 | MAINTENANCE BOX | 1 | ||||
| 3363094940 | MAINTENANCE BOX | 1 | ||||
| 3363104899 | TEST GAUGE | 1 | ||||
| 3363094952 | INSIDE CALLIPER | 1 | ||||
| 00015 | ADAPTER PLATE | 1 | ||||
| 3363099795 | BASE PLATE | 1 | ||||
| 3363087303 | BOLT KIT | 1 | ||||
| 3363100699 | BASE PLATE | 1 | ||||
| 3363094575 | BOLT KIT | 1 | ||||
| 3360209445 | ALLEN KEY | 1 | ||||
| 3363090531 | ADAPTER KIT | 1 | ||||
| 3315442500 | HATCON KIT 1 (3G) | 1 | with item 915 and 916Hydraulic breakers are factory equipped with threads for attaching Retrofit kit HATCONfrom s/n DEQ192038 - (HB 2000 with lower wear bush steel)from s/n DEQ192151 - (HB 2000 with lower wear bush bronze)from s/n DEQ200089 - (HB 2000 DP with lower wear bush steel)from s/n DEQ200319 - (HB 2000 DP with lower wear bush bronze) | |||
| 3315442520 | HATCON KIT 1 | 1 | ||||
| 3315439105 | SECURITY BIT | 1 | ||||
| 3315439106 | MAGNET | 1 | ||||
| 3363105733 | PISTON RETAINER | 1 | Consult the authorized Customer Center/Dealer in your area. |
