Service, repair and wear part kits
Spare Parts

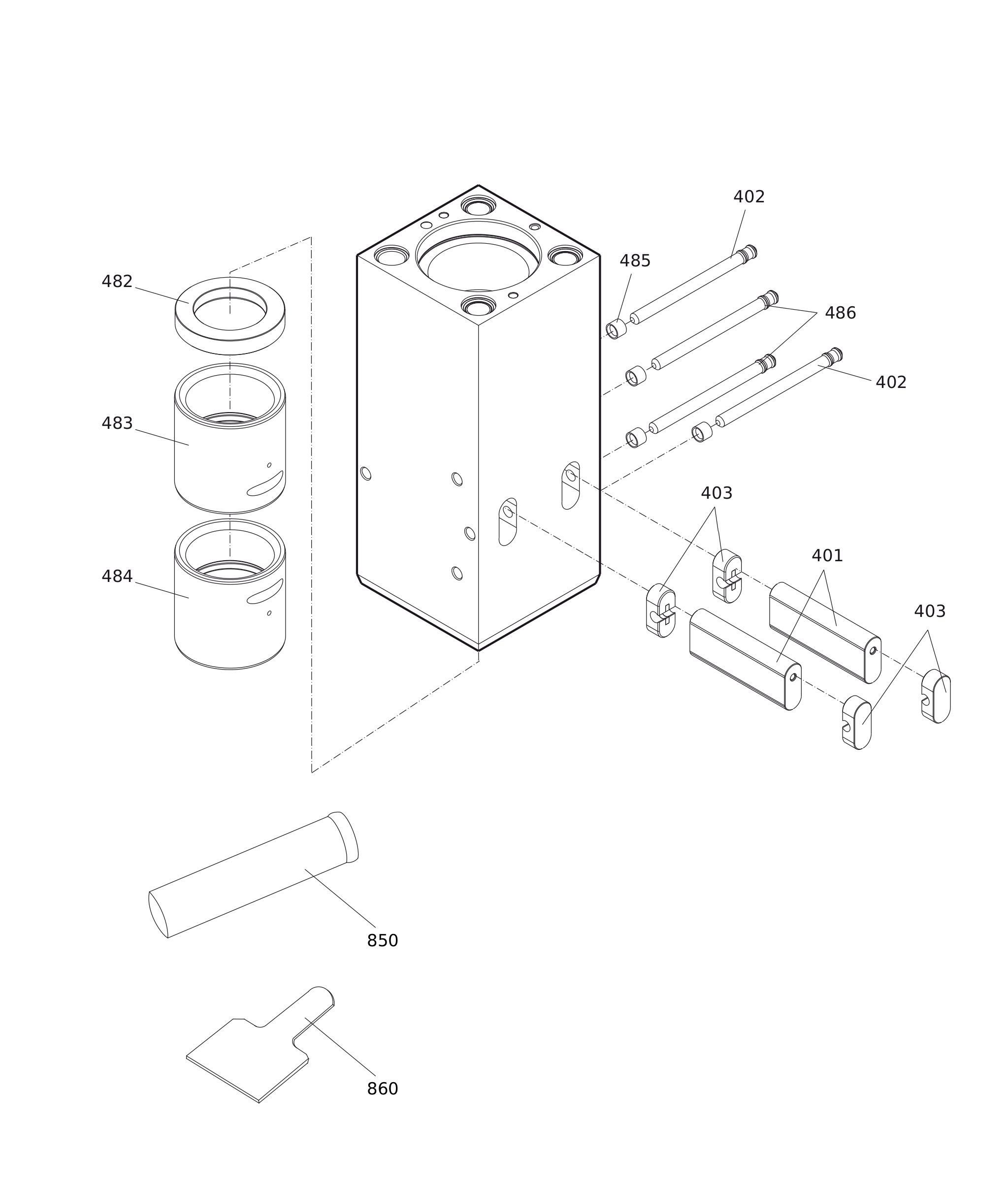

Lower breaker part kit (steel)
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363106934 | Lower breaker part kit (steel) | 1 | ||||
| 3360981927 | Retainer bar | 2 | ||||
| 3360981927 | Retainer bar | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3362262925 | Plug | 4 | ||||
| 3362262925 | Plug | 4 | ||||
| 3363109237 | Impact ring | 1 | ||||
| 3363109237 | Impact ring | 1 | ||||
| 3363109239 | Wear bush | 1 | ||||
| 3363109239 | Wear bush | 1 | ||||
| 3363109241 | Wear bush (steel) | 1 | ||||
| 3363109241 | Wear bush (steel) | 1 | ||||
| 3361854363 | LOCKING BUSH | 4 | ||||
| 3361854363 | LOCKING BUSH | 4 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 | ||||
| 3363104899 | TEST GAUGE | 1 | ||||
| 3363104899 | TEST GAUGE | 1 |
