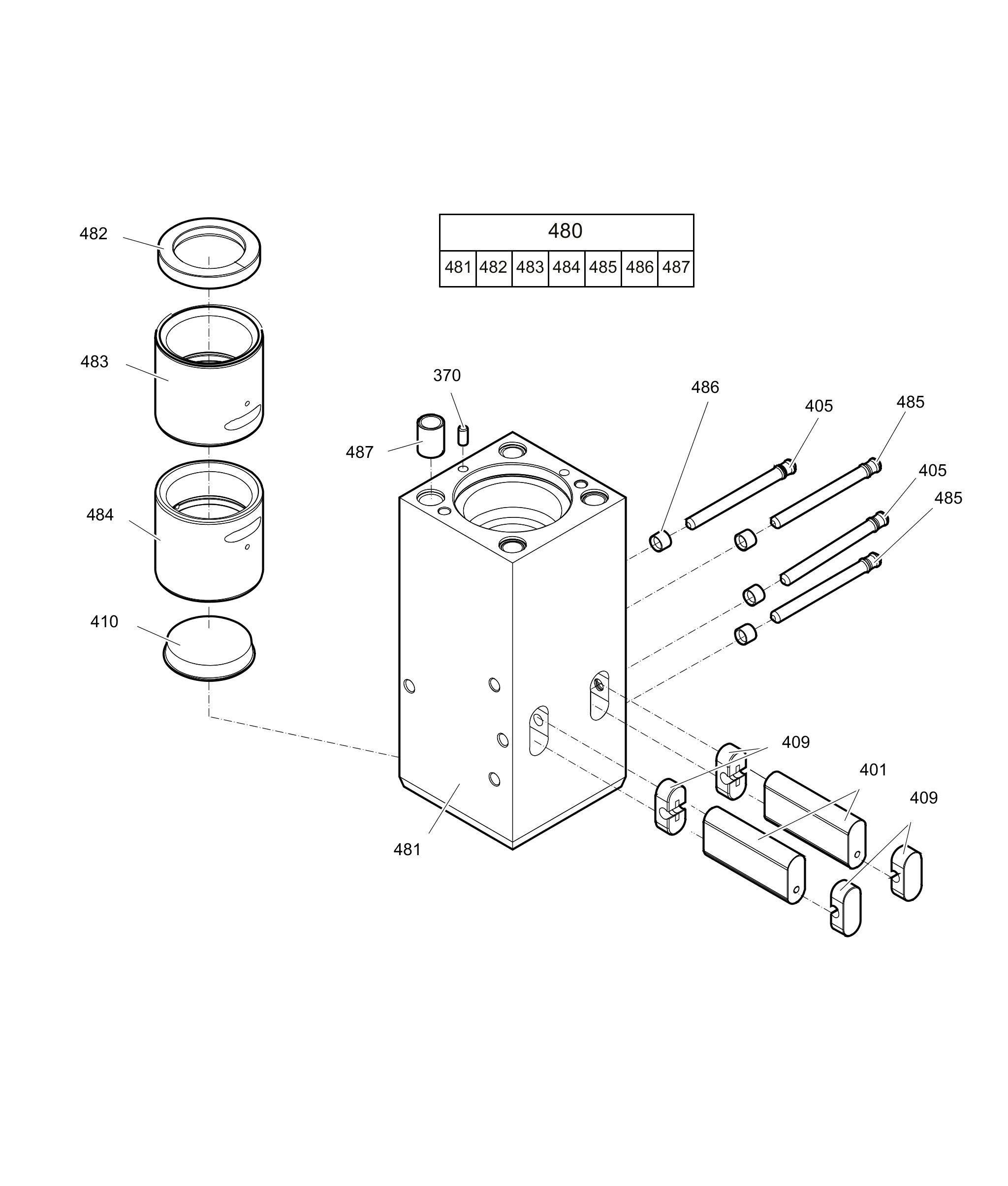

Percussion unit part 3: lower breaker part
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3360921179 | Lock pin | 1 | ||||
| 3363102119 | Retainer bar | 2 | ||||
| 3362261850 | Bolt | 2 | ||||
| 3362262925 | Plug | 4 | ||||
| 3360995339 | Protective cap | 1 | ||||
| 3363098723 | Lower breaker part, complete | 1 | Note: When ordering a lower breaker part for DustProtector version it is imperative to order additionally the base for wiper (item 18) and the wiper (item 19). | |||
| - | Lower breaker part | 1 | ||||
| 3363102129 | IMPACT RING | 1 | ||||
| 3363102131 | Wear Bush | 1 | ||||
| 3363102137 | Wear Bush (steel) | 1 | ||||
| 3362261850 | Bolt | 2 | ||||
| 3361854363 | LOCKING BUSH | 4 | ||||
| 3363031774 | Threaded insert | 4 |
