Mechanical
Spare Parts

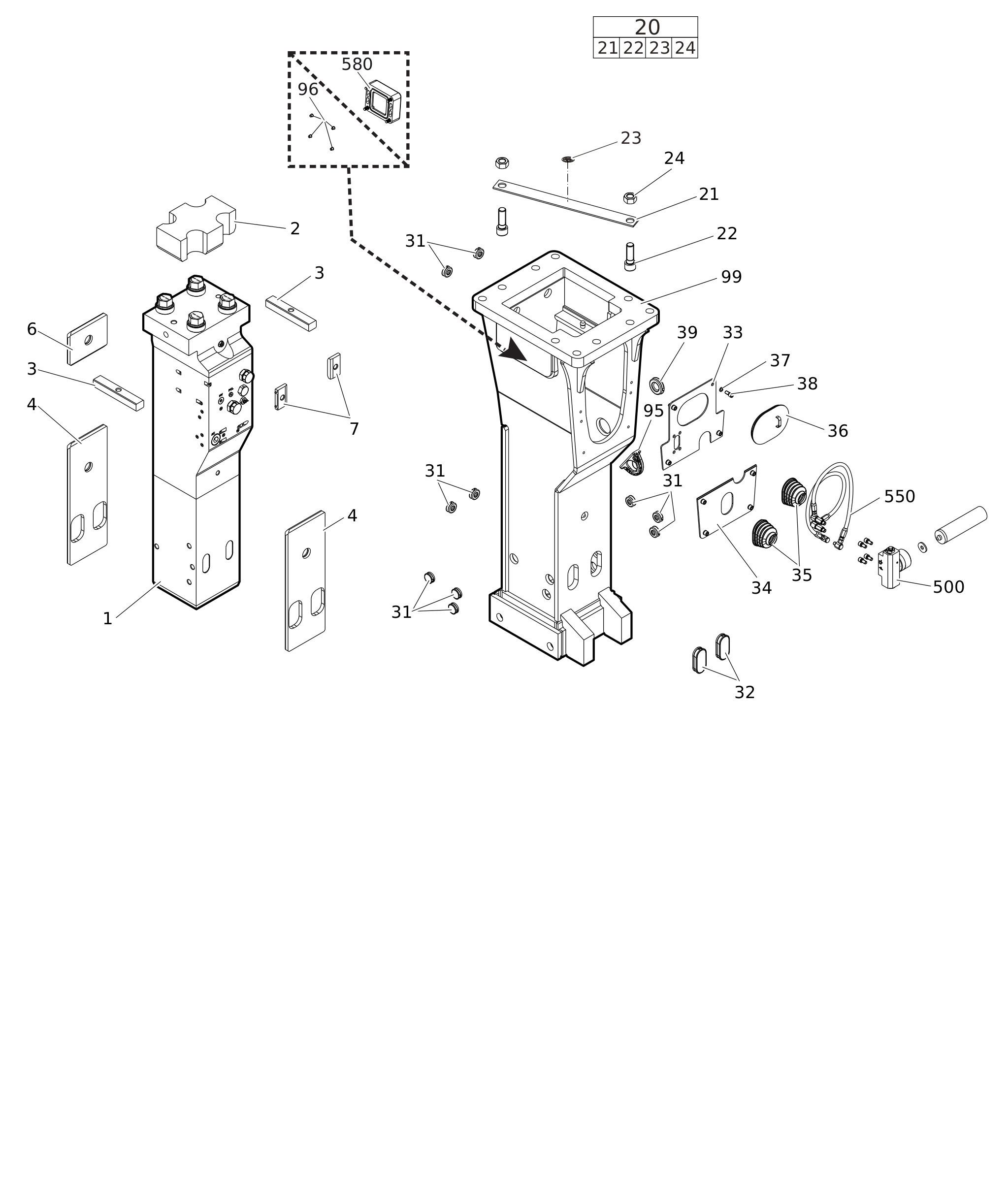

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363102101 | PERCUSSION UNIT | 1 | see separate chapter | |||
| 3363033957 | ELASTIC PAD | 1 | ||||
| 3361847637 | SHOCK ABSORBER | 2 | ||||
| 3363118296 | GUIDE PLATE | 2 | ||||
| 3363115969 | GUIDE PLATE | 1 | ||||
| 3363114321 | GUIDE PLATE | 2 | ||||
| 3363083416 | TRANSPORT SAFETY DEVICE complete | 1 | ||||
| - | TRANSORT SAFETY DEVICE | 1 | ||||
| - | TRANSORT SAFETY DEVICE | 1 | ||||
| 3360026883 | ALLEN SCREW | 2 | ||||
| 3360026883 | ALLEN SCREW | 2 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3363091872 | LABEL TRANSPORT SAFETY DEVICE | 1 | ||||
| 3360103254 | NUT | 2 | ||||
| 3360103254 | NUT | 2 | ||||
| 3363086015 | PLUG | 10 | ||||
| 3363086011 | PLUG | 2 | ||||
| 3363120015 | PLATE | 1 | ||||
| 3363120016 | PLATE | 1 | ||||
| 3363118186 | BELLOWS | 2 | ||||
| 3363092697 | COVER | 1 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 8 | ||||
| 3362328480 | ALLEN SCREW | 8 | ||||
| 3362267893 | PLUG | 1 | ||||
| 3363111994 | LIFTING EYE | 1 | professional welding process necessary | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for hydraulic breakers without HATCON | |||
| 3363120011 | BREAKER BOX | 1 | with item 95 and 96 | |||
| 3363067123 | AUTOMATIC LUBRICATION SYSTEM | 1 | ||||
| 3363120014 | CONNECTING KIT FOR AUTOMATIC LUBRICATION SYSTEM | 1 | see separate chapter | |||
| 3315439180 | HATCON | 1 | only for hydraulic breakers with HATCON / see separate chapter |
