Service, repair and wear part kits
Spare Parts

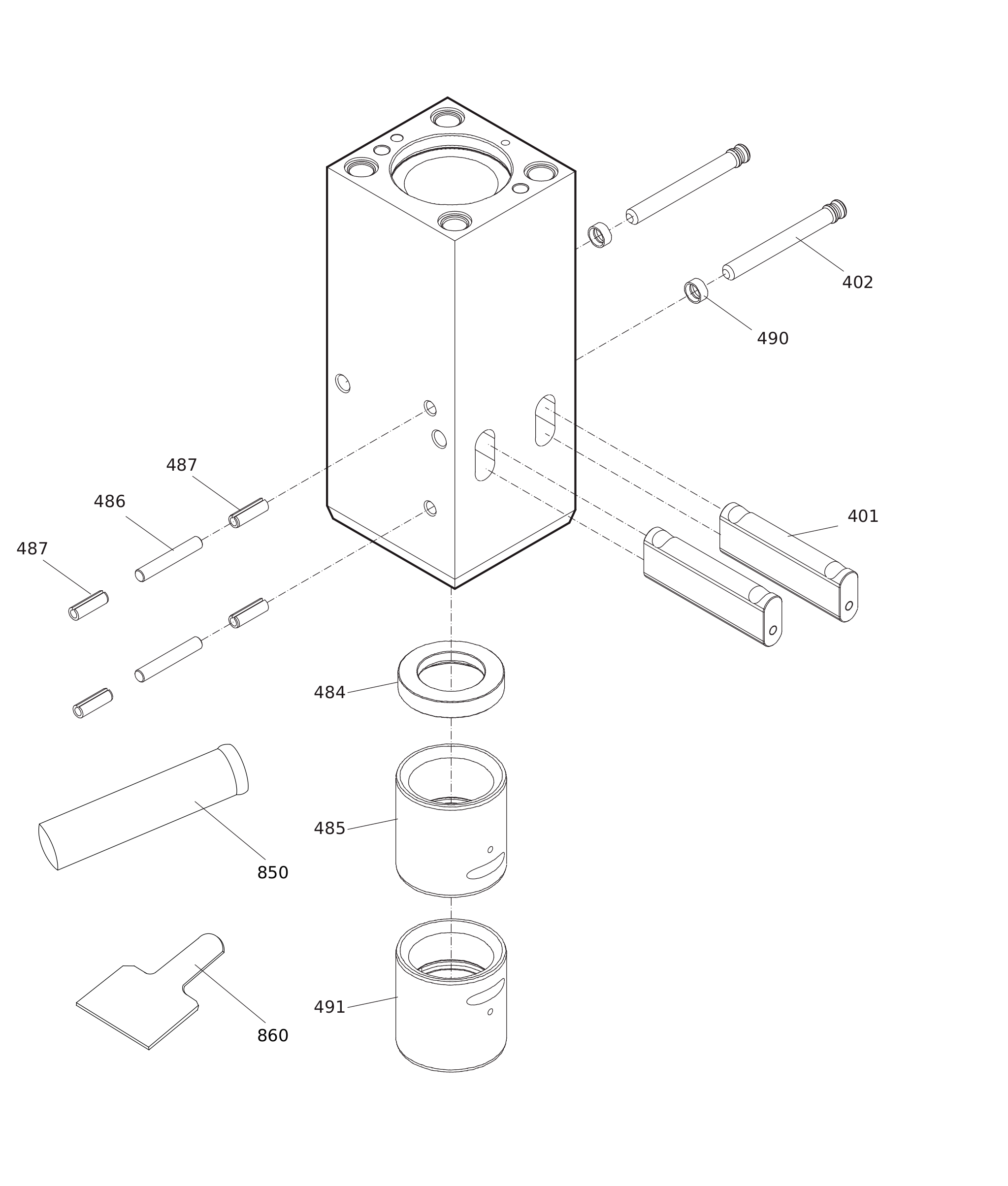

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363103484 | Lower breaker part kit (steel) | 1 | ||||
| 3363104779 | Retainer bar | 2 | ||||
| 3363104781 | Bolt | 2 | ||||
| 3363092889 | Impact ring | 1 | ||||
| 3363092891 | Wear bush | 1 | ||||
| 3362261509 | PIN | 2 | ||||
| 3363091201 | SPRING DOWEL SLEEVE | 4 | ||||
| 3363033043 | Locking bush | 2 | ||||
| 3363104777 | Wear bush (steel) | 1 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 | ||||
| 3362235293 | TEST GAUGE LOWER WEAR BUSH | 1 |
