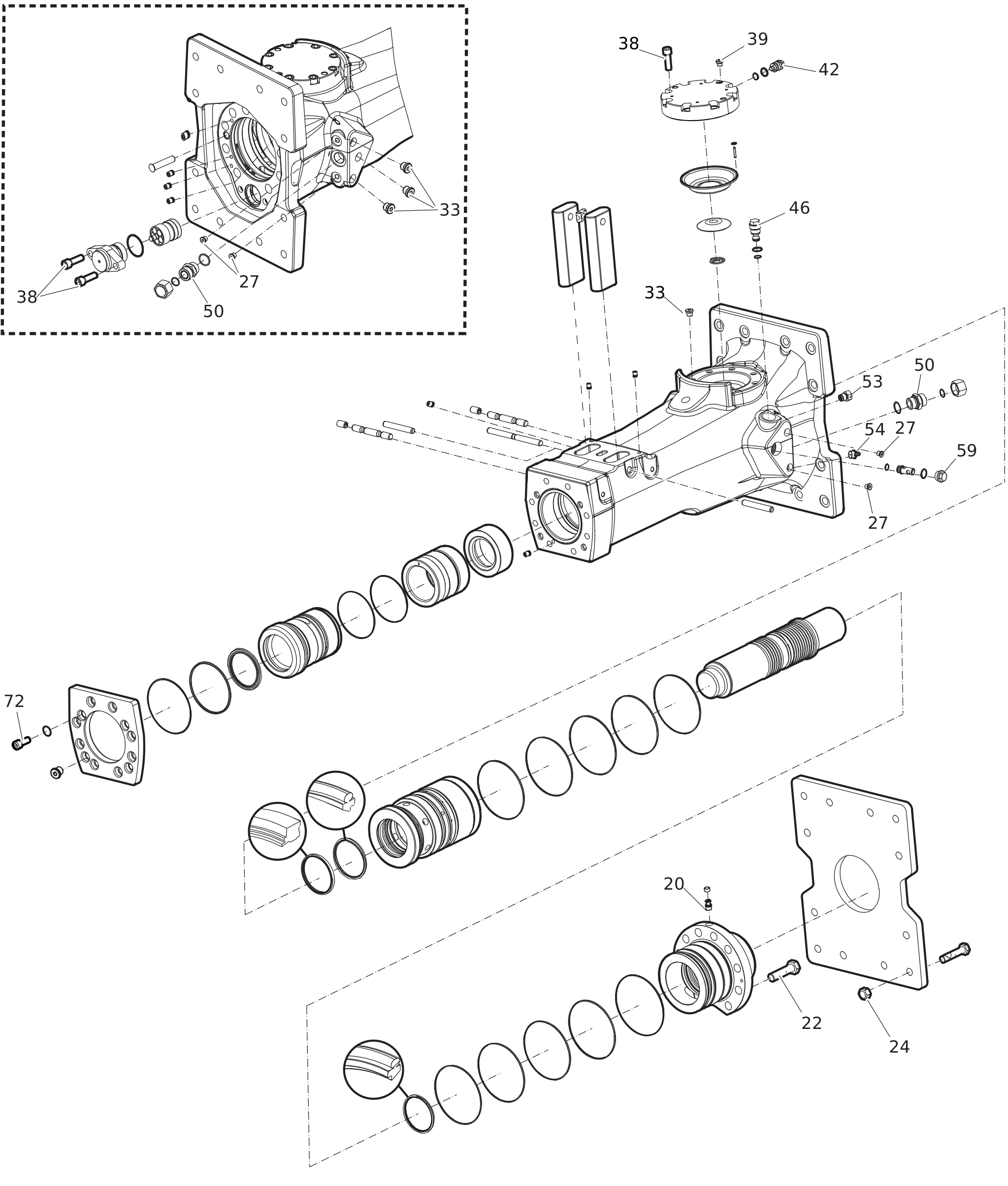

Tightening torque
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | CHECK VALVE - 30 Nm (22 ft lbf) | 1 | ||||
| - | HEXAGON HEAD SCREW - 550 Nm (406 ft lbf) | 1 | ||||
| - | NUT - 400 Nm (295 ft lbf) | 1 | ||||
| - | PLUG - 30 Nm (22 ft lbf) | 1 | ||||
| - | PLUG - 80 Nm (59 ft lbf) | 1 | ||||
| - | HEXAGON SOCKET SCREW - 300 Nm (221 ft lbf) | 1 | ||||
| - | PLUG - 20 Nm (15 ft lbf) | 1 | ||||
| - | VALVE - 27 Nm (20 ft lbf) | 1 | ||||
| - | PRESSURE RELIEF VALVE - 80 Nm (59 ft lbf) | 1 | ||||
| - | PIPE COUPLING - 315 Nm (232 ft lbf) | 1 | ||||
| - | NON RETURN VALVE - 200 Nm (148 ft lbf) | 1 | ||||
| - | GREASE NIPPLE - 30 Nm (22 ft lbf) | 1 | ||||
| - | RESTRICTOR PLUG - 80 Nm (59 ft lbf) | 1 | ||||
| - | HEXAGON SOCKET SCREW - 180 Nm (133 ft lbf) | 1 |
