Mechanical
Spare Parts

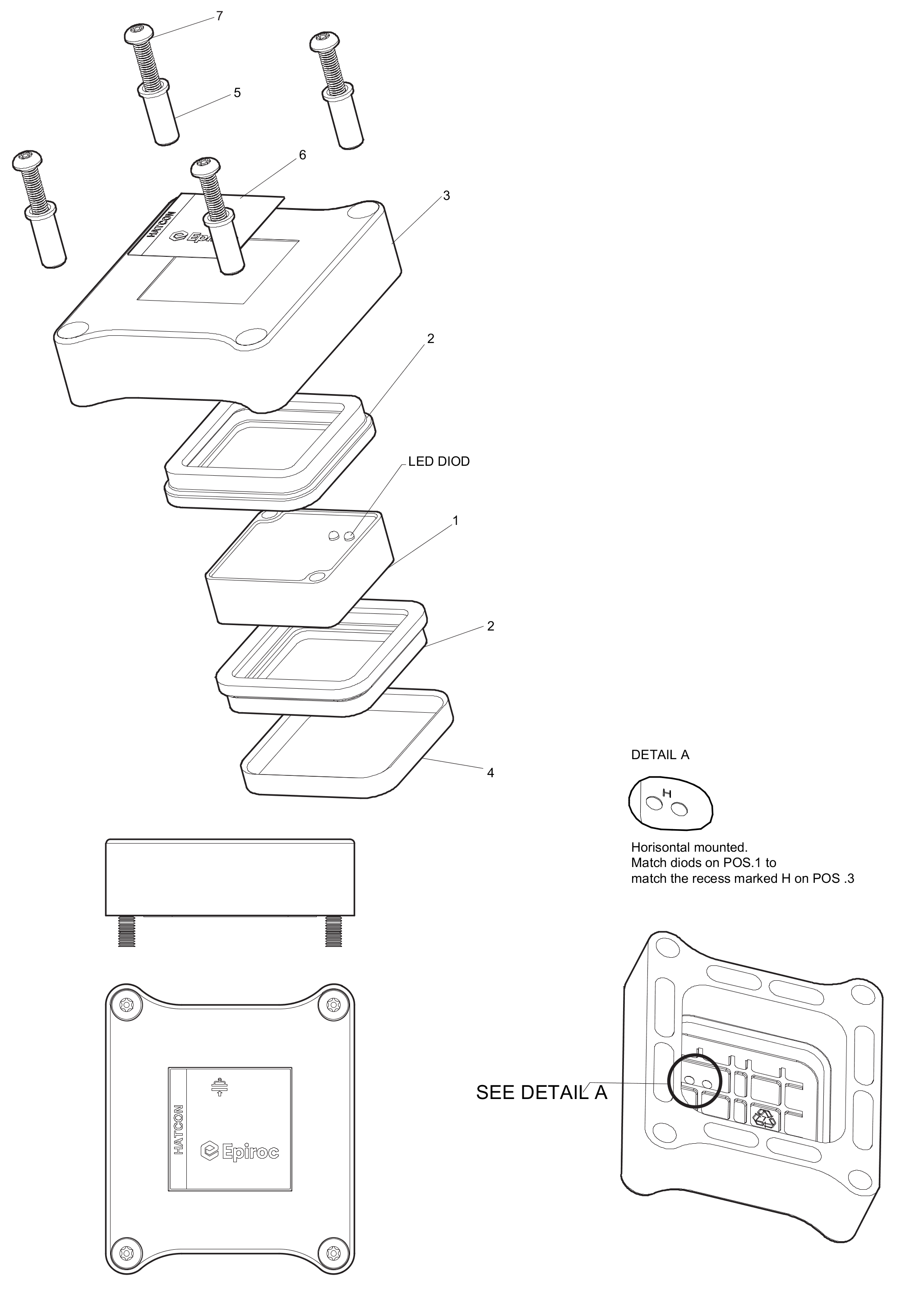

HATCON (Horizontal)
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | TRACKING MODULE HATCON | 1 | ||||
| 3315439130 | Damper | 2 | ||||
| 3315439118 | HOUSING TYPE 4 HATCON | 1 | ||||
| 3315439140 | Lock ring | 1 | ||||
| 3315439120 | Sleeve | 4 | ||||
| 3315439100 | Label | 1 | ||||
| 3315442600 | Screw | 4 |
Spare Parts
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | TRACKING MODULE HATCON | 1 | ||||
| 3315439130 | Damper | 2 | ||||
| 3315439118 | HOUSING TYPE 4 HATCON | 1 | ||||
| 3315439140 | Lock ring | 1 | ||||
| 3315439120 | Sleeve | 4 | ||||
| 3315439100 | Label | 1 | ||||
| 3315442600 | Screw | 4 |
