Mechanical
Spare Parts

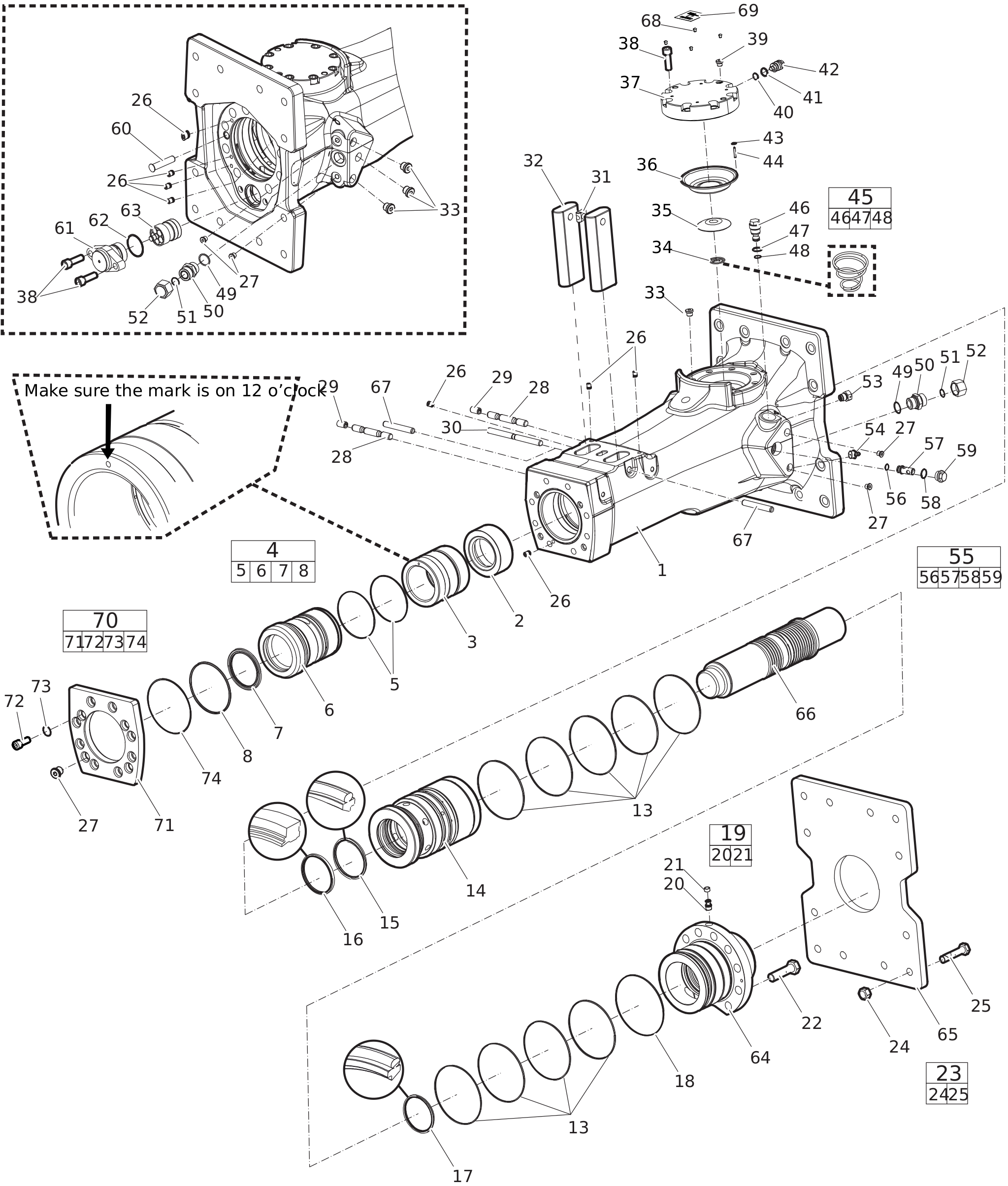

Hydraulic breaker
# | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | HAMMER BODY | 1 | ||||
| - | HAMMER BODY | 1 | ||||
| - | HAMMER BODY | 1 | ||||
| - | HAMMER BODY | 1 | ||||
| 3315388200 | STOP RING | 1 | ||||
| 3315395000 | WEAR BUSH | 1 | ||||
| 3315409707 | WEAR BUSH, complete | 1 | ||||
| 0663210824 | O-RING | 2 | ||||
| - | WEAR BUSH | 1 | ||||
| 3315388700 | SCRAPER RING | 1 | ||||
| 0663210658 | O-RING | 1 | ||||
| 0663990040 | O-RING | 9 | ||||
| 3315409000 | LINER | 1 | ||||
| 0665070158 | PISTON ROD SEAL | 1 | ||||
| 0665909955 | WIPER | 1 | ||||
| 0665070157 | PISTON ROD SEAL | 1 | ||||
| 0663211649 | O-RING | 1 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 0147163803 | SCREW, HEX HEAD | 10 | ||||
| 3315323990 | BOLT KIT | 1 | ||||
| 0266211600 | NUT | 12 | ||||
| - | HEXAGON HEAD SCREW | 12 | ||||
| 0686100009 | PLUG | 8 | ||||
| 0686644207 | PLUG | 8 | ||||
| 3315395700 | LOCKING PIN | 2 | ||||
| 0108110322 | SPRING PIN | 2 | ||||
| 3315397200 | LOCKING PIN | 1 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| 3315388300 | RETAINER BAR | 2 | ||||
| 0686371801 | PLUG | 4 | ||||
| 3315303500 | COIL SPRING | 1 | ||||
| 3315388500 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315416300 | DIAPHRAGM | 1 | ||||
| 3315303100 | DIAPHRAGM COVER | 1 | ||||
| 0211196544 | HEXAGON SOCKET SCREW | 10 | ||||
| 0686371805 | PLUG | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 3315366000 | VALVE | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0101414000 | PIN | 1 | ||||
| 3315400900 | PRESSURE RELIEF VALVE, complete | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| 0663910401 | O-RING | 1 | ||||
| 0663910401 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0664000005 | SEAL RING | 1 | ||||
| 0580001476 | PIPE COUPLING | 1 | ||||
| 0663211125 | O-RING | 1 | ||||
| 0686925031 | Cap | 2 | ||||
| 3363109435 | NON RETURN VALVE | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ISO 7 - R 1/4 | |||
| 3315409703 | RESTRICTOR, complete | 1 | ||||
| - | RESTRICTOR, ø 8.4 mm (ø 0.33 in.) | 1 | ||||
| - | RESTRICTOR, ø 8.4 mm (ø 0.33 in.) | 1 | ||||
| - | RESTRICTOR, ø 8.4 mm (ø 0.33 in.) | 1 | ||||
| - | RESTRICTOR PLUG | 1 | ||||
| 3315397900 | PLUG | 1 | ||||
| 3315388000 | VALVE COVER | 1 | ||||
| 0663990041 | SEAL RING | 1 | ||||
| 3315388100 | CONTROL VALVE | 1 | ||||
| 3315387600 | BACK HEAD | 1 | ||||
| 3315398800 | BASE PLATE with through borings | 1 | ||||
| 3315387900 | PISTON | 1 | ||||
| 0108110326 | SPRING PIN, option | 2 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3315439101 | HATCON LABEL | 1 | ||||
| 3315409706 | WEAR PLATE, complete | 1 | ||||
| - | WEAR PLATE | 1 | ||||
| 3315431101 | HEXAGON SOCKET SCREW | 8 | ||||
| 0333520027 | LOCK WASHER | 8 | ||||
| 0663211647 | O-RING | 1 |
