Service, repair and wear parts Kits
Spare Parts

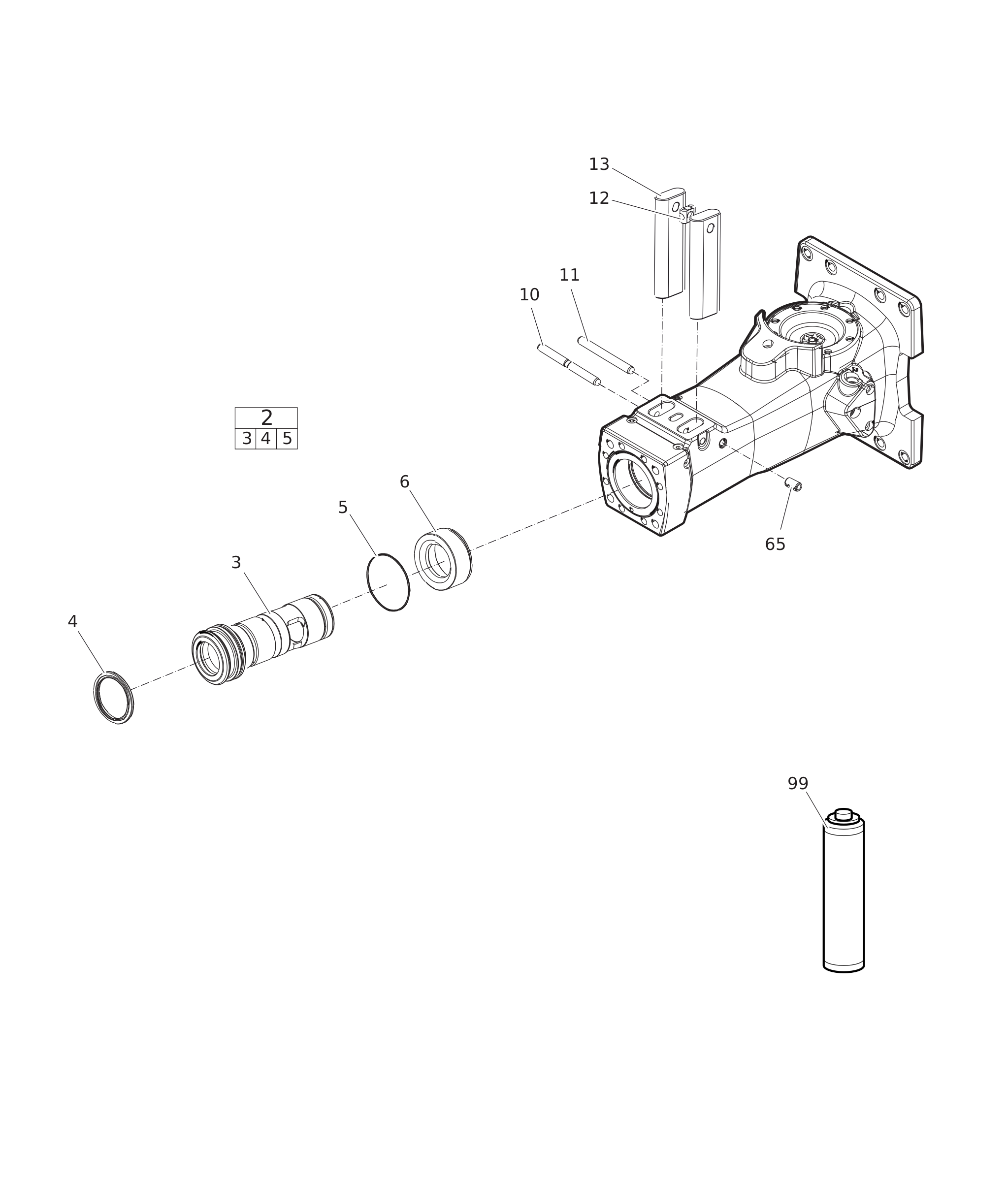

Lower hammer part kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | LOWER HAMMER PART KIT | 1 | ||||
| 3315435060 | BUSHING, complete | 1 | ||||
| - | BUSHING, Ø 129 mm (Ø 5.08 in.) | 1 | ||||
| 3315353600 | SCRAPER RING | 1 | ||||
| 0663714700 | O-RING | 4 | ||||
| 3315312300 | STOP RING | 1 | ||||
| 3315155810 | LOCK PIN | 1 | ||||
| 3315434900 | BUSHING PIN | 1 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| 3315155710 | RETAINER BAR | 2 | ||||
| 0108110322 | SPRING PIN | 1 | ||||
| - | BIO CHISEL PASTE CARTRIDGE, 1 x 400 g (0.88 lbs) | 1 |
