Service, repair and wear part kits
Spare Parts

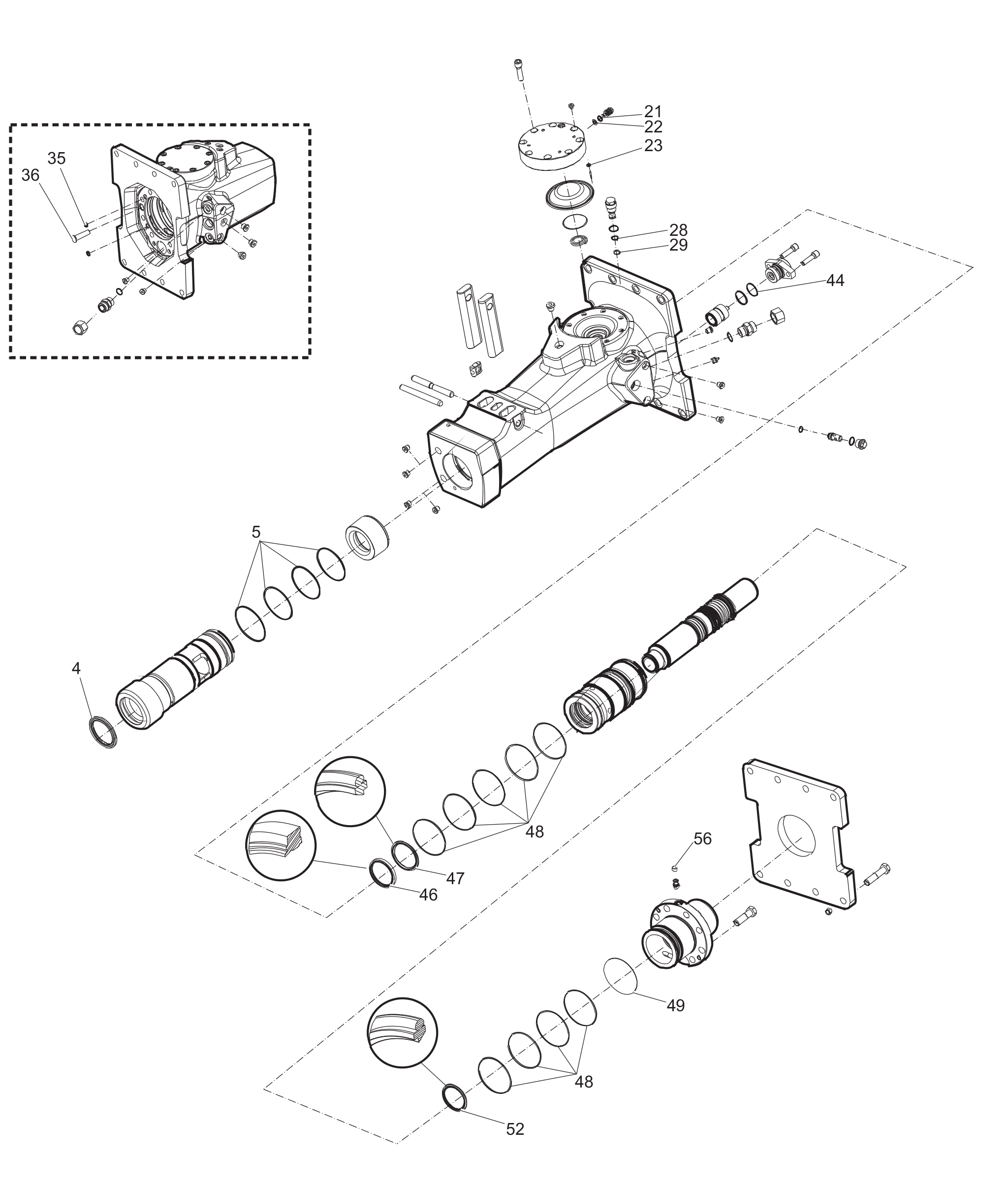

Seal kit
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3315301890 | SEAL KIT | 1 | ||||
| 3315325000 | SCRAPER RING | 1 | ||||
| 0663210617 | O-RING | 4 | ||||
| 0663212000 | O-RING | 1 | ||||
| 3115329002 | SEAL RING | 2 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0663210421 | O-RING | 2 | ||||
| 0661200401 | BACK-UP RING | 1 | ||||
| 0665090014 | SEAL RING | 2 | ||||
| 3315336700 | PLUG | 1 | ||||
| 0663211444 | O-RING | 2 | ||||
| 0665909957 | WIPER | 1 | ||||
| 0665070137 | PISTON ROD SEAL | 1 | ||||
| 0663990031 | SEAL RING | 9 | ||||
| 0663210669 | O-RING | 1 | ||||
| 0665070146 | PISTON ROD SEAL | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 9125621100 | O-RING | 2 |
