Mechanical
Spare Parts

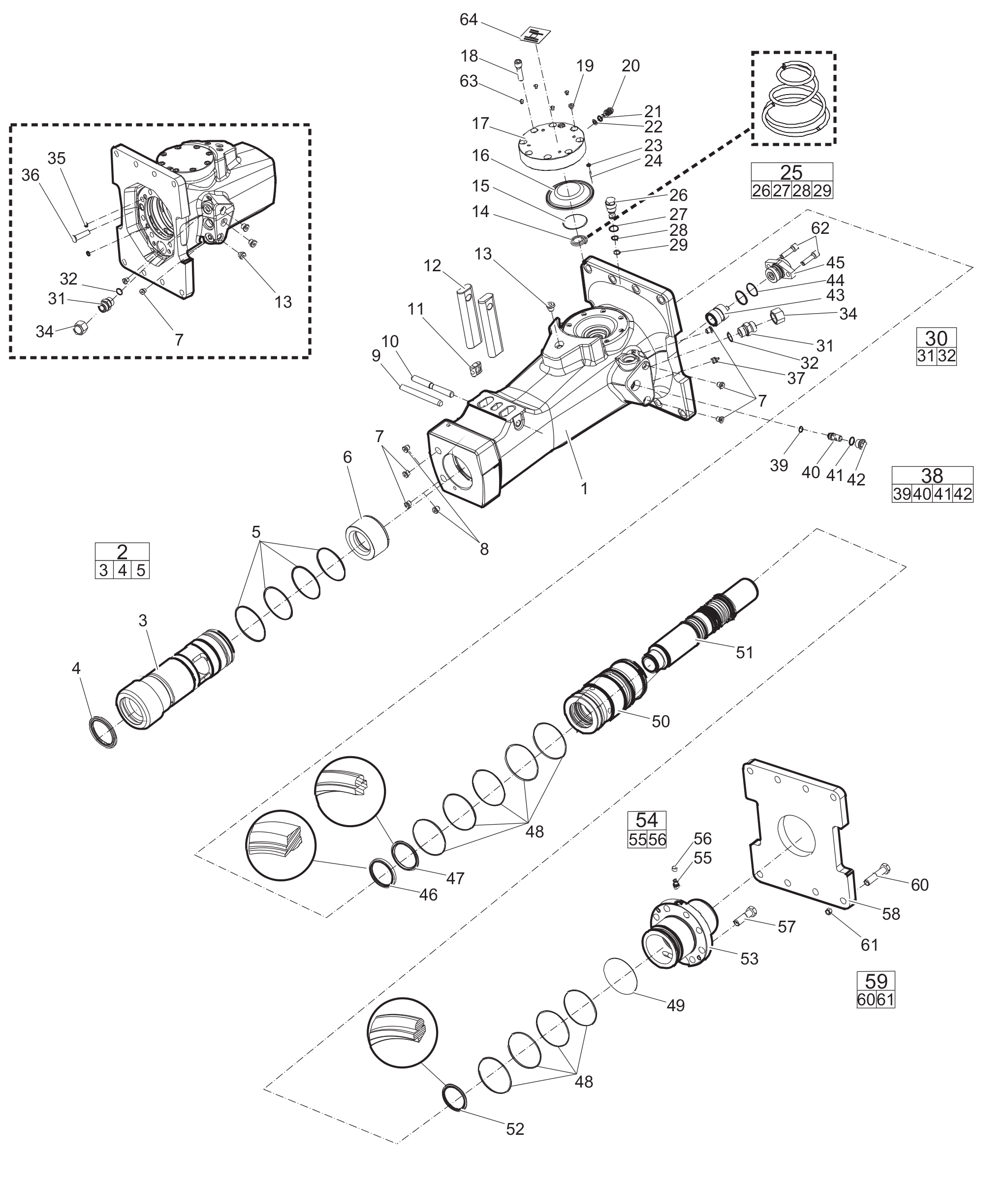

Hydraulic breaker
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| 3315301980 | BUSHING, complete | 1 | ||||
| - | BUSHING, Ø 110 mm (Ø 4.33 in.) | 1 | ||||
| - | BUSHING, Ø 110 mm (Ø 4.33 in.) | 1 | ||||
| 3315325000 | SCRAPER RING | 1 | ||||
| 0663210617 | O-RING | 4 | ||||
| 3315301400 | STOP RING | 1 | ||||
| 0686644207 | PLUG | 7 | ||||
| 3315395200 | WATER NOSSLE | 2 | ||||
| 0108169128 | SPRING PIN | 1 | ||||
| 3315203100 | LOCK PIN | 1 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| 3315203000 | RETAINER BAR | 2 | ||||
| 0686371801 | PLUG | 4 | ||||
| 3315303500 | COIL SPRING | 1 | ||||
| 3315400700 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315235000 | DIAPHRAGM | 1 | ||||
| 3315348700 | ACCUMULAT.HOUSE | 1 | ||||
| 0211196534 | HEX SOCK. SCREW | 8 | ||||
| 0686371805 | PLUG | 1 | ||||
| 3315366000 | VALVE | 1 | ||||
| 0663212000 | O-RING | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0101414000 | PIN | 1 | ||||
| 3315365800 | PRESSURE RELIEF VALVE, complete | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| 0663212141 | O-RING | 1 | ||||
| 0663212141 | O-RING | 1 | ||||
| 0663210421 | O-RING | 1 | ||||
| 0663210421 | O-RING | 1 | ||||
| 0661200401 | BACK-UP RING | 1 | ||||
| 0580001845 | NIPPLE, complete | 1 | ||||
| - | FITTING | 2 | ||||
| - | FITTING | 2 | ||||
| 0664000004 | SEAL RING | 1 | ||||
| 3361353486 | COVER | 2 | ||||
| 0665090014 | SEAL RING | 2 | ||||
| 3315336700 | PLUG | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ||||
| 3315369464 | RESTRICTOR, complete | 1 | ||||
| - | RESTRICTOR, standard Ø 6.4 mm (Ø 0.25 in.) | 1 | ||||
| - | RESTRICTOR, standard Ø 6.4 mm (Ø 0.25 in.) | 1 | ||||
| 3315369200 | RESTRICTOR PLUG | 1 | ||||
| 3315277600 | CONTROL VALVE | 1 | ||||
| 0663211444 | O-RING | 2 | ||||
| 3315352013 | VALVE COVER | 1 | ||||
| 0665909957 | WIPER | 1 | ||||
| 0665070137 | PISTON ROD SEAL | 1 | ||||
| 0663990031 | SEAL RING | 9 | ||||
| 0663210669 | O-RING | 1 | ||||
| 3315301700 | LINER | 1 | ||||
| 3315302100 | PISTON | 1 | ||||
| 0665070146 | PISTON ROD SEAL | 1 | ||||
| 3315302000 | BACK HEAD | 1 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| - | Check valve | 1 | ||||
| - | Check valve | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 0147148103 | SCREW, HEX HEAD | 8 | ||||
| 3315356600 | BASE PLATE | 1 | ||||
| 3315365360 | SCREW SET | 1 | ||||
| - | SCREW, M16 x 90 mm 8.8 | 8 | ||||
| - | SCREW, M16 x 90 mm 8.8 | 8 | ||||
| - | NUT, M16 | 8 | ||||
| - | NUT, M16 | 8 | ||||
| 0211110349 | SCREW, M14 x 65 mm (2.56 in.) | 2 | Screw with extra high fatigue strength. | |||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3315439101 | HATCON LABEL | 1 |
