Mechanical

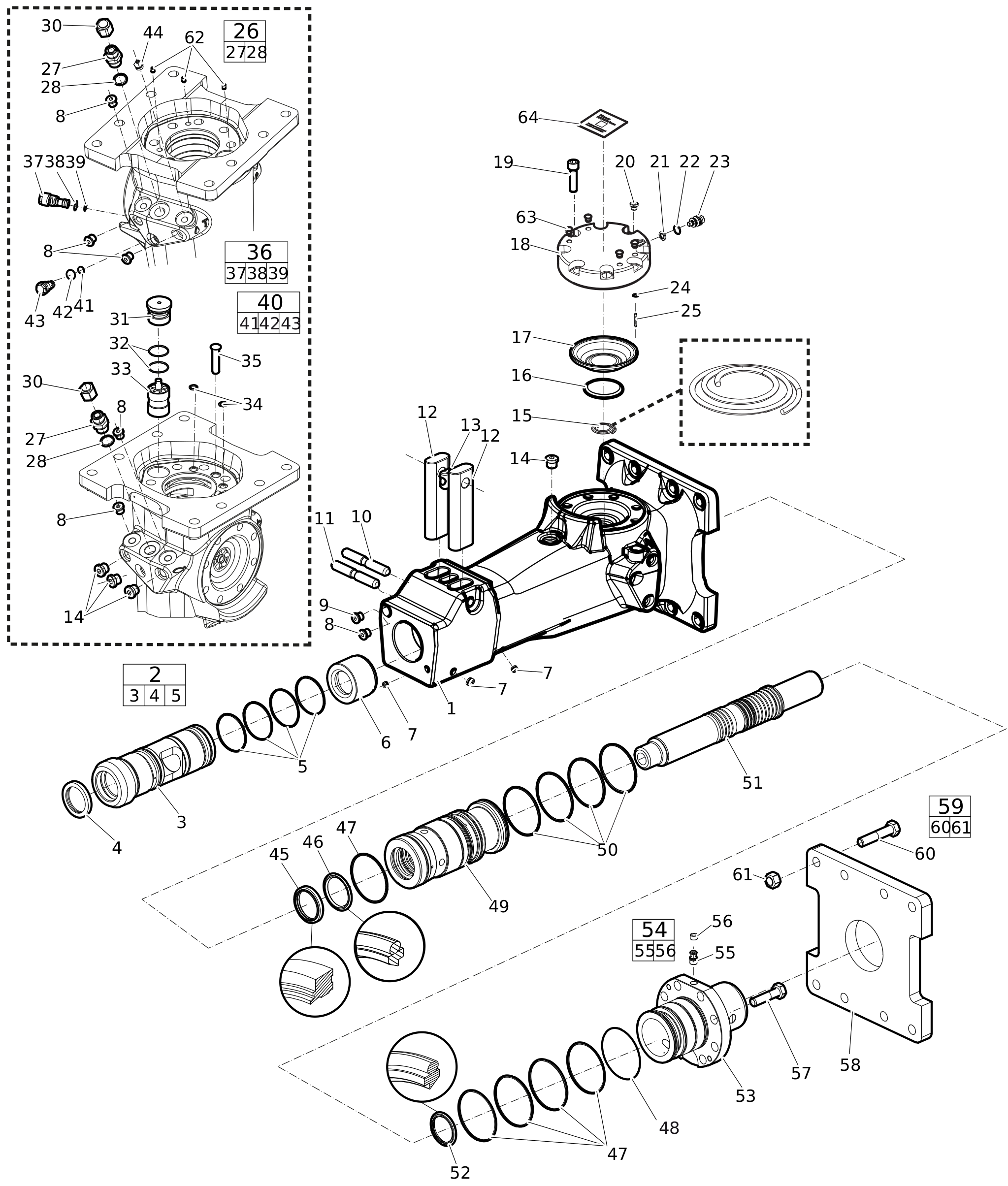

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | BREAKER BODY | 1 | ||||
| - | BREAKER BODY | 1 | ||||
| 3315353980 | BUSHING STANDARD, complete | 1 | ||||
| 3315353980 | BUSHING STANDARD, complete | 0 | ||||
| - | BUSHING, Ø 75 mm (Ø 2.95 in.) | 1 | ||||
| 3315356400 | SCRAPER RING | 1 | ||||
| 0663210289 | O-RING | 4 | ||||
| 3315291800 | STOP RING | 1 | ||||
| 3315291800 | STOP RING | 0 | ||||
| 5750533851 | PLUG | 3 | ||||
| 5750533851 | PLUG | 0 | ||||
| 0686644207 | PLUG | 0 | ||||
| 0686644207 | PLUG | 6 | ||||
| 3315395200 | WATER NOSSLE | 0 | ||||
| 3315395200 | WATER NOSSLE | 1 | ||||
| 3315293000 | LOCK PIN | 1 | ||||
| 3315293000 | LOCK PIN | 0 | ||||
| 0108169126 | SPRING PIN, option | 1 | ||||
| 0108169126 | SPRING PIN, option | 0 | ||||
| 3315134900 | RETAINER BAR | 0 | ||||
| 3315134900 | RETAINER BAR | 2 | ||||
| 3315141900 | LOCK BUFFER | 0 | ||||
| 3315141900 | LOCK BUFFER | 1 | ||||
| 0686371801 | PLUG | 0 | ||||
| 0686371801 | PLUG | 4 | ||||
| 3315359600 | COIL SPRING | 1 | ||||
| 3315359600 | COIL SPRING | 0 | ||||
| 3315359500 | DIAPHRAGM SUPPORT | 0 | ||||
| 3315359500 | DIAPHRAGM SUPPORT | 1 | ||||
| 3315289000 | DIAPHRAGM | 1 | ||||
| 3315289000 | DIAPHRAGM | 0 | ||||
| 3315282410 | ACCUMULATOR HOUSE | 1 | ||||
| 3315282410 | ACCUMULATOR HOUSE | 0 | ||||
| 0211196534 | HEX SOCK. SCREW | 0 | ||||
| 0211196534 | HEX SOCK. SCREW | 8 | ||||
| 0686371805 | PLUG | 0 | ||||
| 0686371805 | PLUG | 1 | ||||
| 3115329002 | SEAL RING | 1 | ||||
| 3115329002 | SEAL RING | 0 | ||||
| 0663212000 | O-RING | 1 | ||||
| 0663212000 | O-RING | 0 | ||||
| 3315366000 | VALVE | 0 | ||||
| 3315366000 | VALVE | 1 | ||||
| 0663211400 | O-RING | 1 | ||||
| 0663211400 | O-RING | 0 | ||||
| 0101414000 | PIN | 0 | ||||
| 0101414000 | PIN | 1 | ||||
| 0580001846 | PIPE COUPLING | 0 | ||||
| 0580001846 | PIPE COUPLING | 1 | ||||
| - | NIPPLE | 1 | ||||
| 0664000003 | SEAL RING | 2 | ||||
| 0570700019 | CAP | 0 | ||||
| 0570700019 | CAP | 2 | ||||
| 3315364000 | VALVE COVER | 1 | ||||
| 3315364000 | VALVE COVER | 0 | ||||
| 0663211490 | O-RING | 0 | ||||
| 0663211490 | O-RING | 2 | ||||
| 3315291910 | CONTROL VALVE | 1 | ||||
| 3315291910 | CONTROL VALVE | 0 | ||||
| 0665090014 | SEAL RING | 0 | ||||
| 0665090014 | SEAL RING | 2 | ||||
| 3315305000 | PLUG | 1 | ||||
| 3315305000 | PLUG | 0 | ||||
| 3315335000 | PRESSURE RELIEF VALVE, complete | 0 | ||||
| 3315335000 | PRESSURE RELIEF VALVE, complete | 1 | ||||
| - | PRESSURE RELIEF VALVE | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| 0663903201 | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| - | O-RING | 1 | ||||
| 3315369551 | RESTRICTOR STANDARD, complete Ø 5.1 mm (Ø 0.20 in.) | 0 | ||||
| 3315369551 | RESTRICTOR STANDARD, complete Ø 5.1 mm (Ø 0.20 in.) | 1 | ||||
| - | RESTRICTOR, Ø 5.5 mm (Ø 0.22 in.) | 1 | ||||
| 3360433774 | GREASE NIPPLE | 1 | ISO 7-R 1/4 | |||
| 3360433774 | GREASE NIPPLE | 0 | ||||
| 0665909954 | WIPER | 1 | ||||
| 0665909954 | WIPER | 0 | ||||
| 0665070131 | PISTON ROD SEAL | 0 | ||||
| 0665070131 | PISTON ROD SEAL | 1 | ||||
| 0663211456 | O-RING | 5 | ||||
| 0663211456 | O-RING | 0 | ||||
| 0663210631 | O-RING | 1 | ||||
| 0663210631 | O-RING | 0 | ||||
| 3315291300 | LINER | 1 | ||||
| 3315291300 | LINER | 0 | ||||
| 0663210053 | O-RING | 0 | ||||
| 0663210053 | O-RING | 4 | ||||
| 3315291700 | PISTON | 0 | ||||
| 3315291700 | PISTON | 1 | ||||
| 0665070132 | PISTON ROD SEAL | 0 | ||||
| 0665070132 | PISTON ROD SEAL | 1 | ||||
| 3315293900 | BACK HEAD | 1 | ||||
| 3315293900 | BACK HEAD | 0 | ||||
| 3315244881 | CHECK VALVE, complete | 0 | ||||
| 3315244881 | CHECK VALVE, complete | 1 | ||||
| - | CHECK VALVE | 1 | ||||
| 3315280800 | VALVE RUBBER | 1 | ||||
| 3315431201 | HEXAGON BOLT | 8 | ||||
| 3315431201 | HEXAGON BOLT | 0 | ||||
| 3315304300 | BASE PLATE with through borings | 1 | ||||
| 3315304300 | BASE PLATE with through borings | 0 | ||||
| 3315296490 | BOLT KIT | 0 | ||||
| 3315296490 | BOLT KIT | 1 | ||||
| - | SCREW | 8 | ||||
| - | NUT | 8 | ||||
| 3315442601 | PLUG | 1 | ||||
| 3315442601 | PLUG | 0 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 0 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | ||||
| 3315439101 | HATCON LABEL | 1 | ||||
| 3315439101 | HATCON LABEL | 0 |
