Option/accessories
Spare Parts

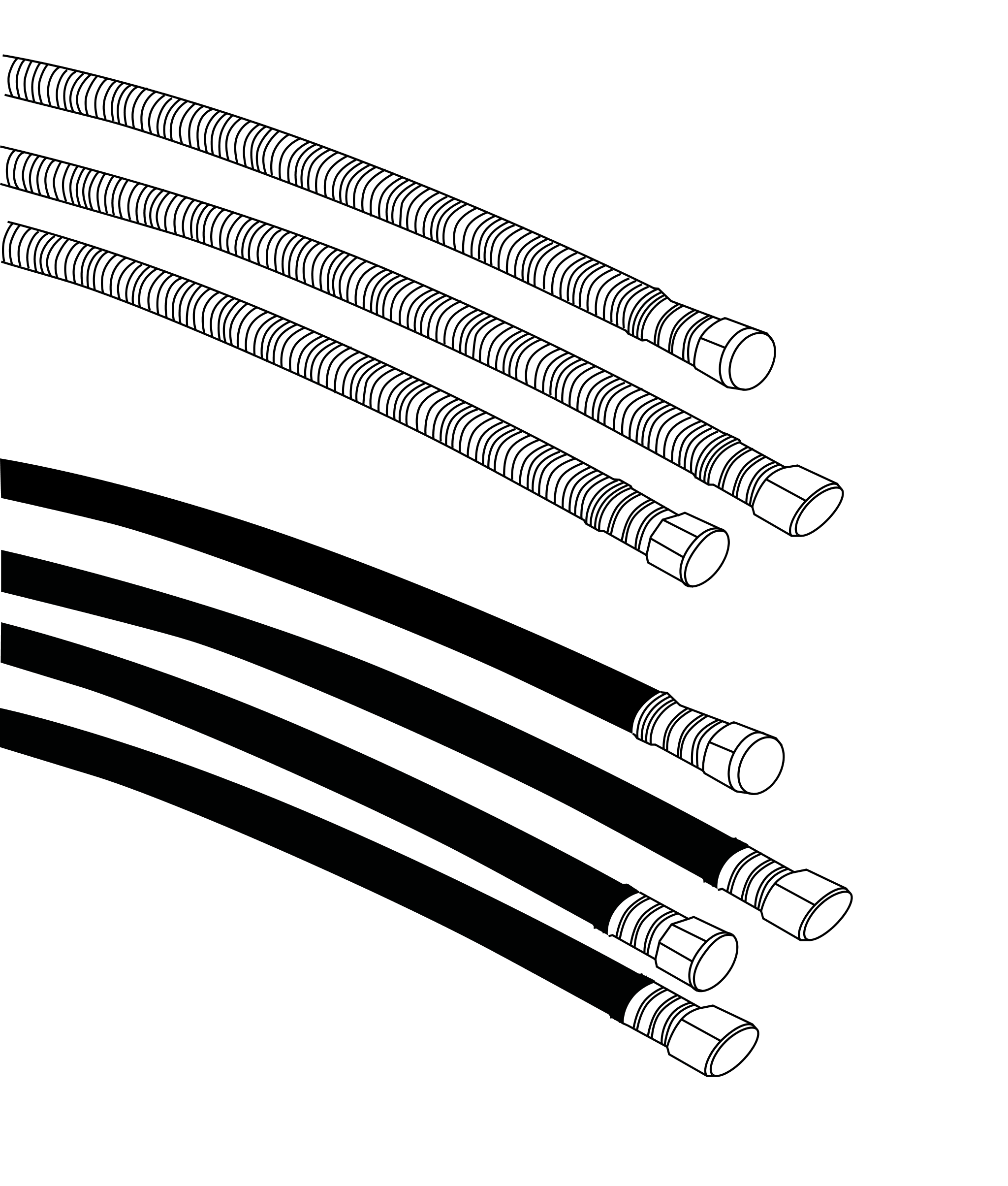

Hydraulic hoses
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| - | HEAVY DUTY CONNECTION HOSES WITH STEEL SPRING PROTECTION | 1 | ||||
| - | HEAVY DUTY CONNECTION HOSES WITH STEEL SPRING PROTECTION | 1 | ||||
| - | STANDARD CONNECTION HOSES | 1 | ||||
| - | HEAVY DUTY CONNECTION HOSES WITH STEEL SPRING PROTECTION | 1 | ||||
| - | HEAVY DUTY CONNECTION HOSES WITH STEEL SPRING PROTECTION | 1 | ||||
| 3363116917 | HYDRAULIC HOSE, I.D. 12 (0.47"), both ends M 22 x 1.5, conical seal 24º, length 1000 mm (39.4 in.) | 1 | ||||
| 3363115422 | HYDRAULIC HOSE, I.D. 12 (0.47"), both ends M 22 x 1.5, conical seal 24º, length 1500 mm (59.05 in.) | 1 | ||||
| 3361353551 | HYDRAULIC HOSE, I.D. 12 (0.47"), both ends M22 x 1.5, conical seal 24º, length 1750 mm (69 in.) | 1 | ||||
| 3363085946 | HYDRAULIC HOSE, I.D. 12 (0.47"), both ends M22 x 1.5, conical seal 24º, length 2100 mm (83 in.) | 1 | ||||
| - | STANDARD CONNECTION HOSES | 1 | ||||
| - | STANDARD CONNECTION HOSES | 1 | ||||
| - | STANDARD CONNECTION HOSES | 1 | ||||
| 3363115420 | HYDRAULIC HOSE, I.D. 12 (0.47"), both ends M 22 x 1.5, conical seal 24º, length 1500 mm (59.05 in.) | 1 | ||||
| 3363491001 | HYDRAULIC HOSE, I.D. 12 (0.47"), both ends M22 x 1.5, conical seal 24º, length 1750 mm (69 in.) | 1 | ||||
| 3363115421 | HYDRAULIC HOSE, I.D. 12 (0.47"), both ends M 22 x 1.5, conical seal 24º, length 2100 mm (82.68 in.) | 1 | ||||
| 3363098017 | ADDITIONAL FITTING SET | 1 |
