Spare Parts

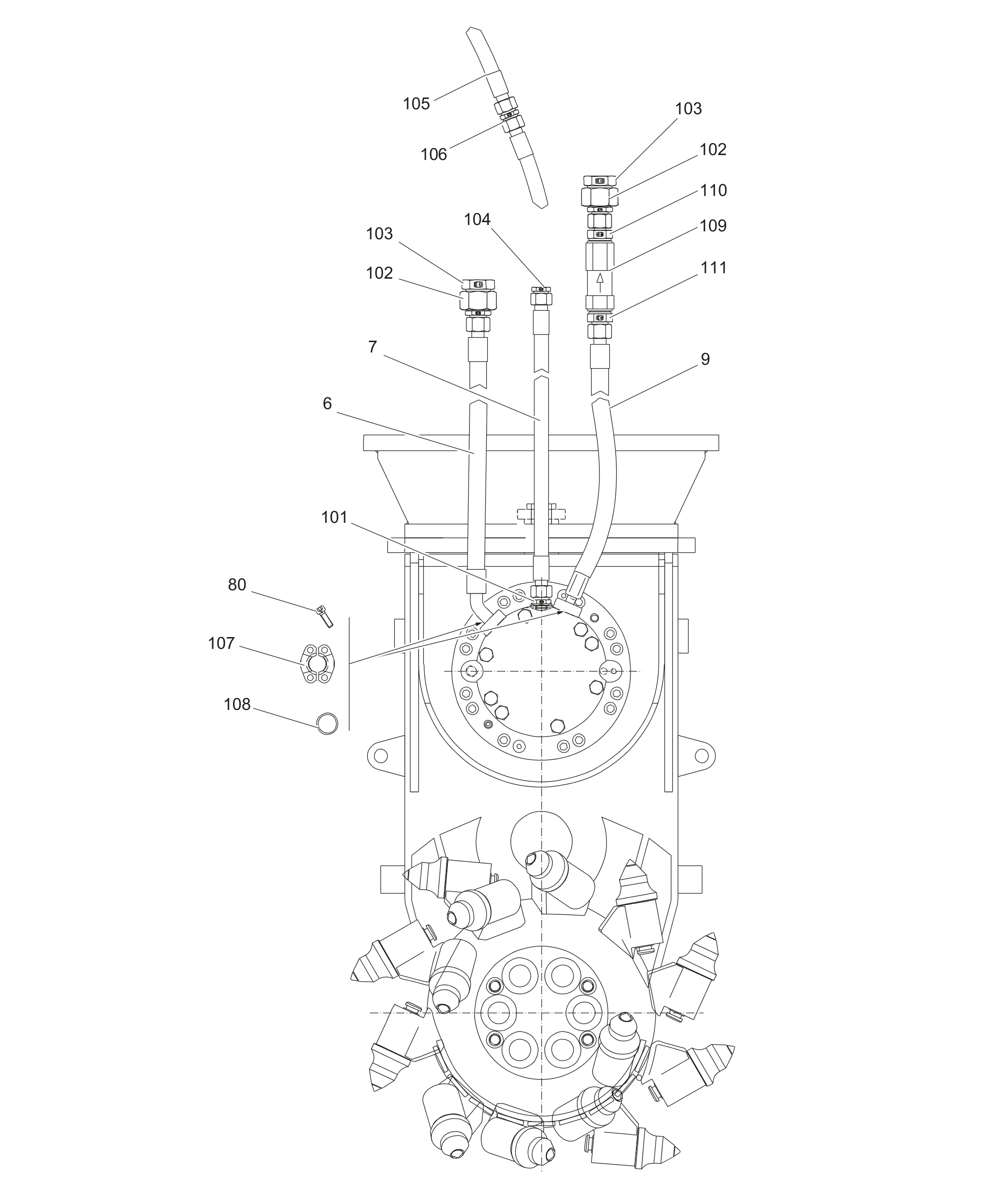

Transverse Drum Cutter, part 3
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3311001183 | Hose kit metric, 2 m (Standard) | 1 | ||||
| 3311000178 | Hydraulic hose | 1 | ||||
| 3311001100 | Hydraulic hose | 1 | ||||
| 3311000179 | Hydraulic hose | 1 | ||||
| 3311000628 | Allen screw | 8 | ||||
| 3311000628 | Allen screw | 8 | ||||
| 3311000628 | Allen screw | 8 | ||||
| 3311000098 | Fitting | 1 | ||||
| 3311000098 | Fitting | 1 | ||||
| 3311000081 | Fitting | 2 | ||||
| 3311000070 | Plug | 2 | ||||
| 3311000072 | Plug | 1 | ||||
| 3311002969 | Hydraulic hose | 1 | ||||
| 3311000071 | Fitting | 1 | ||||
| 3311000166 | Flange | 4 | ||||
| 3311000166 | Flange | 4 | ||||
| 3311000166 | Flange | 4 | ||||
| 3311000167 | O-ring | 2 | ||||
| 3311000167 | O-ring | 2 | ||||
| 3311000167 | O-ring | 2 | ||||
| 3311000182 | Check valve | 1 | ||||
| 3311000182 | Check valve | 1 | ||||
| 3311000182 | Check valve | 1 | ||||
| 3311000184 | Fitting | 1 | ||||
| 3311000183 | Fitting | 1 | ||||
| 3311003069 | Hose kit JIC, 2 m (Optional) | 1 | ||||
| 3311003064 | Hydraulic hose | 1 | ||||
| 3311003073 | Hydraulic hose | 1 | ||||
| 3311003063 | Hydraulic hose | 1 | ||||
| 3311003067 | Fitting | 1 | ||||
| 3311002221 | Plug | 2 | ||||
| 3311002742 | Plug | 1 | ||||
| 3311003066 | Hydraulic hose | 1 | ||||
| 3311002223 | Fitting | 1 | ||||
| 3311002224 | Fitting | 1 | ||||
| 3311002225 | Fitting | 1 | ||||
| 3311003885 | Hose kit BSP, 2 m (Optional) | 1 | ||||
| 3311003873 | Hydraulic hose | 1 | ||||
| 3311003875 | Hydraulic hose | 1 | ||||
| 3311003876 | Hydraulic hose | 1 | ||||
| 3311003877 | Plug | 2 | ||||
| 3311003878 | Plug | 1 | ||||
| 3311004254 | Hydraulic hose | 1 | ||||
| 3311003880 | Fitting | 1 | ||||
| 3311003881 | Fitting | 1 | ||||
| 3311003882 | Fitting | 1 |
