Spare Parts

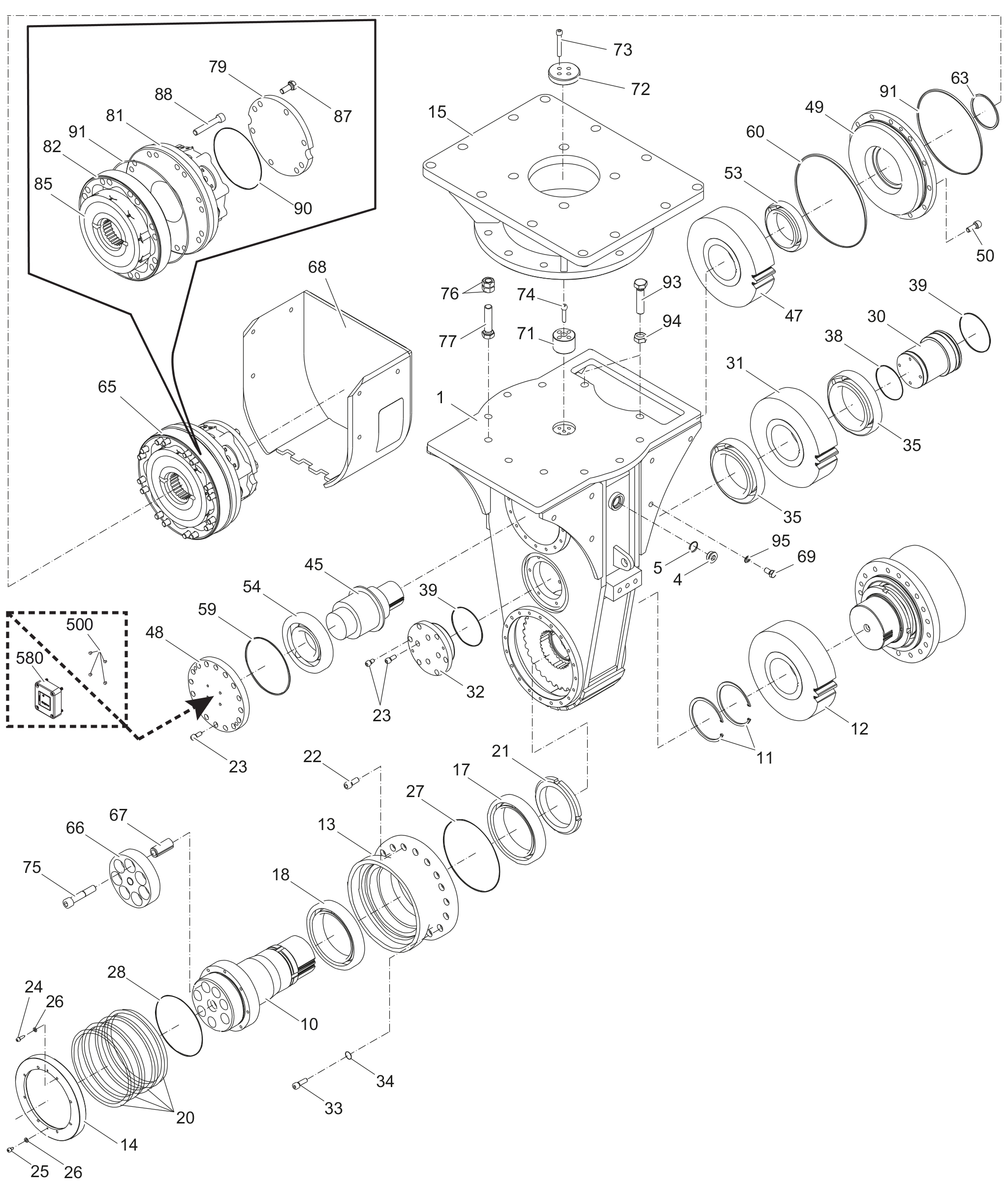

Transverse Drum Cutter, part 1
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3311000367 | Gear housing | 1 | ||||
| 3311000631 | Plug | 2 | ||||
| 3311001071 | Seal | 2 | ||||
| 3311002774 | Output shaft | 2 | ||||
| 3311000634 | Lock ring | 2 | ||||
| 3311000369 | Output cogwheel | 1 | ||||
| 3311002752 | Flange | 2 | ||||
| 3311002775 | Sealing cover | 2 | ||||
| 3311000945 | Rotatable upper part | 1 | ||||
| 3311000635 | Tapered roller bearing | 2 | ||||
| 3311002740 | Tapered roller bearing | 2 | ||||
| 3311001353 | Seal | 2 | ||||
| 3311000372 | Shaft nut | 2 | ||||
| 3311000630 | Allen screw | 40 | ||||
| 3311000638 | Allen screw | 26 | ||||
| 3311001079 | Allen screw | 16 | ||||
| 3311002495 | Allen screw | 4 | ||||
| 3311000641 | Usit-ring | 20 | ||||
| 3311000642 | O-ring | 2 | ||||
| 3311002798 | O-ring | 2 | ||||
| 3311000373 | Bolt | 1 | ||||
| 3311000374 | Spur gear | 1 | ||||
| 3311000375 | Cover | 1 | ||||
| 3311000591 | Allen screw | 4 | ||||
| 3311001347 | Pair of lock washers | 4 | ||||
| 3311000643 | Cylindrical roller bearing | 2 | ||||
| 3311000644 | O-ring | 1 | ||||
| 3311000645 | O-ring | 2 | ||||
| 3311000376 | Drive shaft | 1 | ||||
| 3311000378 | Spur gear drive | 1 | ||||
| 3311000379 | Cover | 1 | ||||
| 3311000381 | Flange (motor) | 1 | ||||
| 3311000714 | Allen screw | 16 | ||||
| 3311000646 | Tapered roller bearing | 1 | ||||
| 3311000647 | Tapered roller bearing | 1 | ||||
| 3311000648 | O-ring | 1 | ||||
| 3311000649 | O-ring | 1 | ||||
| 3311000650 | Seal | 1 | ||||
| 3311000171 | Motor complete | 1 | ER 250 - 2 | |||
| 3311000172 | Hydraulic motor | 1 | ER 250 - 3 | |||
| 3311000173 | Hydraulic motor | 1 | ER 250 - 4 | |||
| 3311002776 | Cover | 2 | ||||
| 3311000847 | Clamping sleeve | 14 | ||||
| 3311000383 | Cover (motor) | 1 | ||||
| 3311000528 | Hexagon head screw | 6 | ||||
| 3311000385 | Centering pin | 1 | ||||
| 3311000386 | Plate (centering pin) | 1 | ||||
| 3311000741 | Allen screw | 4 | ||||
| 3311000703 | Allen screw | 1 | ||||
| 3311000653 | Allen screw | 14 | ||||
| 3311000662 | Hexagonal nut | 18 | ||||
| 3311000659 | Hexagon head screw | 9 | ||||
| 3311000240 | Overpressure plate (motor) | 1 | ||||
| 3311000187 | Distribution housing (motor) | 1 | ||||
| 3311000174 | Cam ring | 1 | ER 250 - 2 | |||
| 3311000175 | Cam ring | 1 | ER 250 - 3 | |||
| 3311000176 | Cam ring | 1 | ER 250 - 4 | |||
| 3311000177 | Cylinder block | 1 | ||||
| 3311000528 | Hexagon head screw | 8 | ||||
| 3311000627 | Allen screw | 16 | ||||
| 3311000558 | O-ring | 1 | ||||
| 3311000559 | O-ring | 2 | ||||
| 3311000660 | Hexagon head screw | 2 | ||||
| 3311000667 | Lock nut | 3 | ||||
| 3311000540 | Pair of lock washers | 6 | ||||
| 3315439145 | PROTECTIVE PLUG HATCON | 4 | only for drum cutters without HATCON | |||
| - | HATCON | 1 | only for drum cutters with HATCON / see separate chapter |
