Rotation device kit HC 308 s/n 1 -, BGF000471 -, HC 409 s/n 1 -, BGF000807 -, HC 920 s/n 920024 -, BGF000808 -, HC 350 s/n BGF041759 - BGF100472, HC 450 s/n BGF041759 - BGF101535, HC 850 s/n BGF043500 - BGF102280

HC 850, HC 850 R s/n BES170668 -
Base plate (8) BC 2100, MB 750, MB 1000, MG 800, HC 850, HC 920, CB 750, CB 950, CC 650, CC 950, DC 600, DC 1000
Base plate (20) BC 2100, MB 750, MB 1000, MG 800, HC 850, HC 920, CB 750, CB 950, CC 650, CC 950, DC 600, DC 1000
Rotation device kit HC 308 s/n 1 -, BGF000471 -, HC 409 s/n 1 -, BGF000807 -, HC 920 s/n 920024 -, BGF000808 -, HC 350 s/n BGF041759 - BGF100472, HC 450 s/n BGF041759 - BGF101535, HC 850 s/n BGF043500 - BGF102280
Connection kit for rotation device HC 850 s/n BGB920301 - , BGF043500 - BGF102280, s/n BES132568 -
Rotation kit HC 850 s/n BGF102281 -, s/n DEQ176000 -, s/n BES132568 -
Rotation unit HC 850 s/n BGF102281 -, s/n DEQ176000 -, s/n BES132568 -
Hose/Fitting kit HC 850 s/n BGF102281 -, s/n DEQ176000 -, s/n BES132568 -
HC 850 s/n BGB920301 - BGF043499
HC 850 HC 850 R BES170668 - PDF
HC 850 HC 850 R BES132568 – BES169739 PDF

Spare Parts

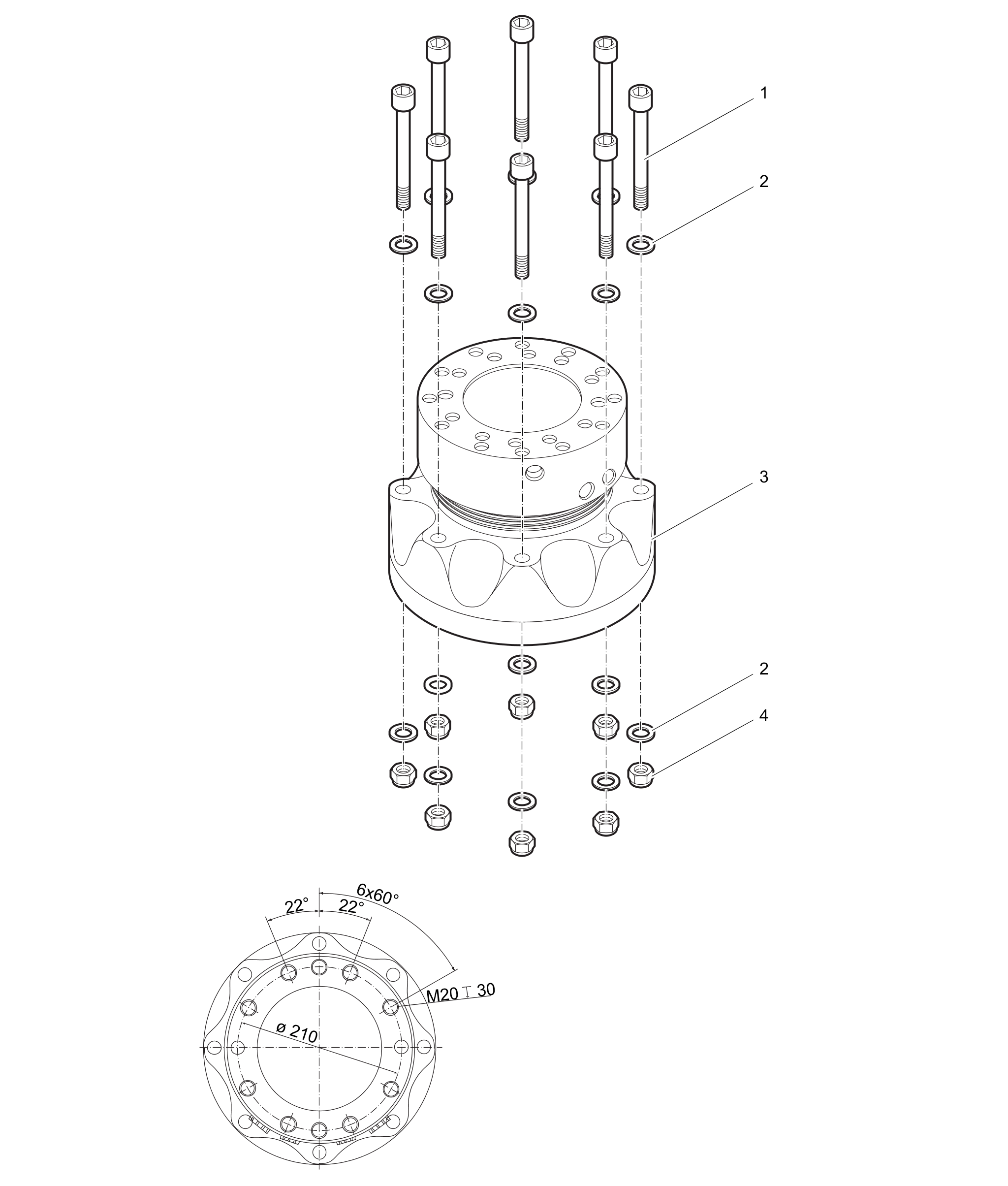

Rotation device kit 1826101644

Part number	Name	QTY	Remarks
3376100790	Allen screw	8
-	Pair of locking rings	16
-	Rotor	1
-	Hexagonal nut	8	Spanner size 14/24 mm, tightening torque 295 Nm (218 ft lbf)This document contains no safety instructions. For information on operating, servicing or repairing, the relevant Safety and operating instructions must be consulted at all costs. Please observe the safety instructions listed in the relevant Safety and operating instructions.
