Spare Parts

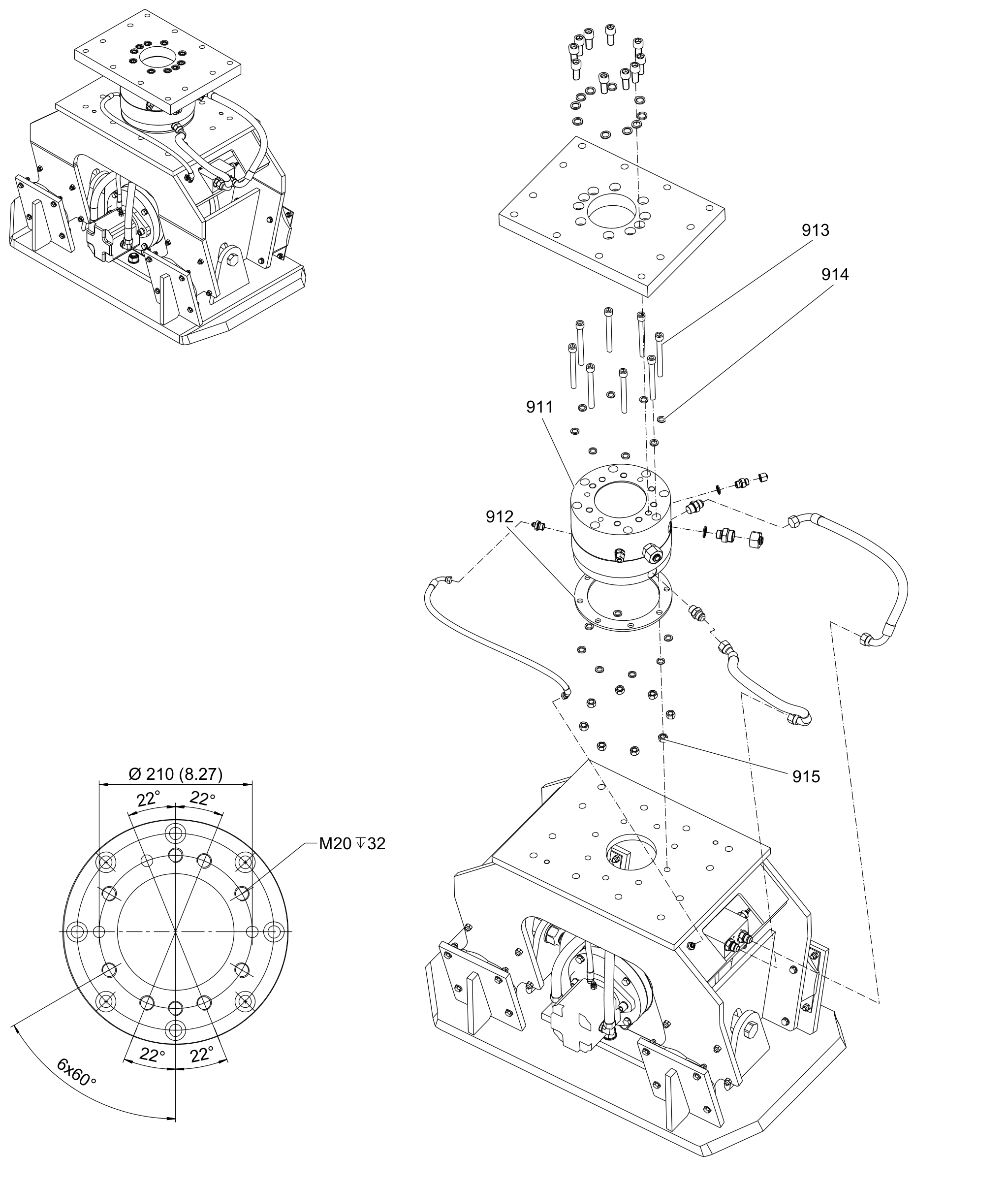

Rotation unit 1826101823

#		Part number	Name	QTY	Remarks	Information
		3376100987	ROTATION UNIT	1
		3376100990	SPACER	1
		3376100992	ALLEN SCREW	8
		3315019510	LOCK WASHER	16
		5730007580	HEXAGON NUT, M16 A2K	8	Spanner size 14/24 mm, tightening torque 295 Nm (218 ft lbf)This document contains no safety instructions. For information on operating, servicing or repairing, the relevant Safety and operating instructions must be consulted at all costs. Please observe the safety instructions listed in the relevant Safety and operating instructions.
