Mechanical

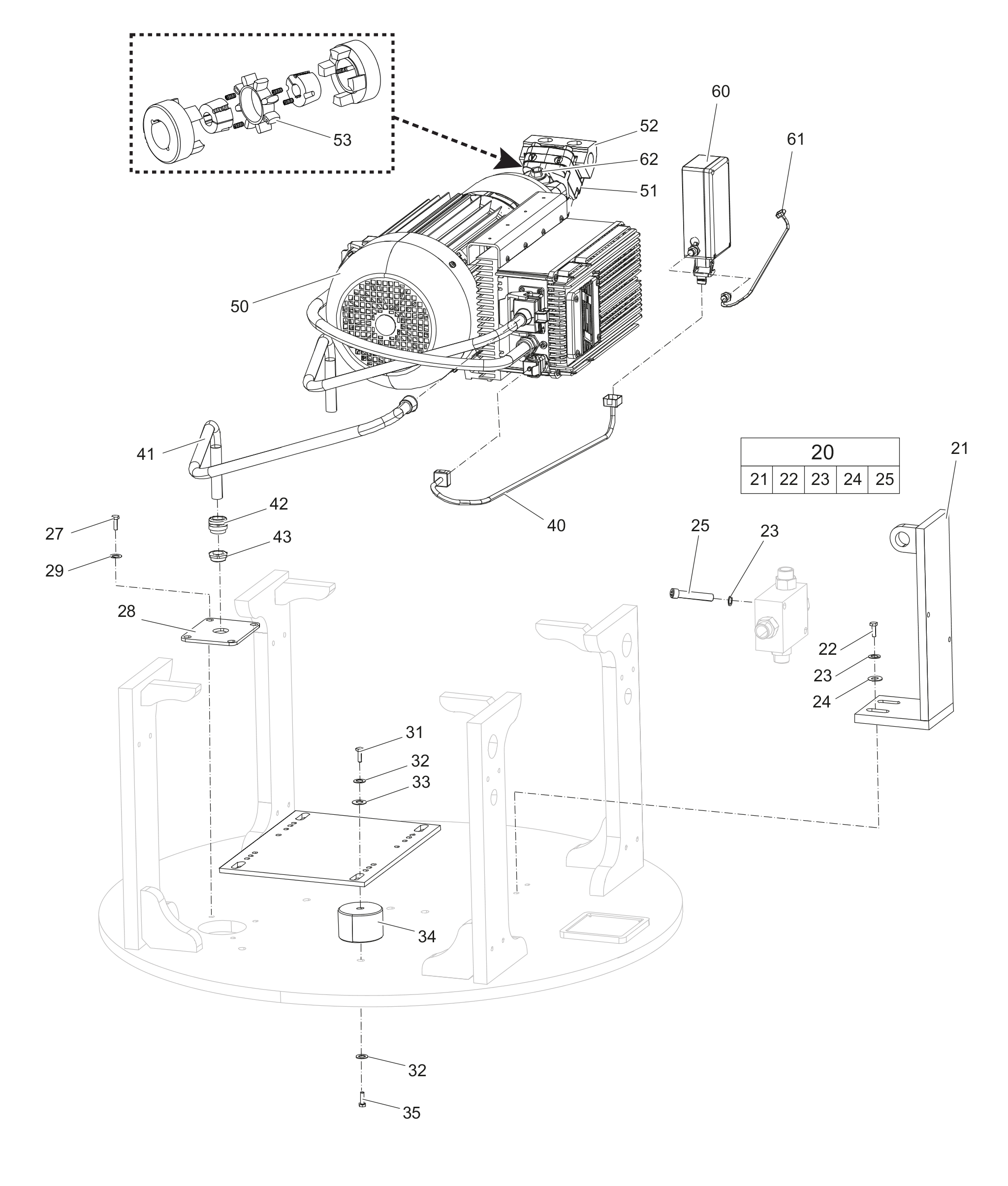

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3382060212 | Fastener complete | 1 | ||||
| - | FASTENER | 1 | ||||
| - | Fastener | 1 | ||||
| 3360103309 | Hexagon head bolt | 2 | ||||
| 3361850745 | PAIR OF LOCK WASHERS | 4 | ||||
| 3360203483 | Washer | 4 | ||||
| 3362060251 | Cylindrical bolt | 2 | ||||
| 3360103306 | Hexagon head bolt | 4 | ||||
| 3382060214 | Plate | 1 | ||||
| 3360433382 | Hexagon head bolt | 4 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 8 | ||||
| 3360203486 | Washer | 4 | ||||
| 3382060215 | Rubber isolator | 4 | ||||
| 3382060216 | Hexagon head bolt | 4 | ||||
| 3382060217 | Cable (Display/Generator) | 1 | ||||
| 3382060218 | Cable (Generator/Magnet plate) | 1 | ||||
| 3382060219 | Fitting | 1 | ||||
| 3382060220 | Locknut | 1 | ||||
| 3382060221 | Generator complete | 1 | ||||
| 3382060261 | Coupling | 1 | with item 53 | |||
| 3363126839 | Hydraulic motor | 1 | ||||
| 3382060305 | Coupling star | 1 | ||||
| 3382060263 | Display | 1 | ||||
| 3382060315 | Cable with plug | 1 | ||||
| 3382060252 | Fitting | 1 | for drain line |
