Mechanical

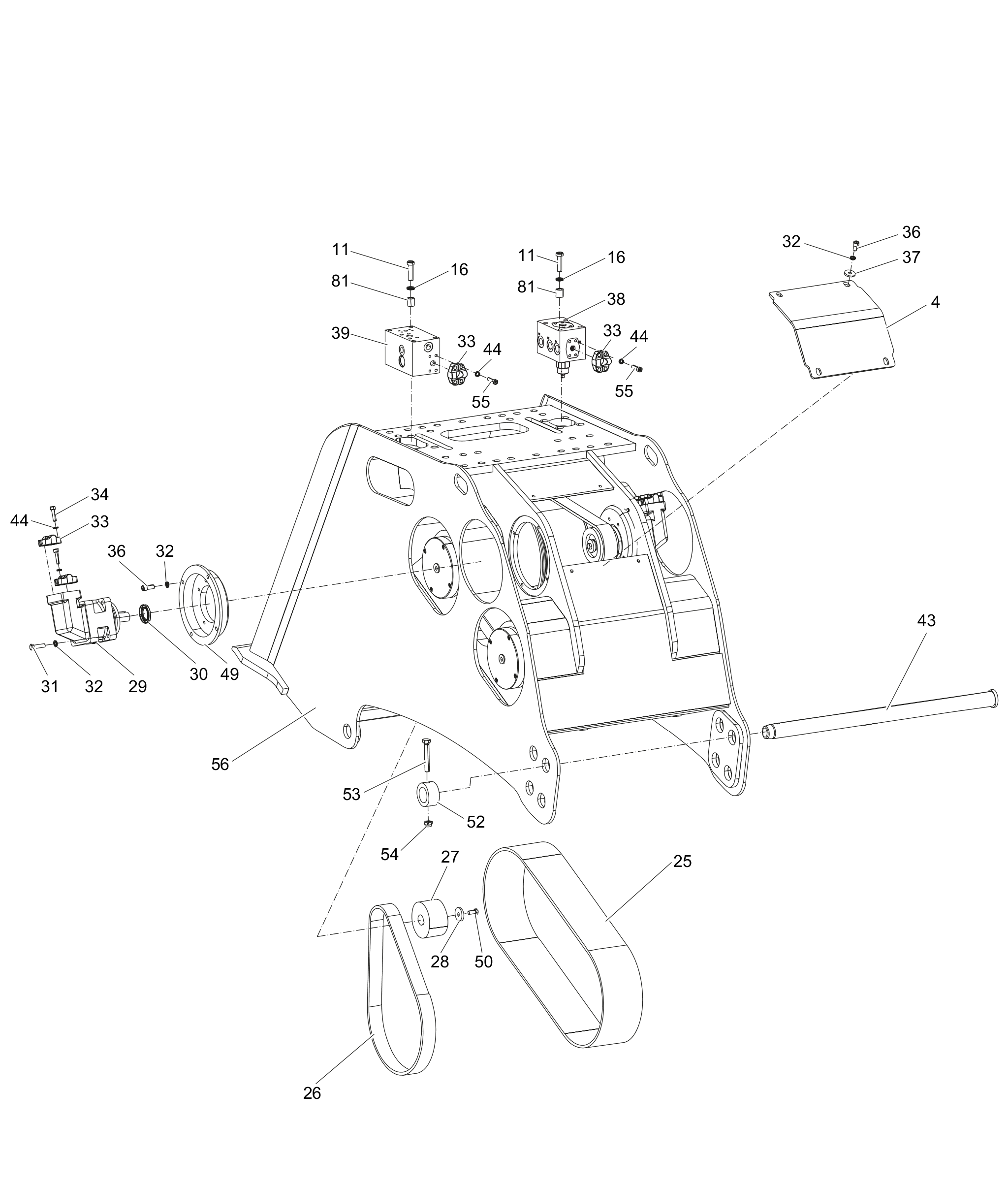

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363119905 | Gear Cover | 1 | ||||
| 3363118386 | Allen screw | 8 | ||||
| 3361333703 | LOCK WASHER | 8 | ||||
| 3363122157 | Main timing belt | 1 | ||||
| 3363122158 | Secondary timing belt | 2 | ||||
| 3363119909 | Gear | 2 | ||||
| 3363118403 | Washer | 2 | ||||
| 3363118404 | Hydraulic motor | 2 | ||||
| 3363118405 | Seal kit (Hydraulic motor) | 2 | ||||
| 3362328039 | ALLEN SCREW | 8 | ||||
| 3361850596 | PAIR OF LOCK WASHERS | 20 | ||||
| 3360995664 | FLANGE HALF | 12 | ||||
| 3363118433 | Allen screw | 16 | ||||
| 3363118434 | Allen screw | 12 | ||||
| 3363119917 | Washer | 4 | ||||
| 3363125160 | Flow valve | 1 | Working valve block | |||
| 3363118409 | Valve block | 1 | Return valve block | |||
| 3363119920 | Pin | 1 | ||||
| 3361850745 | PAIR OF LOCK WASHERS | 24 | ||||
| 3363119923 | Support | 2 | ||||
| 3363119924 | Hexagon head screw | 2 | ||||
| 3363119926 | Washer | 1 | ||||
| 3363119927 | Hexagon head screw | 1 | ||||
| 3363119928 | Hexagon nut | 1 | ||||
| 3363119929 | Allen screw | 8 | ||||
| 3363118417 | Housing | 1 | ||||
| 3363118472 | Spacer | 8 |
