Mechanical
Spare Parts

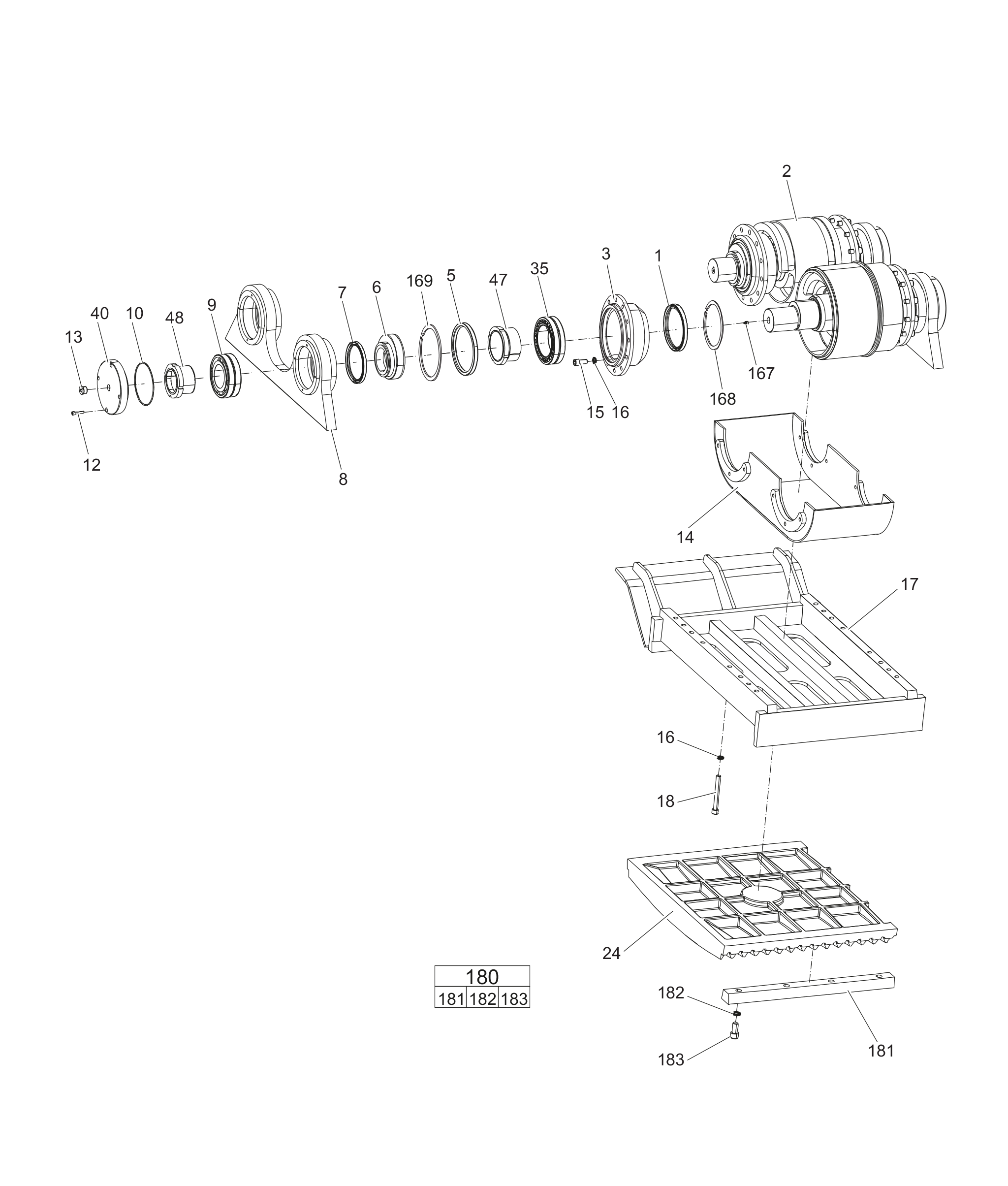

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363119881 | Seal | 4 | ||||
| 3363119882 | Drive shaft | 2 | ||||
| 3363126256 | Flange | 4 | ||||
| 3363119884 | Seal | 4 | ||||
| 3363119885 | Seal support | 4 | ||||
| 3363118385 | Seal | 4 | ||||
| 3363119887 | Bridge part | 2 | ||||
| 3363118392 | Bearing | 4 | ||||
| 3363118393 | Seal | 4 | ||||
| 0211132700 | CAP SCREW | 16 | ||||
| 3363118394 | Allen plug | 4 | ||||
| 3363119890 | Transmission housing | 1 | ||||
| 3363118382 | Allen screw | 40 | ||||
| 3361333703 | LOCK WASHER | 56 | ||||
| 3363119892 | Mobile support | 1 | ||||
| 3363118440 | Allen screw | 16 | ||||
| 3363118397 | Jaw | 1 | parallel | |||
| 3363119895 | Bearing | 4 | ||||
| 3363118410 | Cover | 4 | ||||
| 3363119897 | Sleeve | 4 | ||||
| 3363118414 | Sleeve | 4 | ||||
| 3363126834 | Grease nipple | 4 | ||||
| 3363126257 | Circlip | 4 | ||||
| 3363126258 | Circlip | 4 | ||||
| 3363118374 | Wedge complete | 1 | ||||
| 3363118398 | Wedge | 1 | ||||
| 3361850748 | LOCK WASHER | 4 | ||||
| 3363094902 | ALLEN SCREW | 4 |
