Mechanical
Spare Parts

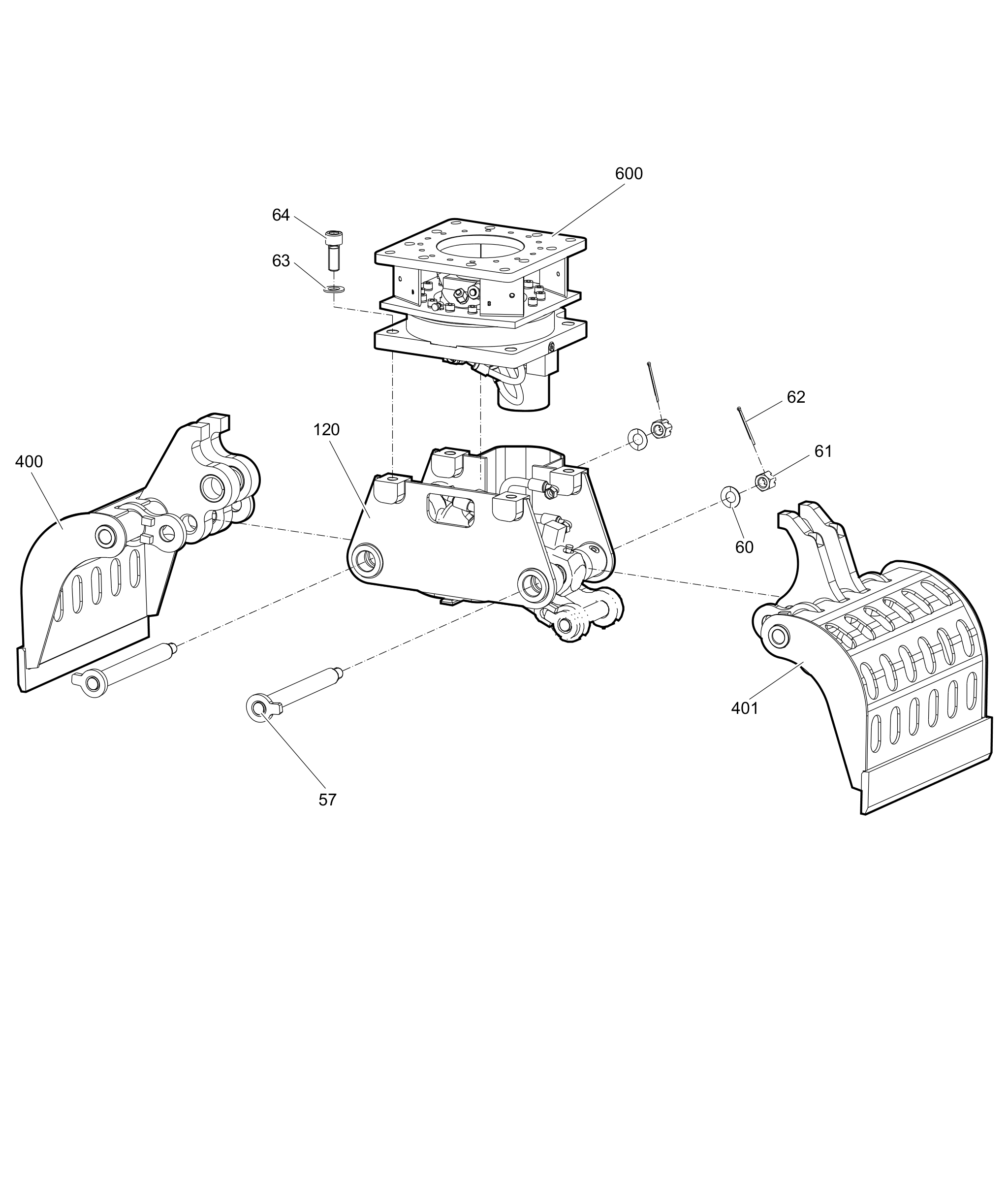

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363124508 | BOLT | 2 | ||||
| 3376100945 | DISC | 2 | ||||
| 0281136600 | CASTLE NUT | 2 | ||||
| 0111131400 | SPLIT COTTER PIN | 2 | ||||
| 0300027413 | WASHER | 4 | ||||
| 3363094902 | ALLEN SCREW | 4 | ||||
| 3363124999 | HOUSING COMPLETE | 1 | see separate chapter | |||
| 3363127365 | GRAPPLE LEAF COMPLETE (left) | 1 | see separate chapter | |||
| 3363127366 | GRAPPLE LEAF COMPLETE (right) | 1 | see separate chapter | |||
| 3363125200 | UPPER PART | 1 | see separate chapter |
