Mechanical
Spare Parts

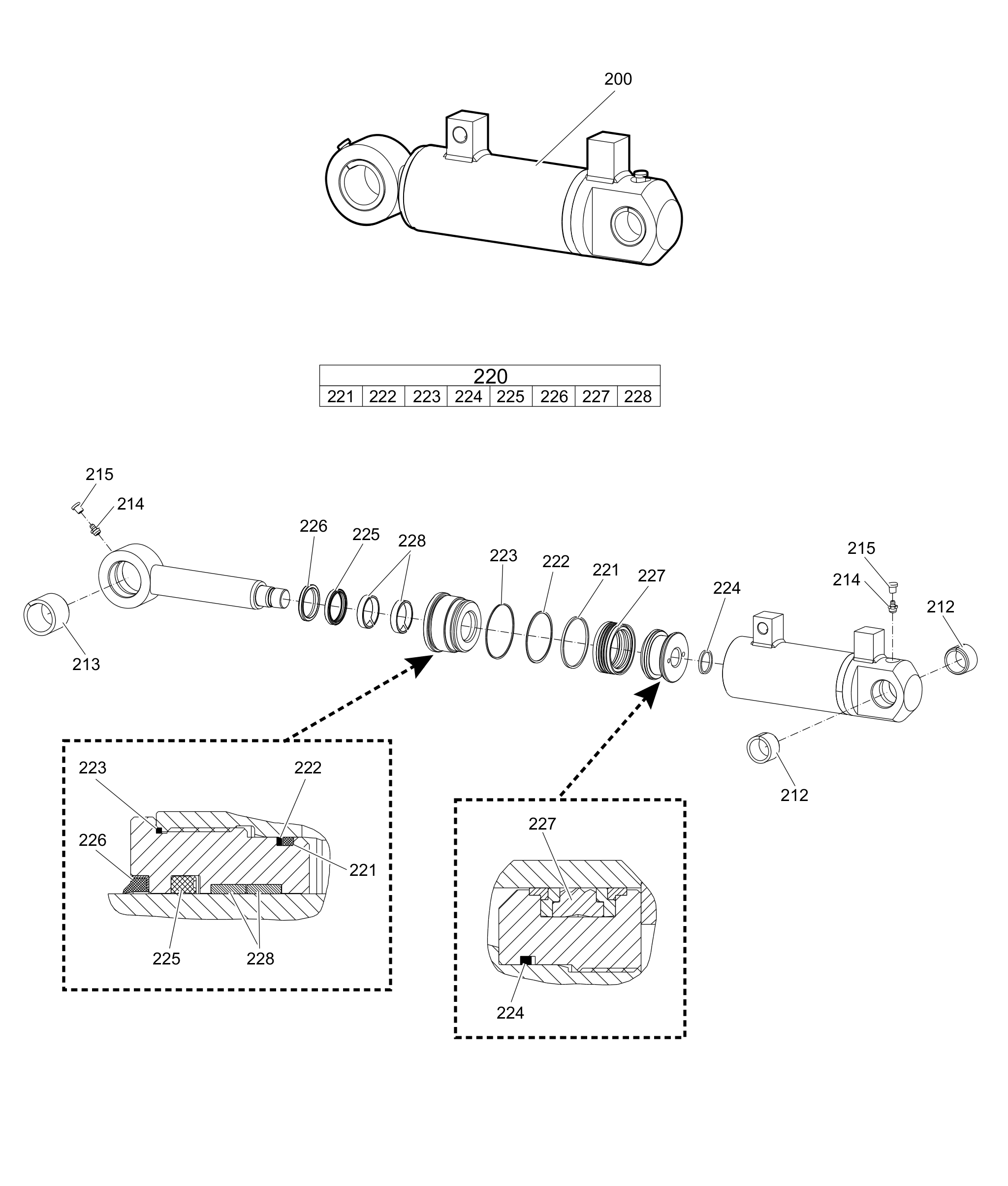

Hydraulic cylinder complete
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363125003 | HYDRAULIC CYLINDER complete | 1 | with item 212 - 228 | |||
| 3376100943 | BEARING BUSH | 2 | ||||
| 3362328008 | BEARING BUSH | 1 | ||||
| 3360209834 | GREASE NIPPLE | 2 | ||||
| 3363087600 | CAP | 2 | ||||
| 3376678150 | SEAL KIT (Hydraulic cylinder) | 1 | ||||
| 3363124880 | O-RING | 1 | ||||
| 3363124881 | BACK-UP RING | 1 | ||||
| 3363124879 | O-RING | 1 | ||||
| 3363124883 | O-RING | 1 | ||||
| 3363124876 | SEAL | 1 | ||||
| 3363124882 | WIPER | 1 | ||||
| 3363124877 | SEAL | 1 | ||||
| 3363124878 | SLIDING RING | 2 |
