Options / accessories
Spare Parts

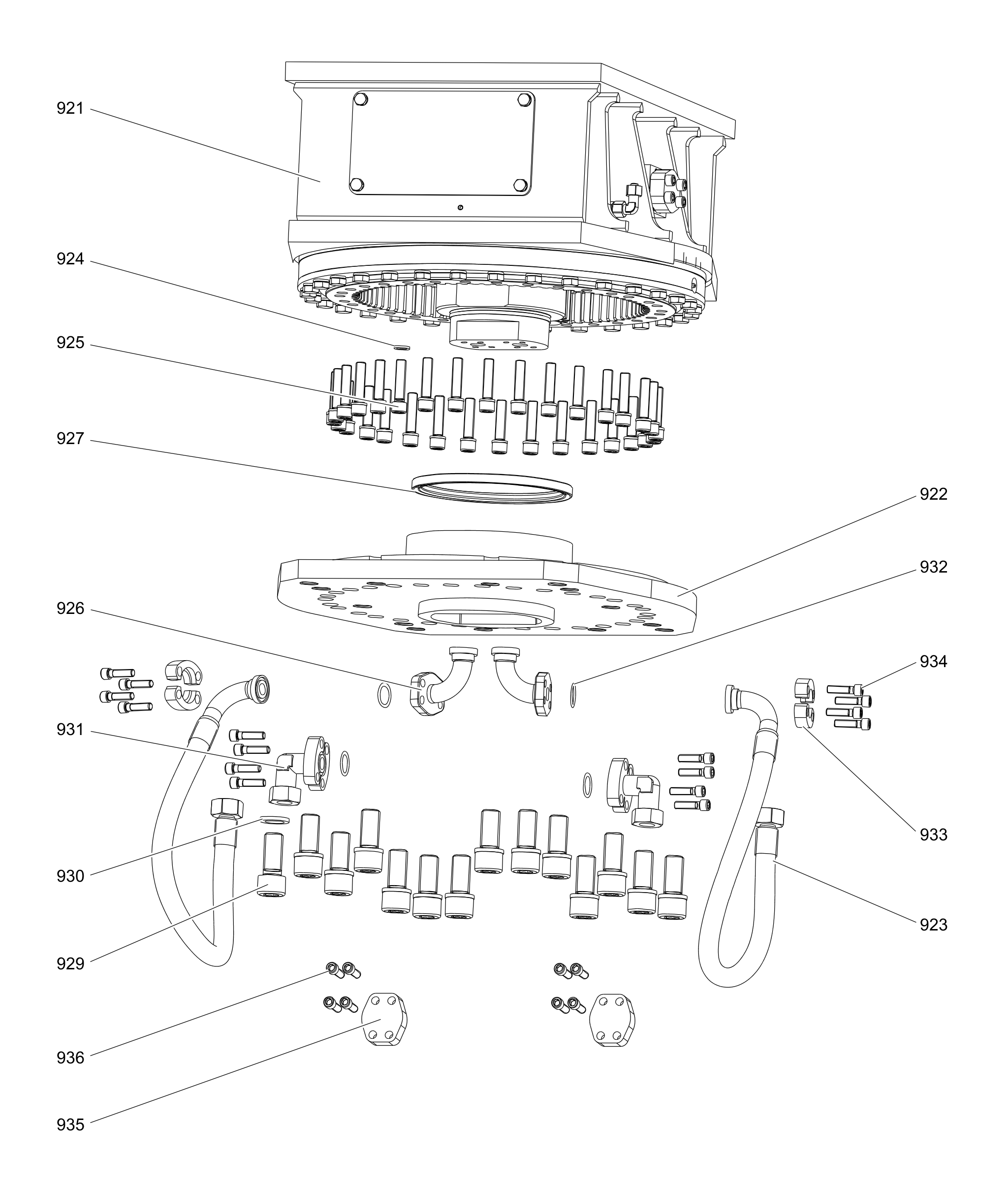

| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363113132 | Rotation kit | 1 | ||||
| 3363100235 | Upper part complete | 1 | ||||
| 3363111927 | Plate | 1 | ||||
| 3363112004 | Hydraulic hose | 2 | ||||
| 3361333703 | LOCK WASHER | 32 | ||||
| 3363034481 | ALLEN SCREW | 32 | ||||
| 3363093797 | Connection | 2 | ||||
| 3362267680 | Rotary shaft seal | 1 | ||||
| 3360478750 | ALLEN SCREW | 14 | ||||
| 3361850747 | PAIR OF LOCK WASHERS | 14 | ||||
| 3362263593 | FITTING complete | 2 | ||||
| 3360314370 | O-RING | 4 | ||||
| 3361853208 | FLANGE HALF | 4 | ||||
| 3360026513 | ALLEN SCREW | 16 | ||||
| 3363034040 | BLIND FLANGE | 2 | ||||
| 3360026512 | ALLEN SCREW | 8 |
