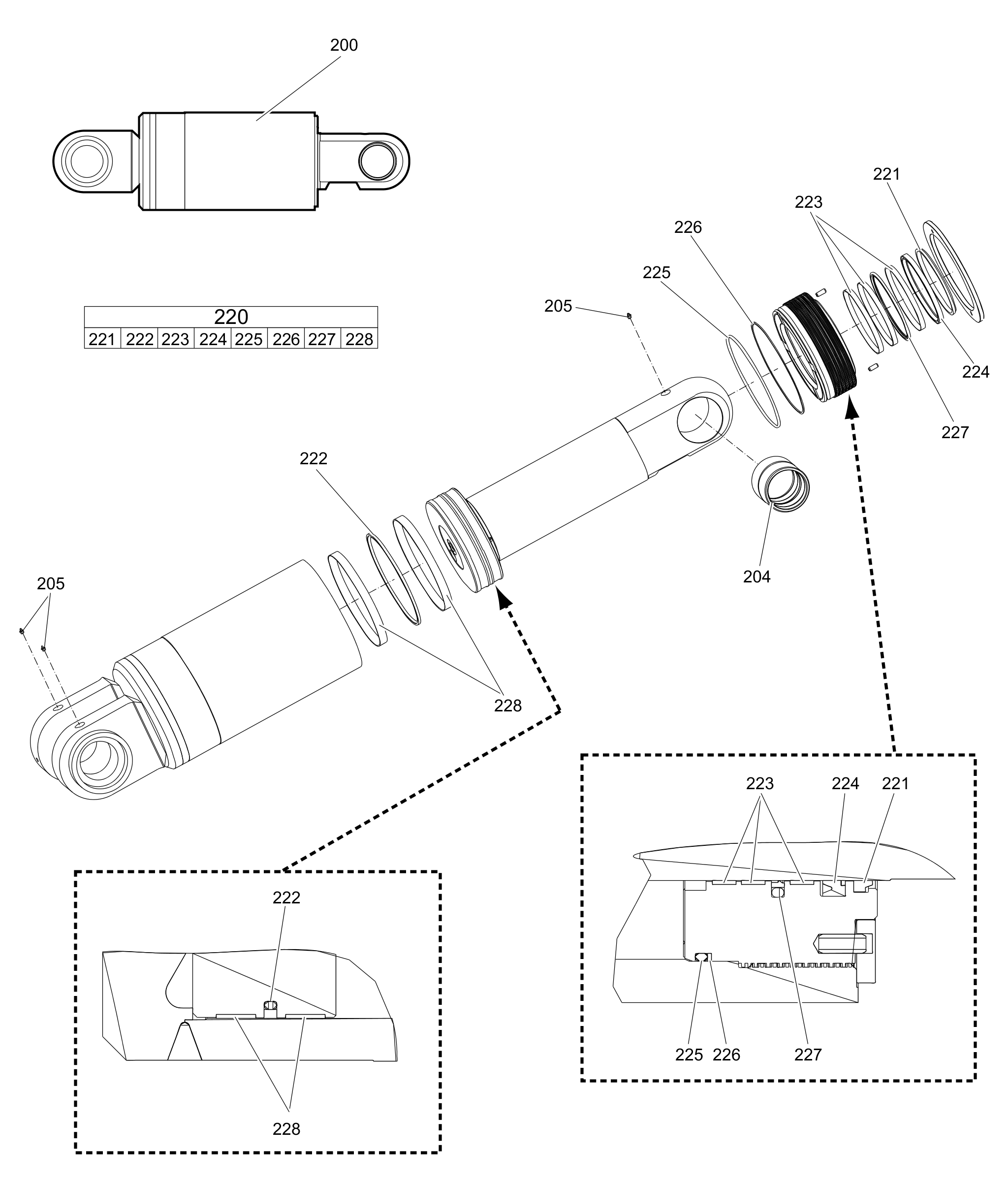

Hydraulic cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363123204 | HYDRAULIC CYLINDER, complete | 2 | with item 204 - 228 | |||
| 3363109929 | CLAMPING BUSH | 2 | ||||
| 3360209834 | GREASE NIPPLE | 6 | ||||
| 3363103698 | SEAL KIT (Hydraulic cylinder) | 2 | ||||
| 3363109971 | WIPER | 1 | ||||
| 3363125119 | SEAL | 1 | ||||
| 3363123926 | GUIDE RING | 3 | ||||
| 3363109972 | SEAL | 1 | ||||
| 3363123867 | O-RING | 1 | ||||
| 3363103699 | BACK-UP RING | 1 | ||||
| 3363125124 | SEAL | 1 | ||||
| 3363125116 | GUIDE RING | 2 |
