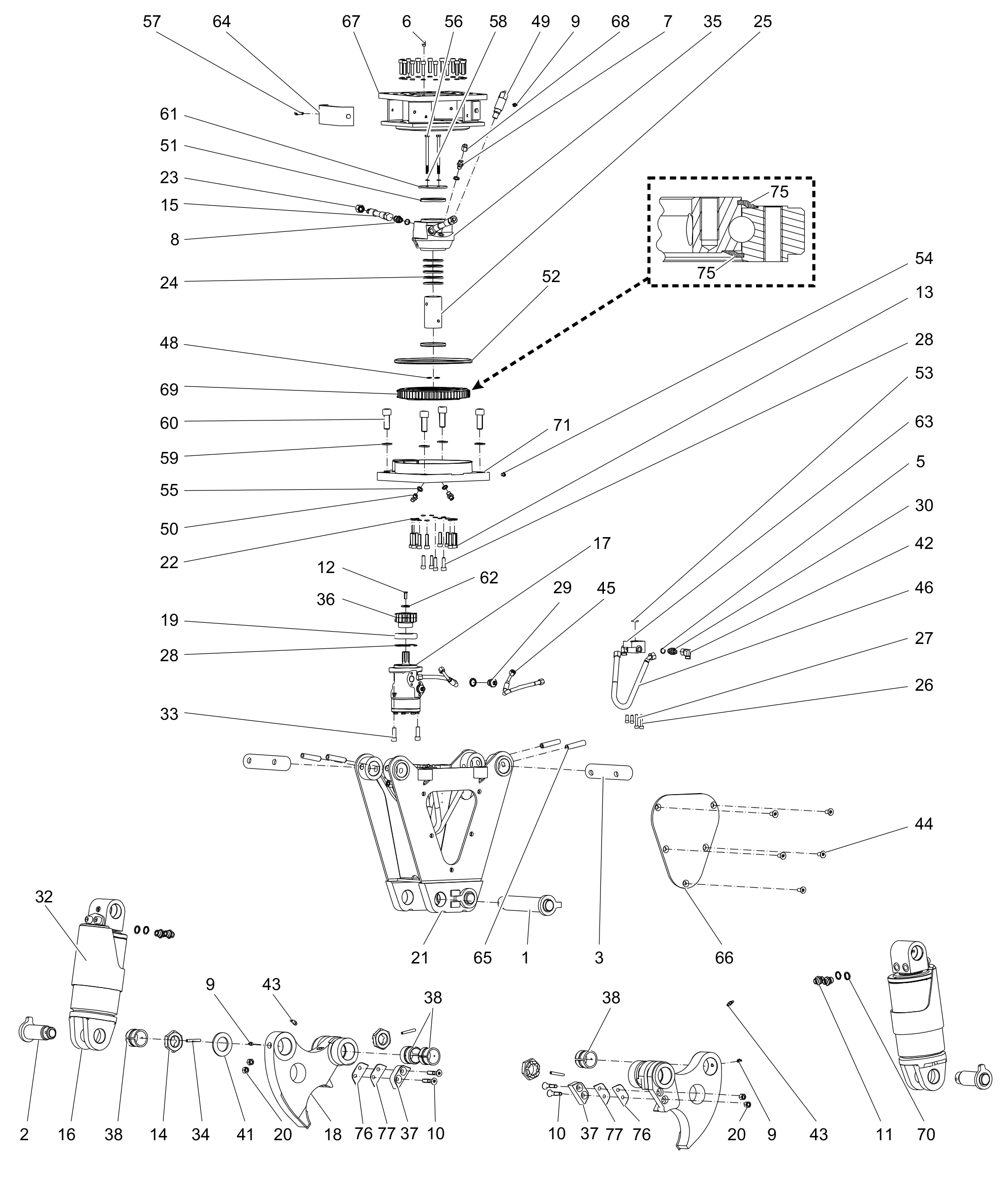

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3376674046 | Bolt | 2 | ||||
| 3376674049 | Bolt | 2 | ||||
| 3376674052 | Bolt | 2 | ||||
| 3377016375 | SEAL-RING - Bounded seal - Oil outlet 3/8 USS | 6 | ||||
| 3376100738 | GREASE NIPPLE | 1 | ||||
| 3376100921 | FITTING | 2 | ||||
| 3360478333 | FITTING | 2 | ||||
| 3360209834 | GREASE NIPPLE | 3 | ||||
| 0216110035 | HEX SOCK. SCREW | 4 | ||||
| 0580001588 | PIPE COUPLING | 4 | ||||
| 4700513013 | COUNTERSUNK SCREW | 1 | ||||
| 4700508045 | ALLEN SCREW | 28 | ||||
| 3376100855 | CASTLE NUT | 4 | ||||
| 3376100985 | Hydraulic hose | 2 | ||||
| 3363125996 | Hydraulic cylinder | 2 | ||||
| 3376100930 | Hydraulic motor | 1 | ||||
| 3363125989 | Cutter jaw | 2 | ||||
| 4700000115 | BALL BEARING | 1 | ||||
| 5730008013 | HEXAGON NUT | 4 | ||||
| 3363125995 | Housing | 1 | ||||
| 3361850745 | PAIR OF LOCK WASHERS | 32 | ||||
| 3376100873 | PLUG | 2 | ||||
| 3376100865 | SEAL | 5 | ||||
| 3376681044 | Rotor | 1 | ||||
| 3372005028 | ALLEN SCREW | 4 | ||||
| 3371820721 | ALLEN SCREW | 4 | ||||
| 3363070895 | ALLEN SCREW | 4 | ||||
| 3376100923 | FITTING | 2 | ||||
| 0580001469 | PIPE COUPLING | 4 | ||||
| 3376100863 | SNAP RING | 1 | ||||
| 3363127065 | PROTECTIVE SHEATH | 2 | ||||
| 0211140200 | CAP SCREW | 2 | ||||
| 0108136500 | SPRING PIN | 4 | ||||
| 3376681045 | Stator | 1 | ||||
| 3376679061 | PINION | 1 | ||||
| 3376674036 | Cutter blade | 2 | ||||
| 3376100981 | Bearing bush | 6 | ||||
| 3376674059 | Spacer ring | 2 | ||||
| 3376100983 | Fitting | 4 | ||||
| 0544110024 | GREASE NIPPLE | 2 | ||||
| 0216195707 | SCREW | 5 | ||||
| 3376100984 | Hydraulic hose | 2 | ||||
| 3376100982 | Hydraulic hose | 4 | ||||
| 0663211801 | O-RING | 4 | ||||
| 3376100916 | PRESSURE VALVE | 1 | ||||
| 3376545201 | FITTING | 2 | ||||
| 3376100914 | V-RING | 2 | ||||
| 3376100956 | SEAL | 1 | ||||
| 3376100891 | O-RING | 2 | ||||
| 3371817740 | PLUG | 1 | ||||
| 3377016129 | BOUNDED SEAL | 4 | ||||
| 0147111067 | HEXAGON HEAD SCREW | 2 | ||||
| 0147132503 | SCREW,HEX HEAD | 4 | ||||
| 3315019504 | LOCK WASHER | 2 | ||||
| 0300027413 | WASHER | 4 | ||||
| 3363094902 | ALLEN SCREW | 4 | ||||
| 3376681058 | Cover | 1 | ||||
| 3376678081 | WASHER | 1 | ||||
| 3376674042 | Connection block | 2 | ||||
| 3376674183 | Cover | 2 | ||||
| 3360206736 | SPRING PIN 60 x 80 mm | 4 | ||||
| 3363125997 | Cover | 1 | ||||
| 3363125200 | UPPER PART | 1 | ||||
| 3376100922 | PLUG | 2 | ||||
| 3376100931 | LIVE RING | 1 | ||||
| 3371805714 | U-SEAL RING 1/2 in. | 6 | ||||
| 3376679079 | LIVE RING BASE | 1 | ||||
| 3376678108 | SEAL KIT (Live ring) | 1 | ||||
| 3376674072 | Shim | 2 | ||||
| 3363125238 | Shim | 2 | 0.5 mm (0.02 in.) thick, as required |
