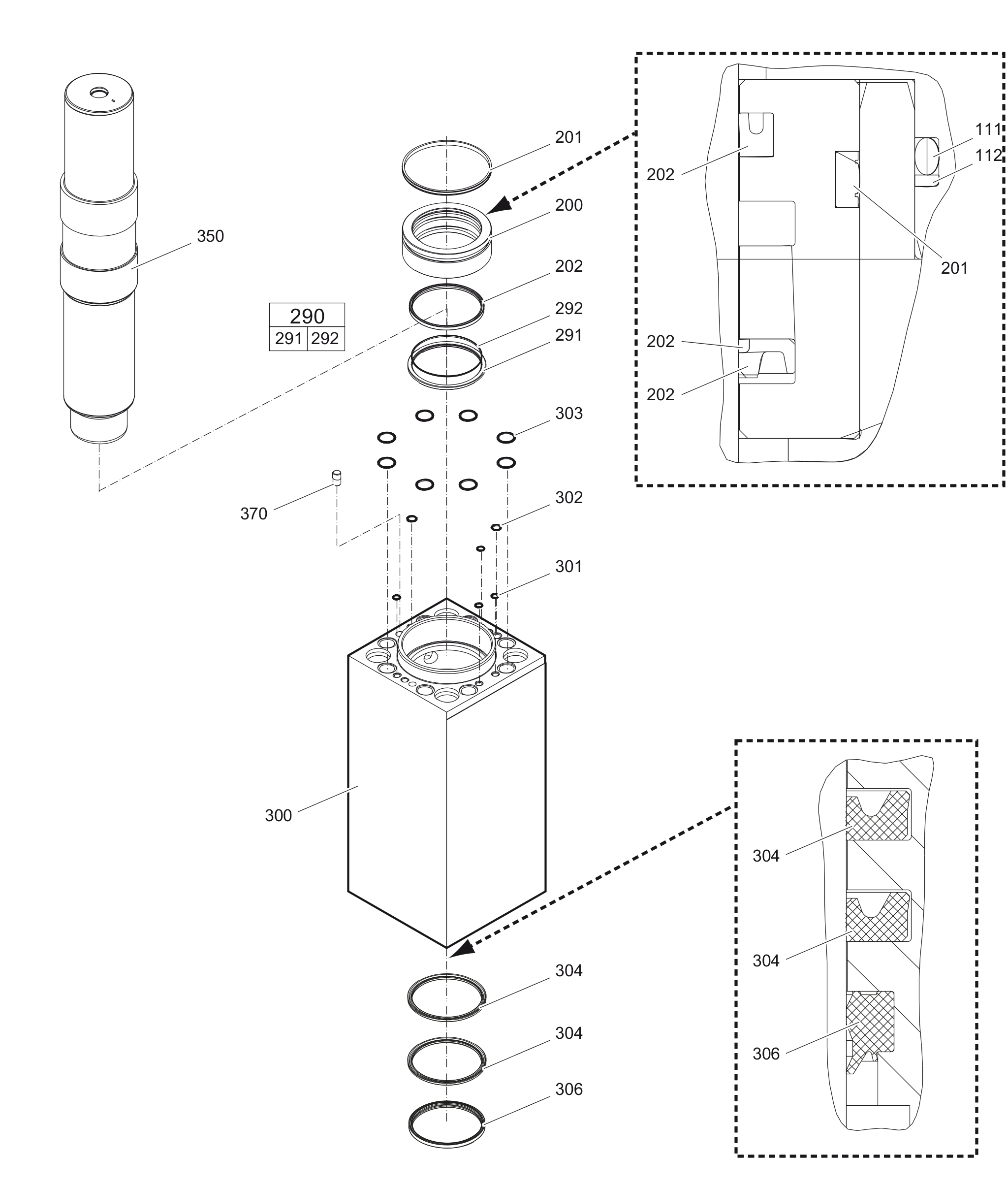

Percussion unit part 2: cylinder
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363112234 | Seal bush | 1 | ||||
| 3363098135 | Seal | 1 | ||||
| 3363094624 | Seal | 1 | ||||
| 3363094641 | Seal kit | 1 | ||||
| - | Seal | 1 | ||||
| - | Back-up ring | 1 | ||||
| 3363112355 | Cylinder | 1 | ||||
| 3362267583 | SEAL | 4 | ||||
| 3362267585 | SEAL | 2 | ||||
| 3362267281 | SEAL | 8 | ||||
| 3363122397 | Seal | 2 | ||||
| 3363094625 | Wiper | 1 | ||||
| 3363094600 | Percussion piston | 1 | ||||
| 3362268185 | Lock pin | 1 |
