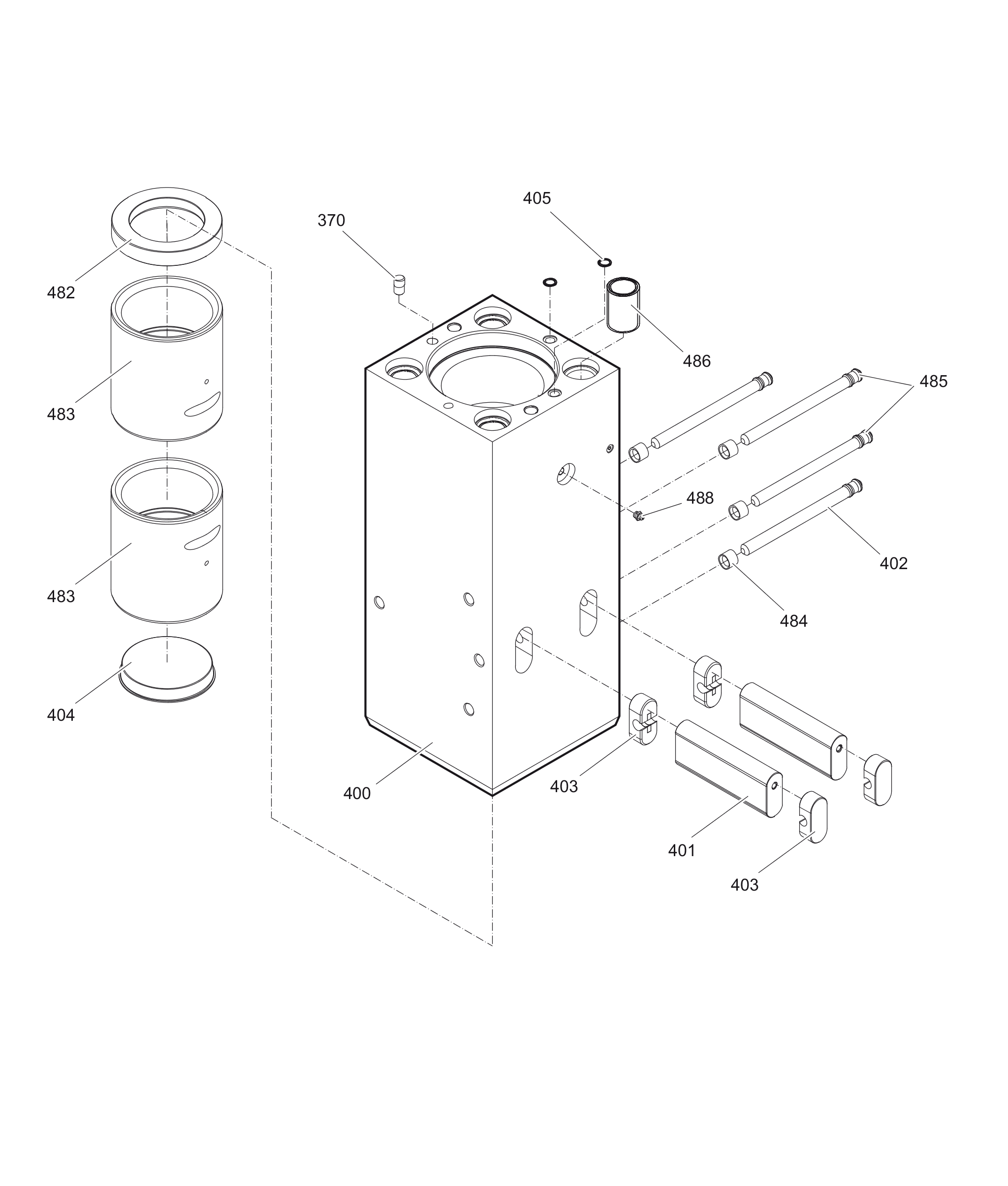

Percussion unit part 3: lower breaker part
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3362268185 | Lock pin | 1 | ||||
| 3363112244 | Lower breaker part | 1 | with item 482 - 488 | |||
| 3360981927 | Retainer bar | 2 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3362262925 | Plug | 4 | ||||
| 3363085471 | Protective cap | 1 | ||||
| 3362267585 | SEAL | 2 | ||||
| 3363097721 | Impact ring | 1 | ||||
| 3363112237 | Wear bush | 2 | ||||
| 3361854363 | LOCKING BUSH | 4 | ||||
| 3361854347 | Bolt | 2 | ||||
| 3363085499 | THREADED INSERT | 4 | ||||
| 3360433774 | GREASE NIPPLE | 1 |
