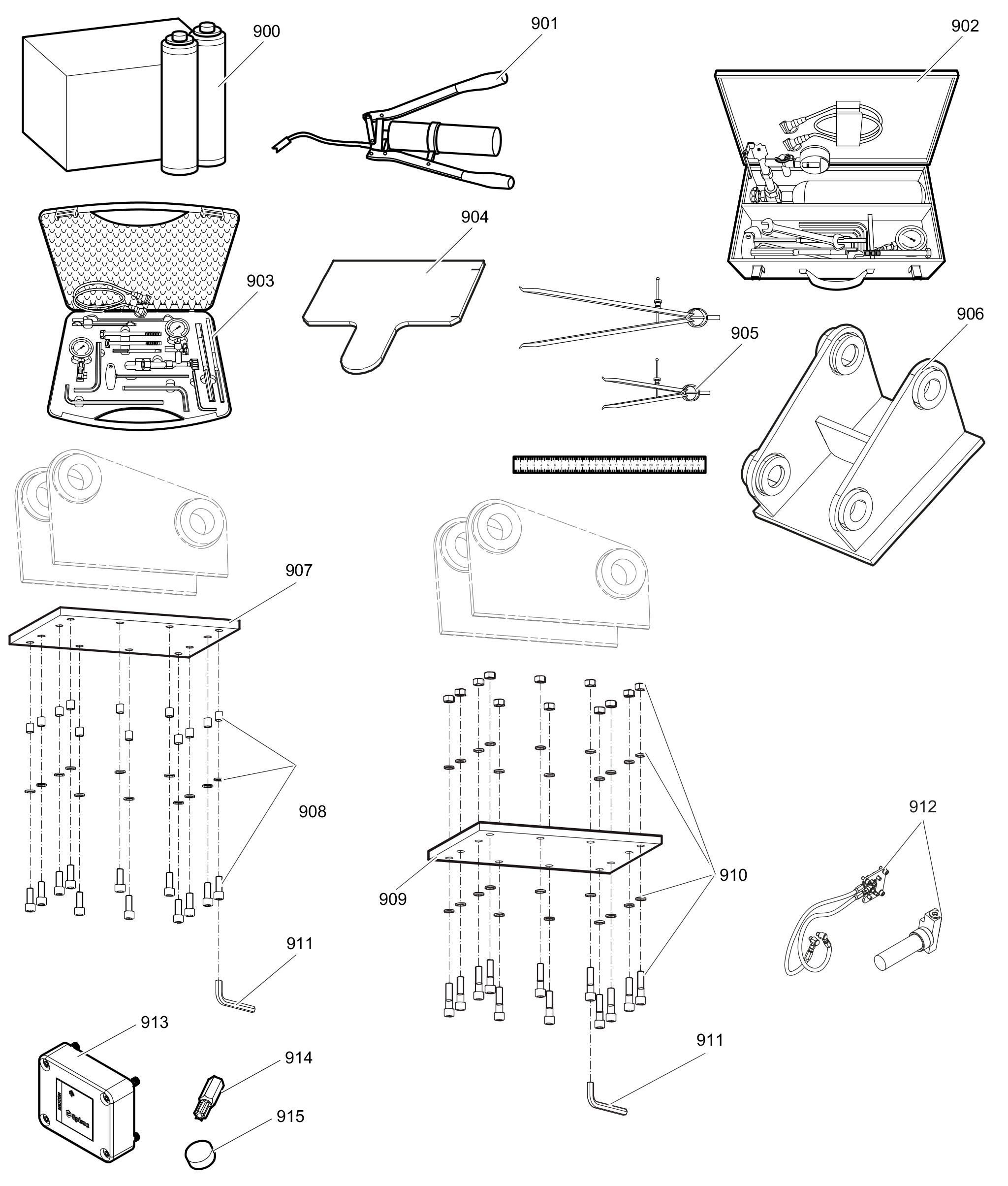

Spare Parts
| # | Part number | Name | QTY | Remarks | ||
|---|---|---|---|---|---|---|
| 3363122356 | BIO CHISEL PASTE CARTRIDGE, 12 x 550 g (1.2 lbs) | 1 | ||||
| 3363091200 | CHISEL PASTE CARTRIDGE, 12 x 500 g (1.1 lbs) | 1 | ||||
| 3363034567 | GREASE PUMP | 1 | ||||
| 3363491004 | CHARGING BOX with nitrogen cylinder, 2 l, 0.43 gal (0.53 US gal) | 1 | ||||
| 3363117786 | CHARGING BOX without nitrogen cylinder | 1 | ||||
| 3361852169 | TEST GAUGE LOWER WEAR BUSH | 1 | ||||
| 3363094952 | INSIDE CALLIPERS UPPER WEAR BUSH | 1 | ||||
| - | ADAPTER PLATE matching the carrier. Consult the authorized Customer Center/Dealer in your area. | 1 | ||||
| 3363099799 | BASE PLATE WITH THREADED INSERTS | 1 | ||||
| 3363087303 | BOLT KIT | 1 | ||||
| 3363100697 | BASE PLATE WITH THROUGH BORINGS | 1 | ||||
| 3363094575 | BOLT KIT | 1 | ||||
| 3360209253 | ALLEN KEY (19 mm) | 1 | ||||
| 3363117805 | AUTOMATIC LUBRICATION SYSTEM KIT | 1 | ||||
| 3315442500 | HATCON KIT 1 (3G) | 1 | ||||
| 3315442520 | HATCON KIT 1 (LTE) | 1 | ||||
| 3315439105 | SECURITY BIT HATCON | 1 | ||||
| 3315439106 | MAGNET HATCON | 1 |
